11M Class 3 S500MC Galvanized Steel Pole For Electrical Power Transmission Line

صورة كبيرة : 11M Class 3 S500MC Galvanized Steel Pole For Electrical Power Transmission Line

تفاصيل المنتج:

مكان المنشأ:	China
اسم العلامة التجارية:	Milky Way
إصدار الشهادات:	/BV/ISO
رقم الموديل:	Utility Galvanized Steel Pole For Electrical Power Transmission Line

شروط الدفع والشحن:

الحد الأدنى لكمية:	one 40 HQ
الأسعار:	negotiation
تفاصيل التغليف:	as per customer request
وقت التسليم:	usually 2 weeks after confirming
شروط الدفع:	T/T
القدرة على العرض:	300 pieces pole per day

اتصل

مفصلة وصف المنتج

Type:	straight pole, tensile pole, turn pole	Suit for:	electricity distribution
Shape:	conoid, multi-pyramidal, columniform, polygonal or conical	Welding standard:	AWS D1.1
tolerance:	+/-2%	Design Load in Kg:	300~ 1000 Kg applicated to 50cm from the to pole
تسليط الضوء:	power distribution poles,steel power poles , steel power poles

11M Class 3 S500MC Steel Standard Galvanized Steel Pole For Electrical Power Transmission Line

Specifications

Packed with good cartons and bubble wrap(the pole can be packed by bubble wrap,the lamp head can be packed by carton.Specific details according to customer's demands

Material	Q345
Height	5-15m,
Shape	Round,octagonal,polygonal
Brackets	Double brackets in the shape as customer's request
Base plate	Square or round in shape with slottes holes for anchor bolt
Length	Within 14m once forming without slip joint
Wall thickness	2.5mm-20mm
Galvanizing	Hot dip galvanization with thickness of 80-100µm average

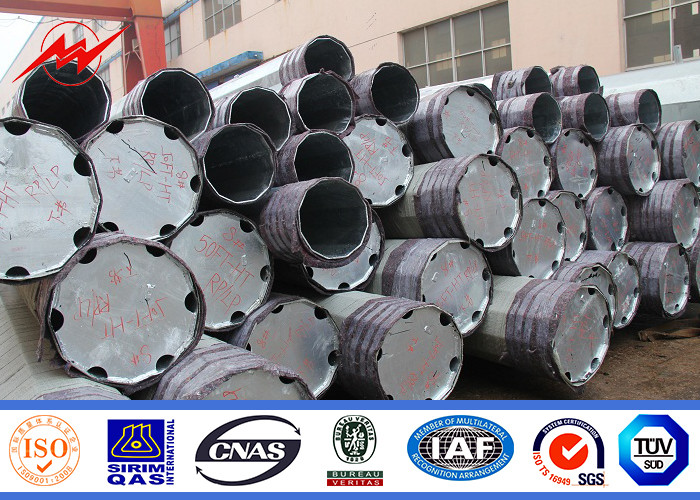

11M Class 3 S500MC Galvanized Steel Pole For Electrical Power Transmission Line 0

Base Plate Mounted:

12-sided pole shaft (40kN to 80kN)

16-sided pole shaft (100kN & 120kN)

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the pole base

Two lifting gussets on the base plate

Anchor bolts, templates, nuts & washers

Hot dip galvanised finish

Packaging detail

1. Protecion class: IP65

2. Light source: 100W-400W high-pressure sodium lamp

3. Rated voltage and frequency: 220V(±10%)/50Hz

4. Caliber: 60mm

5. Protecting class against eletric shock: Type I

6. Lamp in die-cast aluminum, coated with powder polyes ter after anti-corrosive treatment

7. A lamp body with a built-ray lens

8. Fasteners screws, all stainless steel

9. Applicable height: 6m-12m (according to customers' requirment)

10. Working environment:-35°C--+55°C

11. Long term life :more than 100,000 hours

12. Nast of steel, coated with powder polyester after hot galvanizing treatment

13. Lamp can adjust up,down or around and can be changed the projection angle

14. Environmentally friendly:instead of liquid mercury, easy to recycle

15. Applicable places: City Road,overpass,factory areas,bridge,harbour and etc.

Delivery detail

15-20 days received the deposit(Specific details according to actual situation)

It can be used on main highway,main street,commercial center,etc. outdoor place.

We can according to your design and drawings to produce. If you only need light pole,we are also provide for you.
The above configuration is for reference only. If you are interested in,please feel free to contact us for more information at anytime.

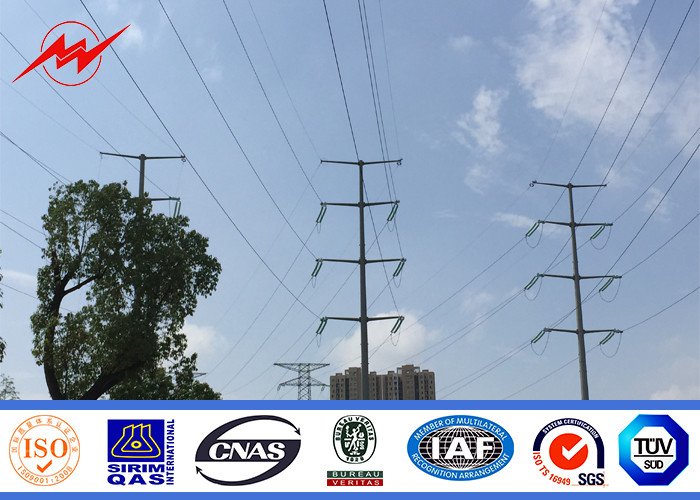

11M Class 3 S500MC Galvanized Steel Pole For Electrical Power Transmission Line 1

Our Company

Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.

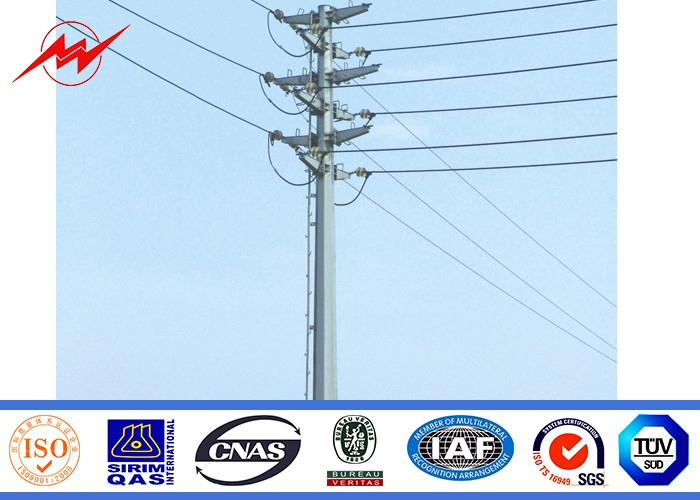

11M Class 3 S500MC Galvanized Steel Pole For Electrical Power Transmission Line 2
