15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles

الصين 15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles المزود
15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles المزود 15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles المزود 15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles المزود 15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles المزود 15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles المزود

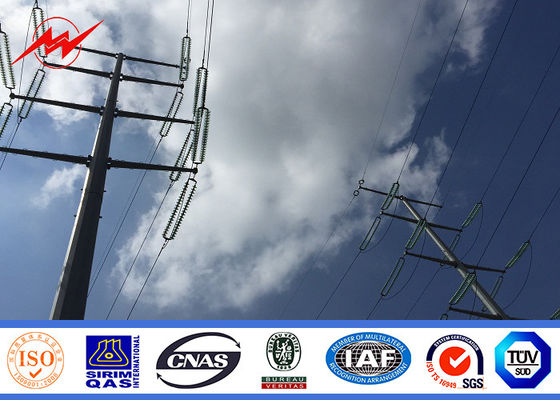

صورة كبيرة :  15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: MilkyWay
إصدار الشهادات: ISO9001/BV/
Model Number: Galvanized Steel Power Pole

شروط الدفع والشحن:

Minimum Order Quantity: 1 pcs
الأسعار: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
اتصل
مفصلة وصف المنتج
Product Name: Galvanized Steel Power Pole Application: Power Line
Thickness: 1 mm to 36mm Tolerance of the dimension: +-2%
Life time: 50 years Material: Q345
تسليط الضوء:

galvanized light pole,steel power poles

,

steel power poles

 15M Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles



 Material

 All of our material are purchased from famous mill factory to assure the quality

 A mill certificate issued by the mill factory with stamp and signature must be provided before unload the  material in our factory ,otherwise we have our reason to refuse the material .
 Before put into production ,all the material must pass the chemical and physical analysis to make sure  that they have meet the requested strength and component.

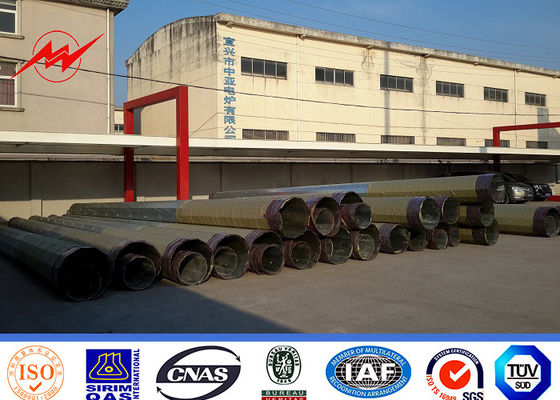

 15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles 0



 Specifications:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data







 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

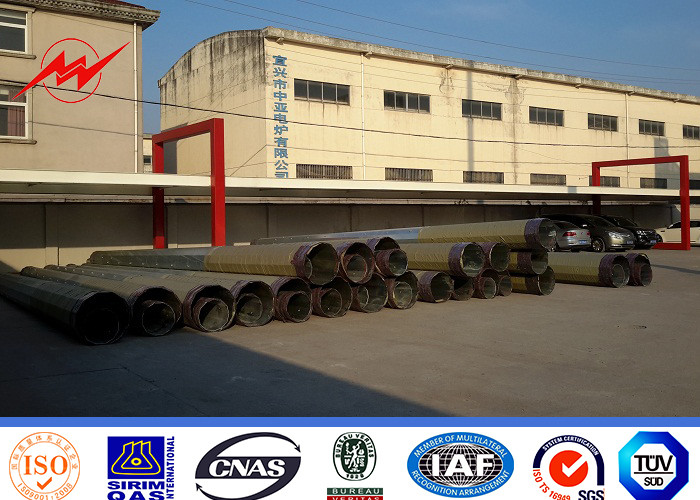

 15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles 1



 Production Process
 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

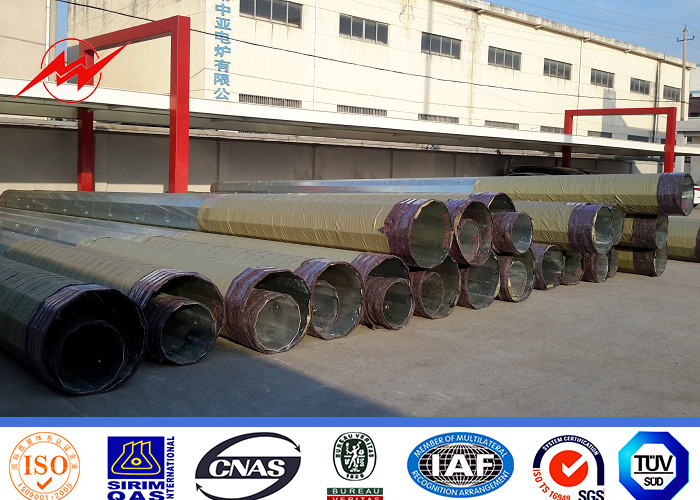

 15M Round Powder Painting Galvanised Steel Poles ASTM A123 Steel Transmission Poles 2



 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.







 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and  so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
