1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO

الصين 1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO المزود
1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO المزود 1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO المزود 1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO المزود 1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO المزود 1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO المزود

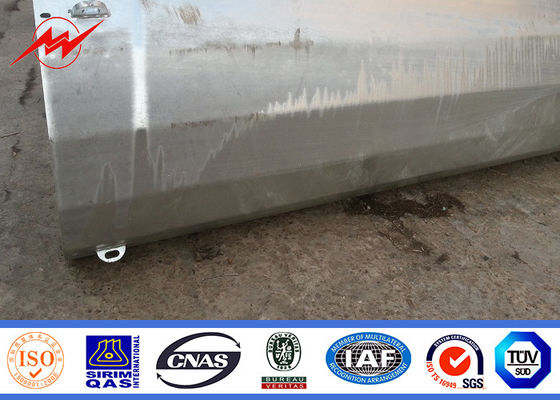

صورة كبيرة :  1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: MilkyWay
إصدار الشهادات: ISO9001/BV/
Model Number: Galvanized Steel Power Pole

شروط الدفع والشحن:

Minimum Order Quantity: 1 pcs
الأسعار: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
اتصل
مفصلة وصف المنتج
Product Name: Galvanized Steel Power Pole Application: Power Line
Thickness: 1 mm to 36mm Tolerance of the dimension: +-2%
Life time: 50 years Material: Q345
تسليط الضوء:

galvanized light pole,power distribution poles

,

power distribution poles

 12M ISO Certification Galvanized Steel Pole Steel Power Poles with Cross Arm



 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

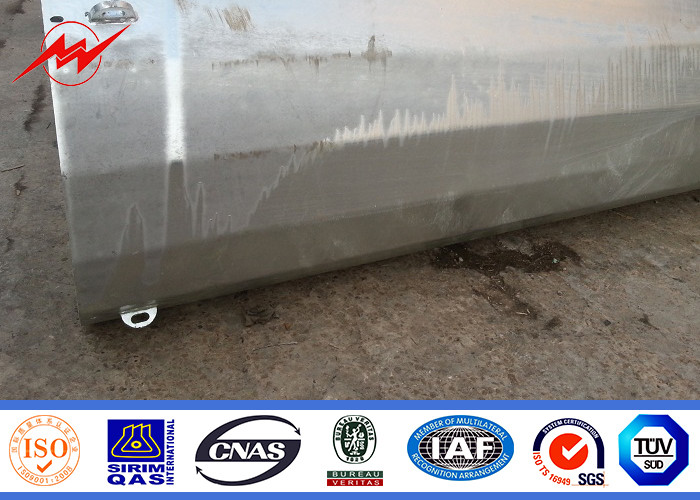

 1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO 0





 Specifications:



Height From 9 meter to 100 meter
Suit for Electric Power Transmission and Distribution
Shape Polygonal or Conical
Material

Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity 10kV to 220kV
Tolerance of the dimension According to client’s requirement.
Surface treatment Hot dip galvanized Following ASTM A 123, or any other standard by client required.
Joint of Poles Slip joint, flanged connected
Standard ISO 9001:2008
Length of per section Within 14 meter once forming
Welding Standard AWS (American Welding Society ) D 1.1
Thickness 1 mm to 36mm
Production Process Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Packages Packing with plastic paper or according to client’s request.






 Production Process
 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

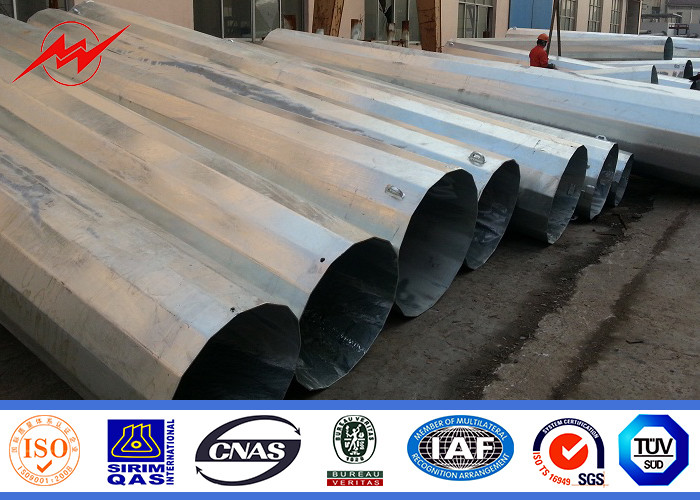

 1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO 1



 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.



 Package

1 Mm - 36mm Thickness Galvanized Steel Power Line Pole With Cross Arm ISO 2





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and  so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
