220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles

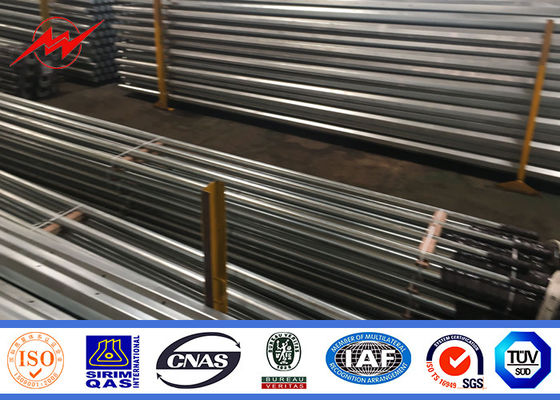

صورة كبيرة : 220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles

تفاصيل المنتج:

مكان المنشأ:	China
اسم العلامة التجارية:	MilkyWay
إصدار الشهادات:	ISO9001/BV/
رقم الموديل:	Electric Steel Power Pole

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 pcs
الأسعار:	Negotiation
تفاصيل التغليف:	As customer request
وقت التسليم:	20 working days after received your payment
شروط الدفع:	T/T, L/C at sight
القدرة على العرض:	300pcs per day

اتصل

مفصلة وصف المنتج

Product Name:	Electric steel power pole	Power:	110KV
Suit for:	Power transmission Line	Surface treatment:	Galvanization
Welding Standard:	AWS D 1.1	Warranty time:	15 years
تسليط الضوء:	metal power poles,steel utility poles , steel utility poles

220KV 12.8m 12KN Electric Steel Pole with Galvanization and Bitumen

Material:

All of our material are purchased from famous mill factory to assure the quality
A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.

Specifications:

Types Length	45ft	50ft	55ft	60ft	65ft	70ft
Types Length	13.75m	15.25m	16.80m	18.30m	19.85m	21.35m
B ( 0°-2°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	345	370	395	415	435	455
Thickness (mm)	6	6	6	6	6	6
E ( 2°-15°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	545	585	625	660	700	740
Thickness (mm)	6	6	6	6	6	6
C ( 15°-30°)
Top diameter (mm)	250	250	250	250	250	250
Butt diameter (mm)	600	645	690	730	770	805
Thickness (mm)	6	6	6	6	6	6
D ( 30°-90°)
Top diameter (mm)	300	300	300	300	300	300
Butt diameter (mm)	680	730	725	765	755	790
Thickness (mm)	6	6	7	7	8	8
HS ( 0°-2°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	340	360	385	400	420	440
Thickness (mm)	6	6	6	6	6	6
HT ( 2°-15°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	485	520	550	580	615	645
Thickness (mm)	6	6	6	6	6	6
3T ( 15°-30°)
Top diameter (mm)	250	250	250	250	250	250
Butt diameter (mm)	520	540	565	595	615	640
Thickness (mm)	6	6	6	6	6	6
3D ( 30°-90°)
Top diameter (mm)	300	300	300	300	300	300
Butt diameter (mm)	585	620	650	680	715	765
Thickness (mm)	6	6	6	6	6	6

Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
These are the standard accessories of the electric pole.

220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles 0

Packaging & Shipping

Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.

220KV 12.8m 12 KN Electrical Power Pole , Durable Transmission Line Poles 1
