3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate

شهادة
نوعية جيدة الكهربائية قطب السلطة للمبيعات
نوعية جيدة الكهربائية قطب السلطة للمبيعات
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

ابن دردش الآن

3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate

الصين 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate المزود
3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate المزود 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate المزود 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate المزود 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate المزود

صورة كبيرة :  3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: MilkyWay
إصدار الشهادات: ISO9001/BV/SGS
Model Number: Steel Electric Power Poles

شروط الدفع والشحن:

Minimum Order Quantity: 1 pcs
الأسعار: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
مفصلة وصف المنتج
Product Name: Steel Electric Power Poles Application: Power Distribution
Surface treatment: HDG Powder coating Certificate: ISO
Thickness: 6mm Dimenstion torlance: +- 2%

3 Sections 30m 6mm Steel Electric Power Poles with Cross Arm





 Specification:





Height

From 9 meter to 100 meter

Suit for

Electric Power Transmission and Distribution

Shape

Polygonal or Conical

Material

Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

                  Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity

10kV to 220kV

Tolerance of the dimension

According to client’s requirement.

Surface treatment

Hot dip galvanized Following ASTM A 123, or any other

standard by client required.

Joint of Poles

Slip joint, flanged connected

Standard

ISO 9001:2008

Length of per section

Within 14 meter once forming

Welding Standard

AWS (American Welding Society ) D 1.1

Thickness

1 mm to 36mm

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )

→Dimension verify →Flange welding →Hole drilling →sample assemble

 → surface clean→ Galvanization or powder coating ,painting →

Recalibration →Packages

Packages

Packing with plastic paper or according to client’s request.





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

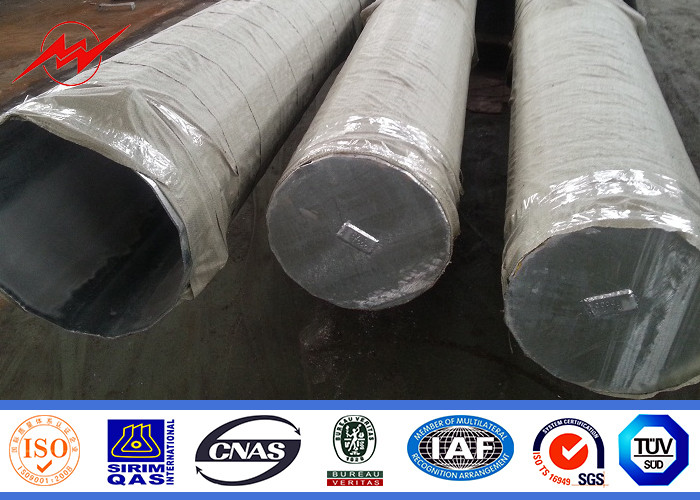

 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

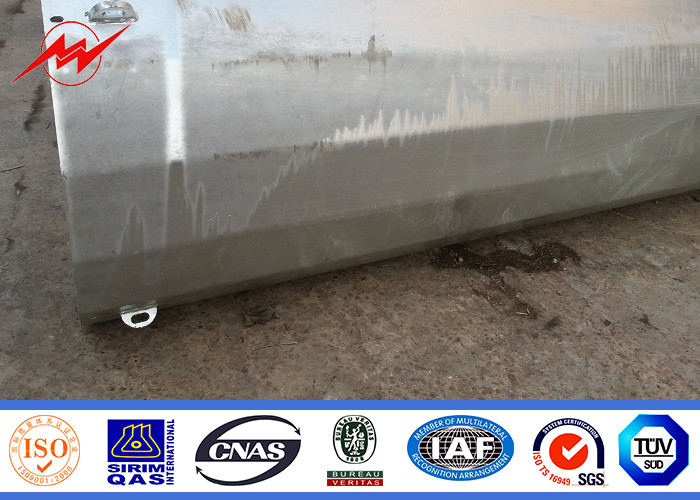

 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate



 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.

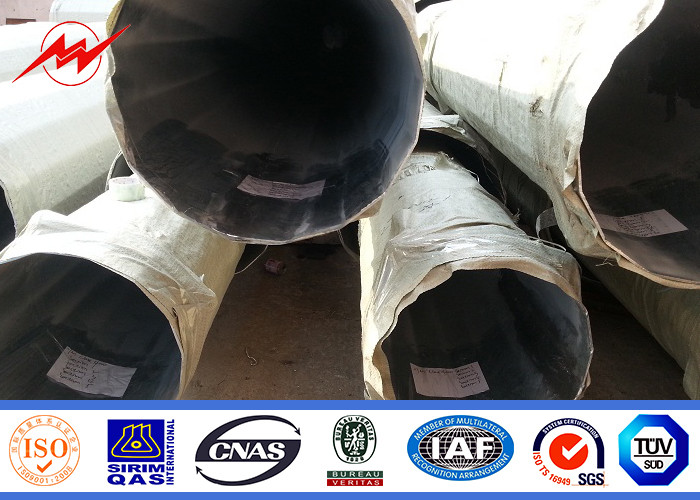

 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate
