3MM 12M 20KN Steel Utility Pole for Electrical Power Transmission

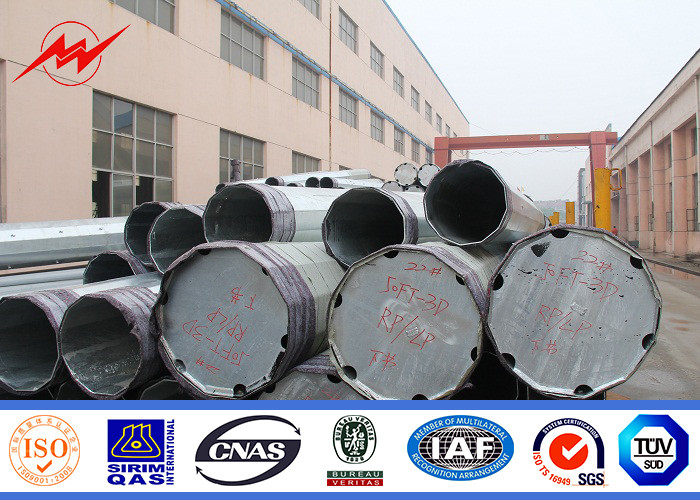

صورة كبيرة : 3MM 12M 20KN Steel Utility Pole for Electrical Power Transmission

تفاصيل المنتج:

مكان المنشأ:	China
اسم العلامة التجارية:	MilkyWay
إصدار الشهادات:	ISO9001/BV/
رقم الموديل:	Steel Utility Pole

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 pcs
الأسعار:	Negotiation
تفاصيل التغليف:	As customer request
وقت التسليم:	20 working days after received your payment
شروط الدفع:	T/T, L/C at sight
القدرة على العرض:	300pcs per day

اتصل

مفصلة وصف المنتج

Product Name:	Steel Utility Pole	Application:	Electricity transmission
Galvanization Thickness:	Average 86μm	Standard:	ISO
Lift time:	50 years	Gavanization standard:	ASTM A 123
Dimenstion torlance:	+- 2%
تسليط الضوء:	metal utility poles,electrical utility poles , electrical utility poles

3MM 12M 20KN Steel Utility Pole for Electrical Power Transmission

Description:

Our Transmission Pole is designed for the high voltage power transmission and low voltage power transmission.
Designed and manufacutred for durability, corrosion resistance and visual appeal.

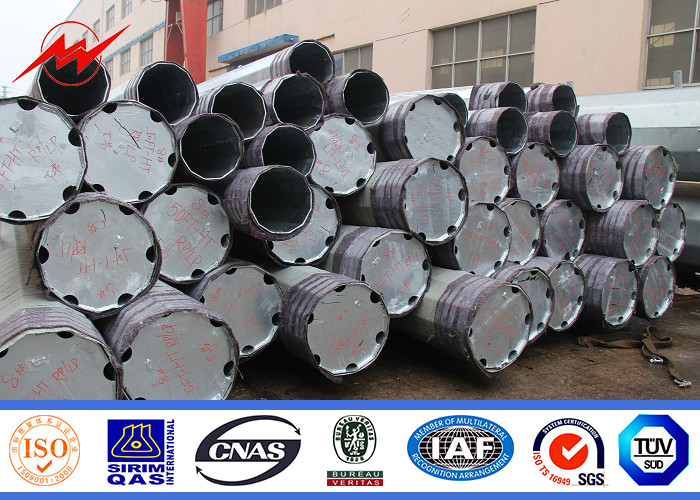

3MM 12M 20KN Steel Utility Pole for Electrical Power Transmission 0

Specifications:

Torlance of the dimenstion	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

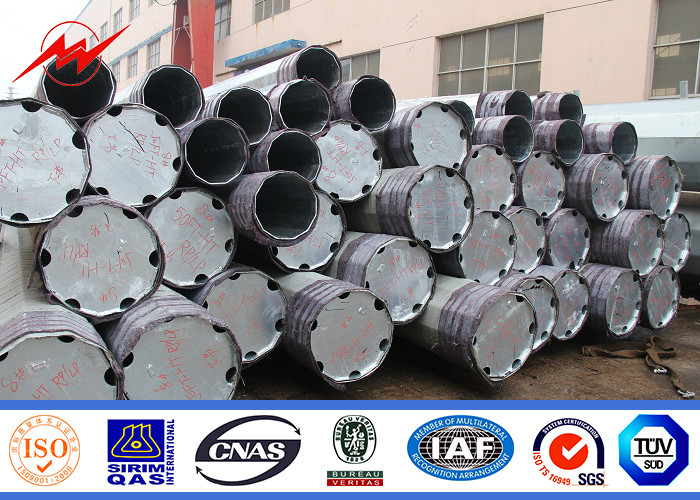

3MM 12M 20KN Steel Utility Pole for Electrical Power Transmission 1

Company Introduction:

JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.

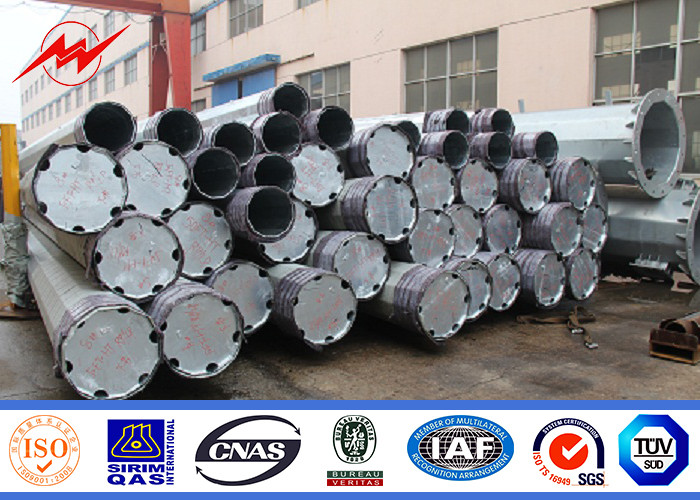

3MM 12M 20KN Steel Utility Pole for Electrical Power Transmission 2
