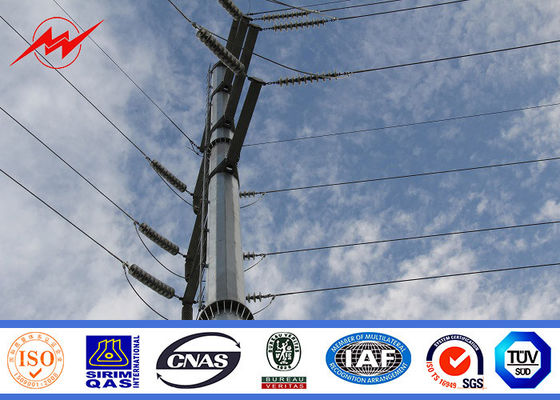

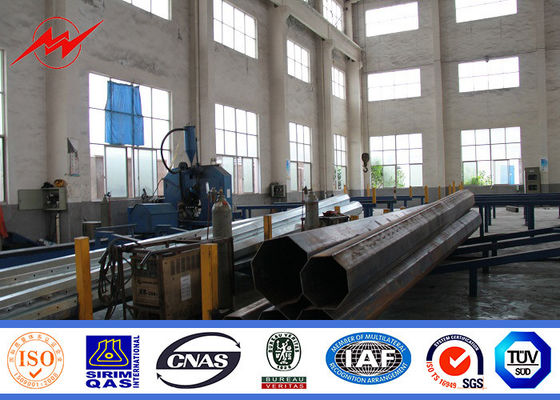

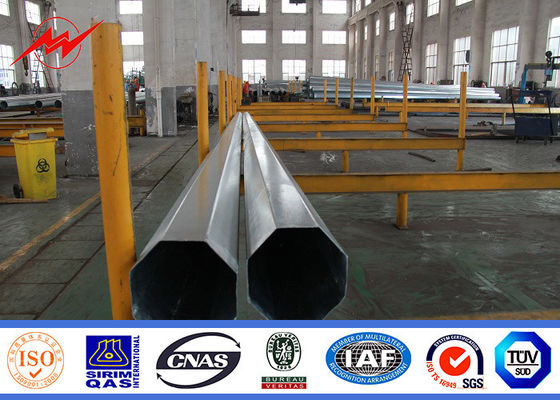

3mm Thickness NGCP Electrical Power Pole For Electricity Distribution

شهادة
الصين Jiangsu milky way steel poles co.,ltd الشهادات
الصين Jiangsu milky way steel poles co.,ltd الشهادات
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

ابن دردش الآن

3mm Thickness NGCP Electrical Power Pole For Electricity Distribution

الصين 3mm Thickness NGCP Electrical Power Pole For Electricity Distribution المزود
3mm Thickness NGCP Electrical Power Pole For Electricity Distribution المزود 3mm Thickness NGCP Electrical Power Pole For Electricity Distribution المزود 3mm Thickness NGCP Electrical Power Pole For Electricity Distribution المزود 3mm Thickness NGCP Electrical Power Pole For Electricity Distribution المزود

صورة كبيرة :  3mm Thickness NGCP Electrical Power Pole For Electricity Distribution

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: Milky Way
إصدار الشهادات: ISO//BV
Model Number: 35ft 3mm thickness NGCP electrical power pole for power transmission

شروط الدفع والشحن:

Minimum Order Quantity: one 40HQ
الأسعار: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
اتصل
مفصلة وصف المنتج
Material: Q345, Q235 Style: galvanization
Design load in kg: 300~ 1000 Kg appliced to 50cm from the to pole Torlance of dimenstion: +- 2%
Suit for: electricity distribution Welding standard: AWS D 1.1
تسليط الضوء:

steel power pole,transmission line poles

,

transmission line poles



35ft 3mm thickness NGCP electrical power pole for power transmission





Key Specifiction:



1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.

2. Mounting Height:  3-20M Optional Mounting Height

3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round

Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine

4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement

5. Base plate: Base plate is square or round and size as customers' requirement

6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement

7. Ground mounted: The length buried underground as per customers requirement

8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.

9. Galvanizing: Hot dip galvanization with thickness of 80-100µm average

10. Powder coating: Pure polyester powder painting, color is optional

11. Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance

12. Welding: Welding confirms with international welding standard of CWB

13. Certificate:  ISO9001-2000

14. We don't have standard products, so we need customer's drawings and request.

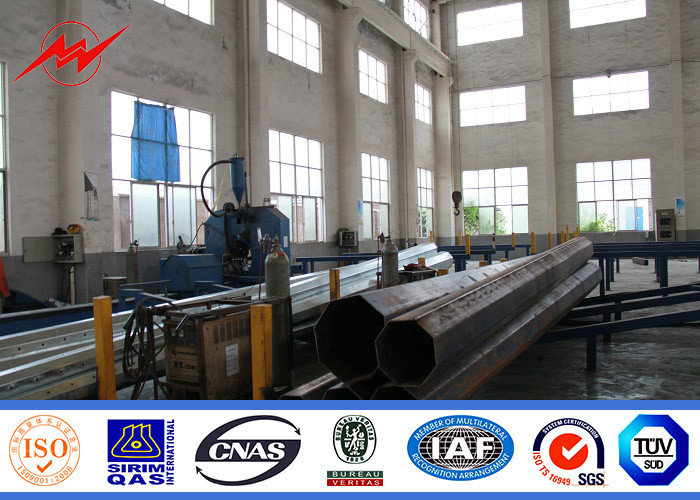

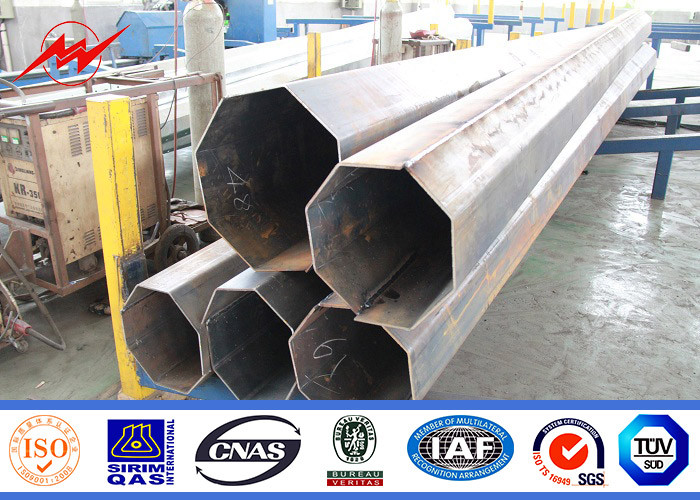

3mm Thickness NGCP Electrical Power Pole For Electricity Distribution 0



Our Company:



Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on

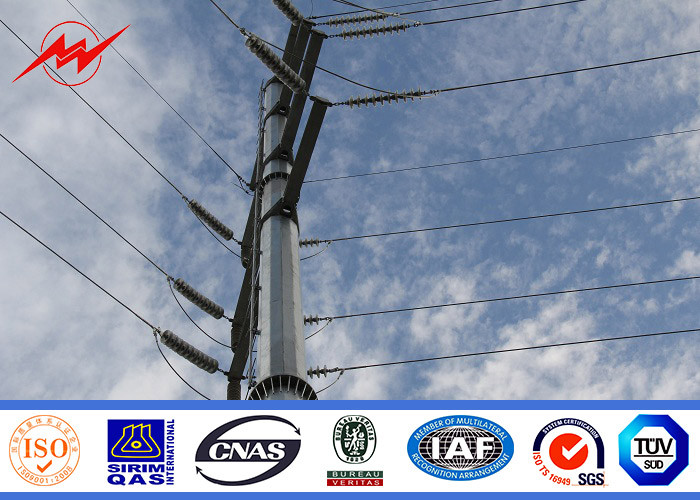

3mm Thickness NGCP Electrical Power Pole For Electricity Distribution 1





Manufacture Procedure



Raw material→Flatting the steel→Bending→Jointing→Point welding→Welding flange→Straighten→Galvanized→Finished poles

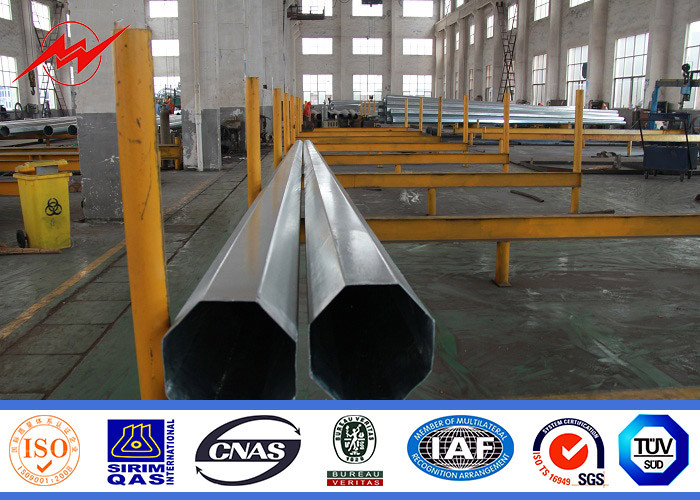

3mm Thickness NGCP Electrical Power Pole For Electricity Distribution 2
