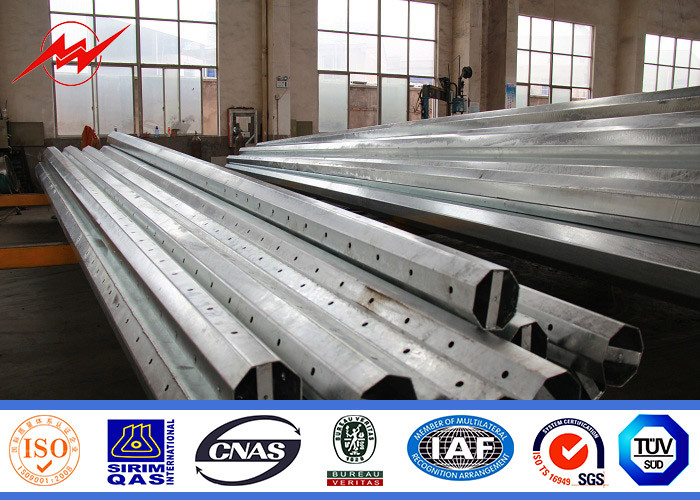

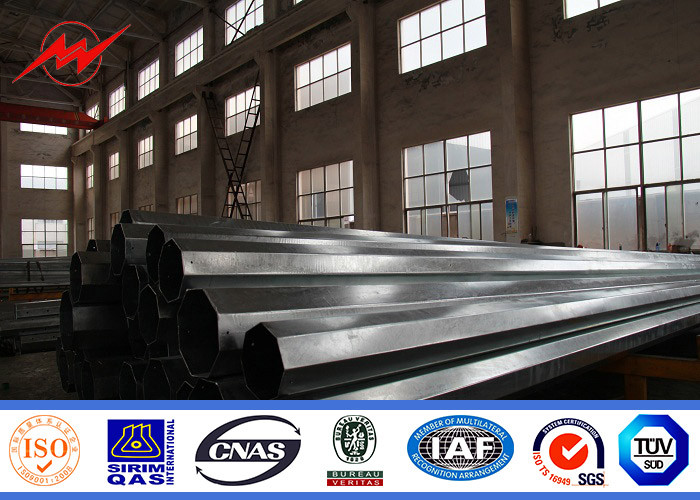

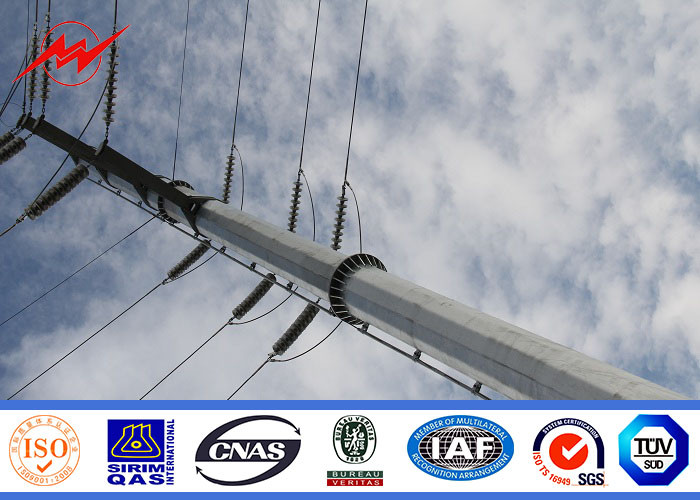

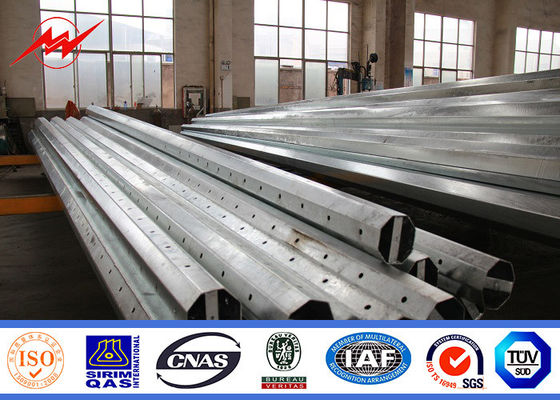

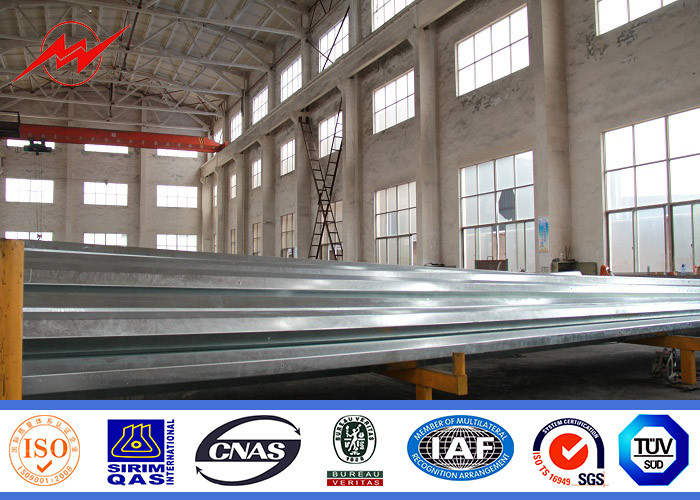

40ft Q345 Bitumen Electrical Power Pole For Power Transmission

شهادة
نوعية جيدة الكهربائية قطب السلطة للمبيعات
نوعية جيدة الكهربائية قطب السلطة للمبيعات
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

ابن دردش الآن

40ft Q345 Bitumen Electrical Power Pole For Power Transmission

الصين 40ft Q345 Bitumen Electrical Power Pole For Power Transmission المزود
40ft Q345 Bitumen Electrical Power Pole For Power Transmission المزود 40ft Q345 Bitumen Electrical Power Pole For Power Transmission المزود 40ft Q345 Bitumen Electrical Power Pole For Power Transmission المزود 40ft Q345 Bitumen Electrical Power Pole For Power Transmission المزود

صورة كبيرة :  40ft Q345 Bitumen Electrical Power Pole For Power Transmission

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: Milky Way
إصدار الشهادات: ISO/SGS/BV
Model Number: 40ft Q345 Bitumen Electrical Power Pole For Power Transmission

شروط الدفع والشحن:

Minimum Order Quantity: one 40HQ
الأسعار: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Contact Now
مفصلة وصف المنتج
Thickness: 1mm to 30mm Type: straight pole, tensile pole, turn pole
Power: 10kv~550kv Torlance of dimenstion: +- 2%
Style: galvanization Welding standard: AWS D 1.1

40ft Q345 Bitumen Electrical Power Pole For Power Transmission



Production Process



As an BV ,ISO ,SGS approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .



Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.



The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.





Galvanization



The galvanization of the steel pole are under strict control. Galvanization is achieved by immersion in a molten zinc bath(450̊) after pre-treated (dipping).



40ft Q345 Bitumen Electrical Power Pole For Power Transmission



Introduction



The lamp poles, electrical poles, power poles, transmission poles, road lamp poles, street lighting poles, street lamp pole , outdoor lighting pole,outdoor light pole,street lighting ,lighting pole , lighting , road lighting pole , road light pole ,road lamp pole ,steel pole, light pole, lighting pole ,street pole ,road pole,poles ,high mast poles, mast pole and traffic single pole are made by hot –roll coil , the material can be Q235 ,Q345,Q460,ASTM A 572 GR65 ,GR65, SS400 ,SS490,ST52-3 or any other client required , the process as cut plate, bending ,forming ,automatic welding ,drill holes ,quality check before galvanized ,hot dip galvanized or powder coating ,final quality check according by client required.





Manufacturer Tolerance



- Component Length: -25mm to 75mm

- Straightness: 2mm/m

- Twisting degree: 1̊ per 3 meters length

- Ovalisation : Maximum is 3%

- The average diameter : +/-0.5%

-Slip length: +/-150mm





Standard Accessory



- Top plate

- Base plate

- Bottom Strip

- Standard Hole

- Climbing Rung

- Anchor bolt

- Bitumen Protection
- Painted Marking

- Removable Ladder



40ft Q345 Bitumen Electrical Power Pole For Power Transmission



Inspection



To assure our products qualified ,we take steps as follows :



1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .

2.Introducing ISO management ,We are awared ISO 9001:2008 certificate . .

3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment





Factory



Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .



Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on



We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on





40ft Q345 Bitumen Electrical Power Pole For Power Transmission
