50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder

صورة كبيرة : 50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder

تفاصيل المنتج:

مكان المنشأ:	Yixing,Jiangsu,China
اسم العلامة التجارية:	Milky Way
إصدار الشهادات:	ISO9001
رقم الموديل:	High Mast Light

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 Poles
الأسعار:	Negotation
تفاصيل التغليف:	Naked Package or naked
وقت التسليم:	10-30 working days after received your payment
شروط الدفع:	L/C, T/T
القدرة على العرض:	30,000 Tons per month

اتصل

مفصلة وصف المنتج

Item Name:	50FT 500W LED High Mast Pole Round Shape with external caged ladder	Section:	One to four sections
Section Thickness:	4mm,6mm,8mm or custom design	Pole Typement:	Platform with protection
Surface Finished:	hot dip galvanized	Application:	Street way,highway,airport,Stadium
تسليط الضوء:	high mast lighting pole,Sports Light Poles , Sports Light Poles

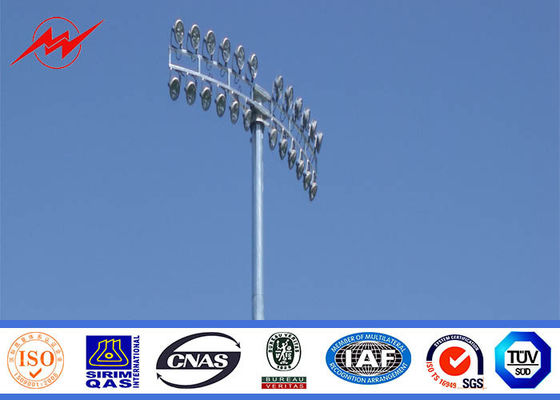

50FT 500W LED High Mast Pole Round Shape with external caged ladder

The High Mast series is specifically designed for projects with specifc lux requirements. Lighting masts are available from 16 metres through to 50 metres high. The high mast can be applied into: High way intersections, Car park, Loading areas, Shopping areas, Square, Sea Ports, Airports and Recreational centers.

Quick Product Description-High Mast Lighting Pole

Item	22 MTR
Material Construction	Q345(Gr50)
No. of Longitudinal Welds	Single/Double
Cross section of mast in polygon((No. of Sides)	Octagonal,dodecagon,hexadecagon
Thickness	4mm,6mm,8mm,10mm or customized design
Individual Section’s Length	11375mm
Base & Top dia (OAF)	450/200mm
Thickness of galvanization(Average)	86 Microns
Size of opening door at base	360 x 1400 mm
Size of base plate diameter	650 mm
Size of base plate thickness	32 mm
Number of foundation bolts	12
Bolt diameter	28 mm

ACCESSORIES

IMPORTANT TECHNICAL FEATURES

FIXED TYPE HEAD FRAME :

Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.

WINCHES :

Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.

FINISH :

The complete mast with component is fully hot dip galvanized for longer life.

LANTERN CARRIAGE :

We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.

50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder 0

Rasing System

50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder 1

Application

Truck and bus terminals

railyards

ship docks

ferry terminals

airports

prisons

industrial and commercial sites

international borders

parking lots

More Products

50 FT 500W LED High Mast Lighting Pole Round Shape With External Caged Ladder 2

Company Information

Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.

We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:

lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.

The entire range of equipment is manufactured using superior quality raw material and ensures reliability.

These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
