69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms

الصين 69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms المزود
69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms المزود 69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms المزود 69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms المزود 69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms المزود

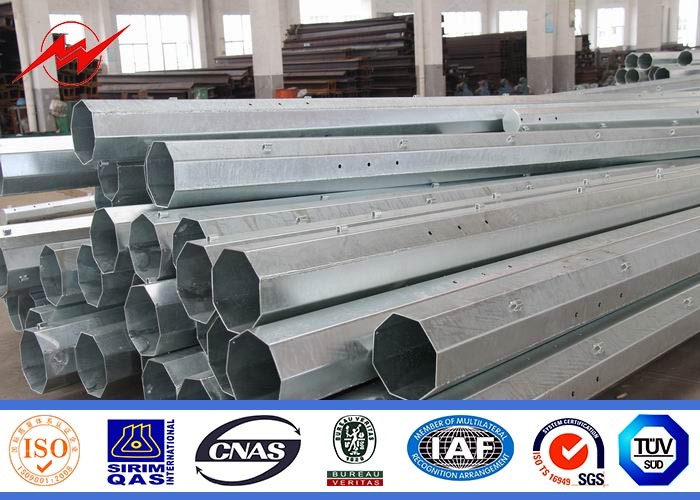

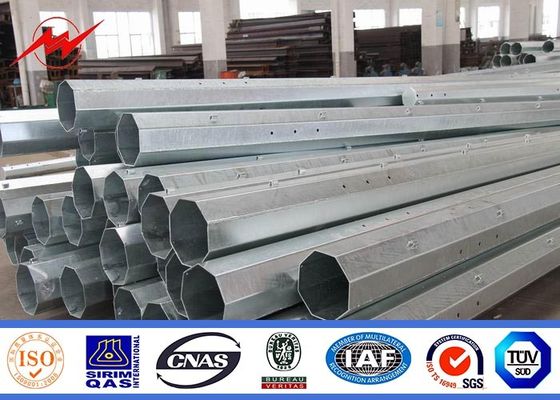

صورة كبيرة :  69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms

تفاصيل المنتج:

Place of Origin: Jiangsu,China
اسم العلامة التجارية: Milky Way
إصدار الشهادات: /BV/ISO9001
Model Number: Steel Utility Pole

شروط الدفع والشحن:

Minimum Order Quantity: 5 pcs
الأسعار: Negotiation
Packaging Details: As customers' request
Delivery Time: 10-30 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 30,000 Tons per month
اتصل
مفصلة وصف المنتج
Name: 69kv Q235 Q345 transmission poels Steel Utility Pole With Cross Arms Thickness: 3mm 4mm
Surface Finished: Hot Dip Galvanized Standard: ISO
Torlance: +- 2% Max wind speed: 30m/s
Material: Q235,Q345,Gr65 colar: any
تسليط الضوء:

metal utility poles,electrical utility poles

,

electrical utility poles

69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms





Product Name

69kv Q235 Q345 transmission poels Steel Utility Pole With Cross Arms

Type

Straight Pole ,Tensile Pole ,Turn Pole

Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical



Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2

                 Q235B/A36,minimum yield strength>=235n/mm2



As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Torlance of dimenstion

+- 2%

Power

10 KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.



Joint of Poles

Insert mode,innerflange mode,face to face joint mode .



Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour . 30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes the welding beautiful in shape



Welding Standard :AWS ( American Welding Society ) D 1.1



Thickness

1 mm to 30 mm

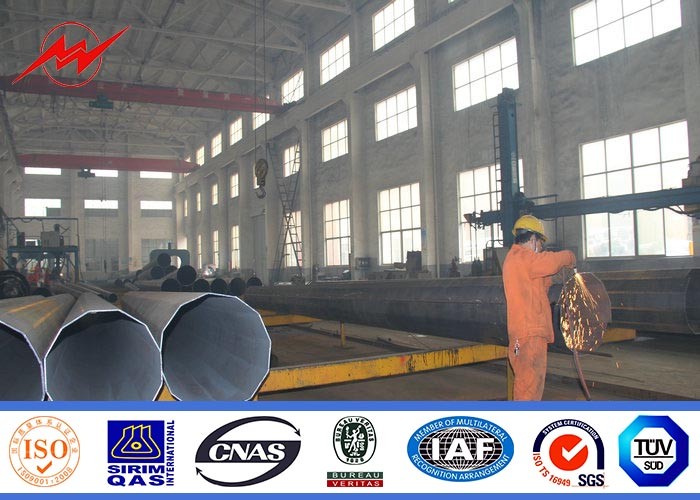

Production Process

Rew material test  Cuttingj Molding or bending Welidng (longitudinal )Dimension verifyFlange welding Hole drilling Calibration  DeburrGalvanization or powder coating ,painting Recalibration Thread Packages

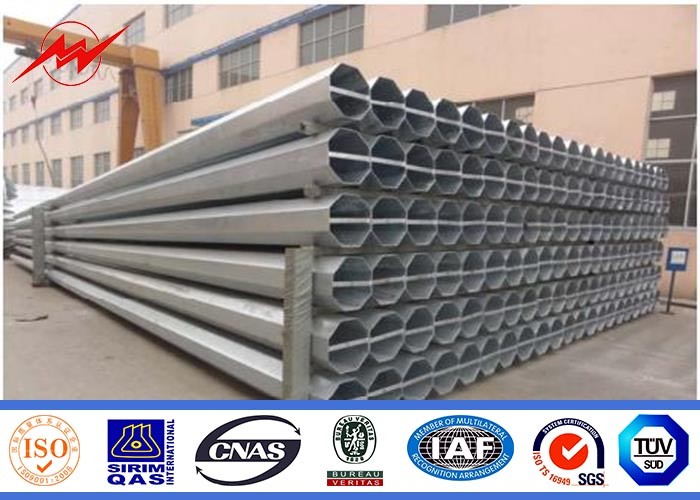

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also

can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.















































































69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms 0



Before shipment ,we have a final inspector manager to check the products on every detail and component to make sure it all meet the drawing .

69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms 1



Trade Terms:



1. Payment:(1)Telegraphic Transfer(30% advance payment, balance before shipment)

                   (2)Telegraphic Transfer(30% advance payment, balance against copy of documents)

                   (3)Letter of Credit: at sight

 2. Lead Time: 2 weeks after confirmed order

 3. Delivery way: by sea



69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms 2



69kv Q235 Q345 Transmission Metal Utility Poles With Cross Arms 3
