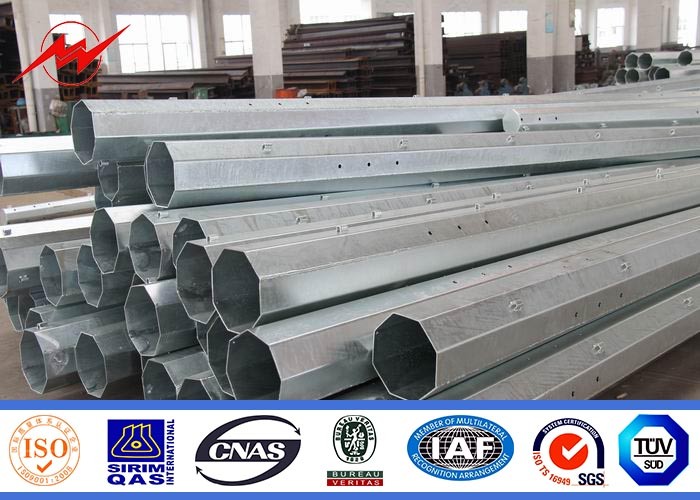

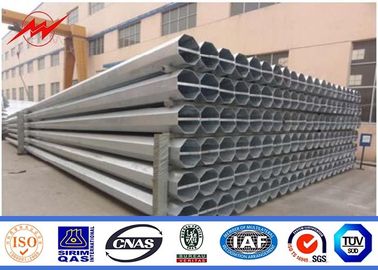

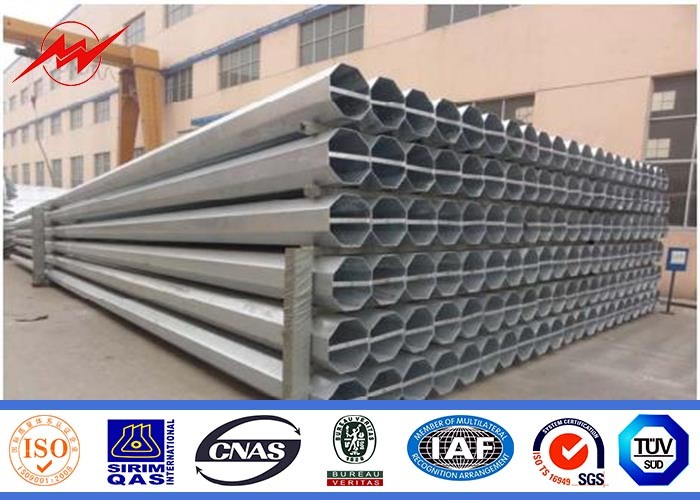

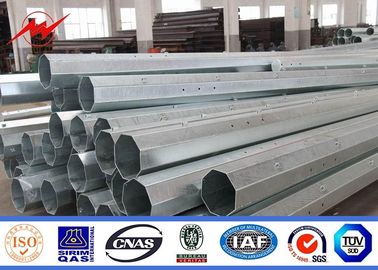

9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission

صورة كبيرة : 9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission

تفاصيل المنتج:

مكان المنشأ:	China
اسم العلامة التجارية:	Milky Way
إصدار الشهادات:	ISO, BV,
رقم الموديل:	9M 11M Q345 electrical Steel Utility Pole for Africa power transmission

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 pc
الأسعار:	negotiation
تفاصيل التغليف:	as per customer request
وقت التسليم:	usually 2 weeks after confirming
شروط الدفع:	T/T
القدرة على العرض:	300 pieces pole per day

اتصل

مفصلة وصف المنتج

Suit for:	electricity distribution	Power:	10kv~550kv
Thickness:	1mm to 30mm	Design of pole:	against earthquake of 8 grade
Torelance of dimenstion:	+- 2%	Wind speed:	160km/h, 30m/s
تسليط الضوء:	metal utility poles,electrical utility poles , electrical utility poles

9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission

Specification:

Suit for	Electricity distribution
Shape	Conoid ,Multi-pyramidal , Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Tolerance of dimension	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg applied to 50cm from the top pole
Marks	Nane plate through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode .
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We have past flaw testing. Internal and external double welding makes the welding beautiful inshape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Raw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration→ Deburr →Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required ,each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

Technical Parameter:

top end inner diameter (mm)	Tread (mm)	Running wheel diameter (mm)	Length (m)
150	2000	600	7-12
170	2000	600	7-12
190	2000	650	7-15
230	2000	650	6-9
300 equal diameter	2000	600	6-9
350 equal diameter	2000	650	6-12
310	2000	650-780	6-15

9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission 0

Introduction:

The lamp poles, electrical poles, power poles, transmission poles, road lamp poles, street lighting poles, street lamp pole , outdoor lighting pole,outdoor light pole,street lighting ,lighting pole , lighting , road lighting pole , road light pole ,road lamp pole ,steel pole, light pole, lighting pole ,street pole ,road pole,poles ,high mast poles, mast pole and traffic single pole are made by hot –roll coil , the material can be Q235 ,Q345,Q460,ASTM A 572 GR65 ,GR65, SS400 ,SS490,ST52-3 or any other client required , the process as cut plate, bending ,forming ,automatic welding ,drill holes ,quality check before galvanized ,hot dip galvanized or powder coating ,final quality check according by client required.

9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission 1
