Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness

الصين Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness المزود
Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness المزود Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness المزود Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness المزود Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness المزود Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness المزود

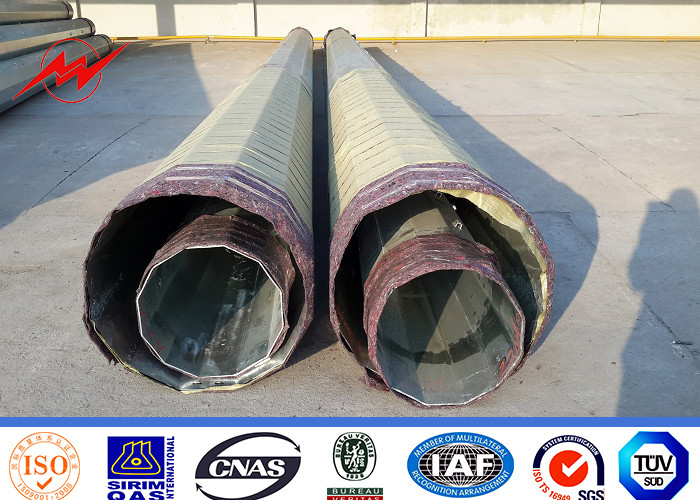

صورة كبيرة :  Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: MilkyWay
إصدار الشهادات: ISO9001/BV/SGS
Model Number: Electric Steel Power Pole

شروط الدفع والشحن:

Minimum Order Quantity: 1 pcs
الأسعار: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
مفصلة وصف المنتج
Product Name: Electric Galvanized steel Pole Application: Distribution Line
Material: SteelQ235,Q345 Minimum yield strength: 355 mpa
Max ultimate tensile strength: 620 mpa Wall thickness: 1mm-36mm

 Bitumen Outdoor Electric Steel Transmission Line Poles for Power Distribution





 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

 Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness



 Specification:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

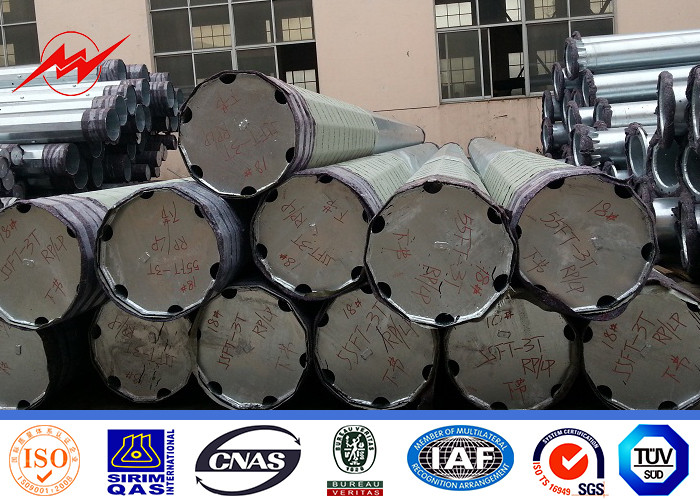

Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Description:
 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt
 -Bitumen protection
 -Painted marking
 -Removable ladder
 These are the standard accessories of the electric pole.

 Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness





 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

 Bitumen Electric Power Pole For Power Distribution 1mm - 36mm Wall Thickness



 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
