تفاصيل المنتج:
شروط الدفع والشحن:
|
| Product Name: | Steel Utility Pole | Application: | 33KV Electrical Power Distribution |
|---|---|---|---|
| Quality Control: | ISO 9001 | Welding Standard: | AWS D 1.1 |
| Surface treatment: | Galvanization | Dimenstion torlance: | +- 2% |
| تسليط الضوء: | أعمدة الطاقة الكهربائية,الكهربائية نقل البولنديين,electrical transmission poles |
||

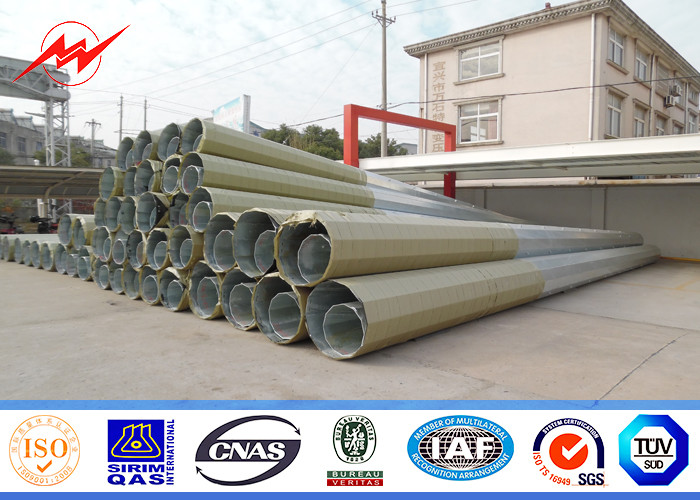

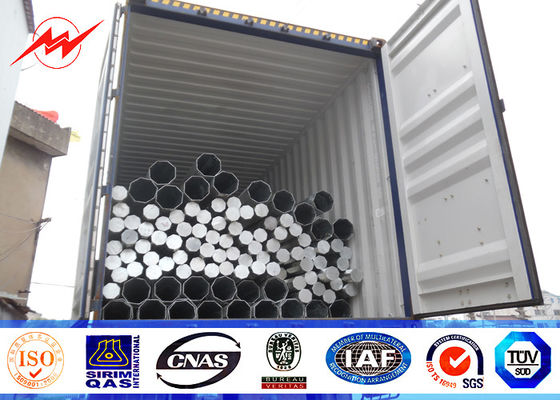

Conical 33KV 11m 3.5mm Steel Utility Pole for Electrical Transmission Distribution With Cross Arms
Specifications:
| series | Outside Diametar | Wall Thicness |
| mm | Min. | mm /SWG |
| 15 L | 21.3 | 2 |
| M | 2.6 | |
| H | 3.2 | |
| 20 L | 26.9 | 2.3 |
| M | 2.6 | |
| H | 3.2 | |
| 25 L | 33.7 | 2.6 |
| M | 3.2 | |
| H | 4 | |
| 32 L | 42.4 | 2.6 |
| M | 3.2 | |
| H | 4 | |
| 40 L | 48.3 | 2.9 |
| M | 3.2 | |
| H | 4 | |
| 50 L | 60.3 | 2.9 |
| M | 3.6 | |
| H | 4.5 | |
| 65 L | 76.1 | 3.2 |
| M | 3.6 | |
| H | 4.5 | |
| 80 L | 88.9 | 3.2 |
| M | 4 | |
| H | 4.8 | |
| 90 L | 101.6 | 3.6 |
| M | 4 | |
| H | 4.8 |
Production Control
Features:
Enhances both electrical and mechanical performance
Well suited for terminal connections on high voltage side of a transformer
Accurate dimension and resistivity to adverse conditions
High tensile strength with optimum tolerance capacity
Application:
Transmission Applications
Light Duty Steel Poles
Custom Design Transmission Poles
Steel H-Frame Poles
Substation Applications
Dead End Structures
A-Frames and H-Frames
Special Application Structures
Low Side Supports – Buss, Switch, and Other equipment
Static and Shield Wire Poles

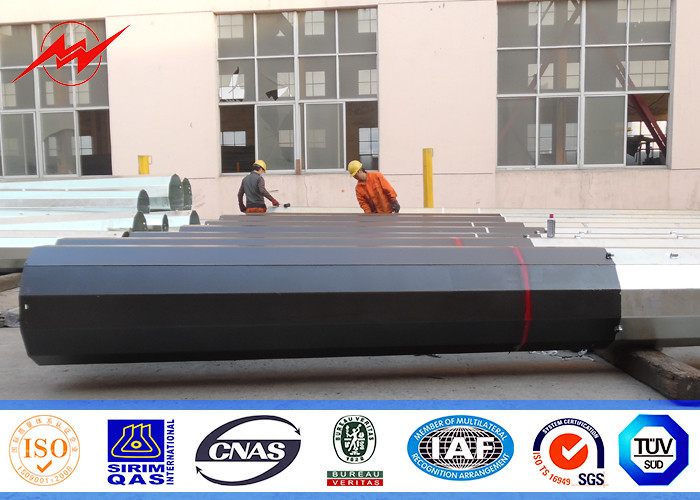

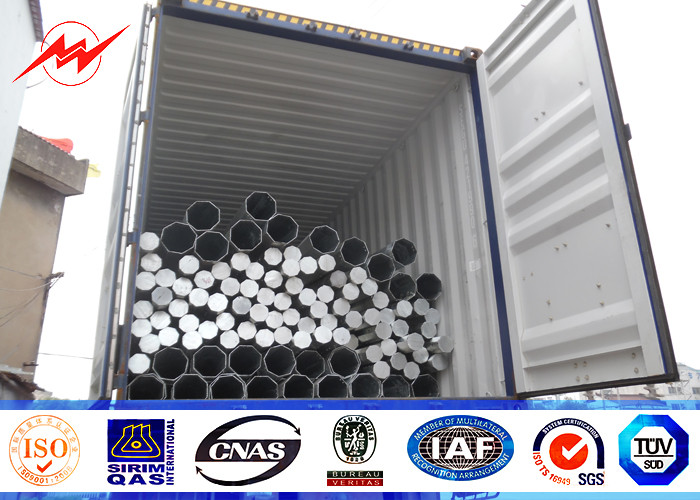

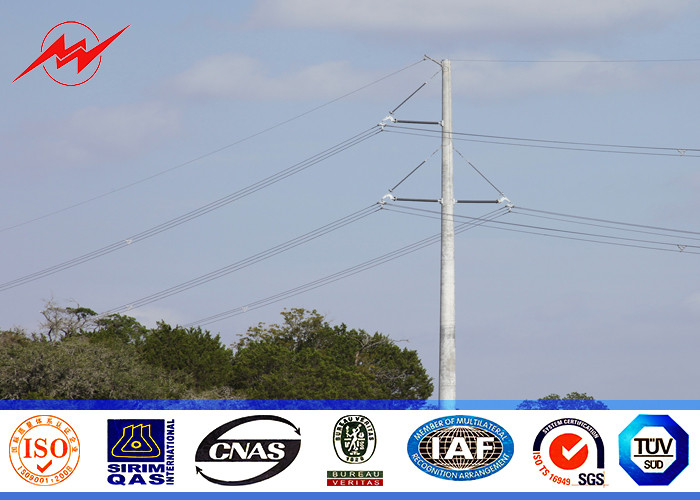

More Pictures:
Here are some reasons why they made the switch from the wooden pole to Steel Utility Pole:
Fabricated with uniform dimensions
Easy to install
Durable
Easy to maintain
Lower in life cycle costs
A solution to EPA regulations and deforestation issues
Superior in strength
Impervious to insects and rot
Free of toxic chemical treatments or hazardous waste concerns
100% recyclable
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
Available Foundation Types
Direct Embedment
Anchor Bolt/Base Plate
Vibratory Steel Caisson
Available Finishes
Galvanized per ASTM A123
Paint over galvanized,paint over black steel
Powder Coating
Standard Features
In-Ground Mounted:
12-sided pole shaft
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the nominal ground line
M24 nut 250mm above the nominal ground line (to assist lifting)
Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line
Anti-sink straps
Hot dip galvanised finish
Base Plate Mounted:
12-sided pole shaft (40kN to 80kN)
16-sided pole shaft (100kN & 120kN)
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the pole base
Two lifting gussets on the base plate
Anchor bolts, templates, nuts & washers
Hot dip galvanised finish
