Durable 4w 1.72m Street Garden Light Poles With Hot Dip Galvanization

الصين Durable 4w 1.72m Street Garden Light Poles With Hot Dip Galvanization المزود
Durable 4w 1.72m Street Garden Light Poles With Hot Dip Galvanization المزود Durable 4w 1.72m Street Garden Light Poles With Hot Dip Galvanization المزود Durable 4w 1.72m Street Garden Light Poles With Hot Dip Galvanization المزود Durable 4w 1.72m Street Garden Light Poles With Hot Dip Galvanization المزود

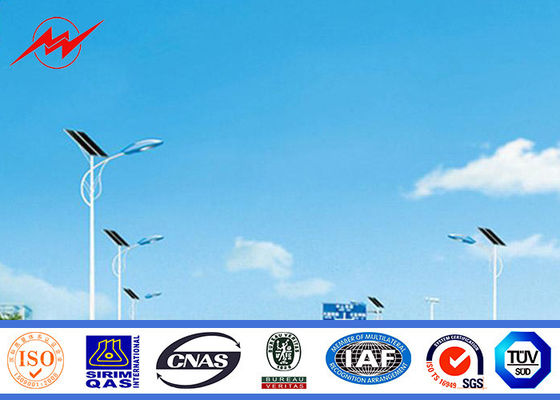

صورة كبيرة :  Durable 4w 1.72m Street Garden Light Poles With Hot Dip Galvanization

تفاصيل المنتج:

Place of Origin: China,Jiangsu
اسم العلامة التجارية: MilkyWay
إصدار الشهادات: ISO9001/BV/
Model Number: Street Light Poles

شروط الدفع والشحن:

Minimum Order Quantity: 1 pcs
الأسعار: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
اتصل
مفصلة وصف المنتج
tolerance: +/-2% Product Name: 4w 1.72m Garden Lights New Design Street Light Poles JY-0008A-4W-S2-31W-PIR Garden
Color variable: any color Payment Terms:: T/T ,L/C
Application: road,highway,street,square safty Facor: 1.8
اسم العلامة التجارية: MilkyWay
تسليط الضوء:

street lighting poles,street lamp pole

,

street lamp pole

4w 1.72m Garden Lights New Design Street Light Poles JY-0008A-4W-S2-31W-PIR Garden ​



Specification:

1. Quality Q345/Q235 steel plate
2. advanced equipent
3. high level technical personnel
4. hot dip galvanization



Type

Street Lamp pole, lamp post . Lamp column

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Standard

Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

Suit for

Highway
Roadway
Residential subdivisions
Commercial development

Option

Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.

Production Process

Raw material test  Cutting Molding or bending Welidng (longitudinal )Dimension verify
Flange welding Hole drilling Calibration DeburrGalvanization or powder coating ,painting
Recalibration ThreadPackages



Our poles as normal cover by Mat or straw bale at the top and bottom  and wood between the poles to avoide the damage on the galvanization of the pole  ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.


Durable 4w 1.72m Street Garden Light Poles With Hot Dip Galvanization 0


As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .
Durable 4w 1.72m Street Garden Light Poles With Hot Dip Galvanization 1
