High Precision Pure Copper Weld Steel Ground Rod Well Agglutination

صورة كبيرة : High Precision Pure Copper Weld Steel Ground Rod Well Agglutination

تفاصيل المنتج:

مكان المنشأ:	China
اسم العلامة التجارية:	Milky Way
إصدار الشهادات:	CE,UL467,ISO9001:2008
رقم الموديل:	ground rod

شروط الدفع والشحن:

الحد الأدنى لكمية:	10 pieces
الأسعار:	US $0.1-5 per piece
تفاصيل التغليف:	Nylon Or Wooden cases Or container
وقت التسليم:	5-15 days
شروط الدفع:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
القدرة على العرض:	500 tons per month

اتصل

مفصلة وصف المنتج

Product name:	Ground rod	Material:	Copper weld steel
Type:	Threaded or flat or pointed	Usage:	Underground
Copper layer thickness:	0.254mm, 0.33mm, 0.5mm, 1.0mm	Application:	Lightning protection
Elongation:	8%-15%	Straightness:	<1mm/m
تسليط الضوء:	copper bonded ground rod,copper clad ground rods , copper clad ground rods

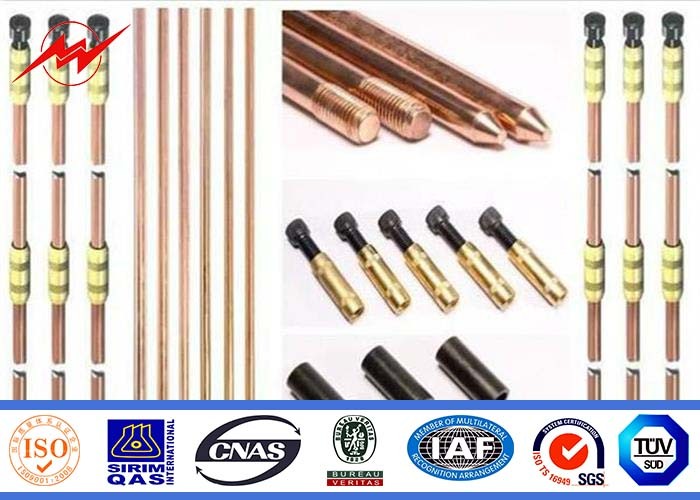

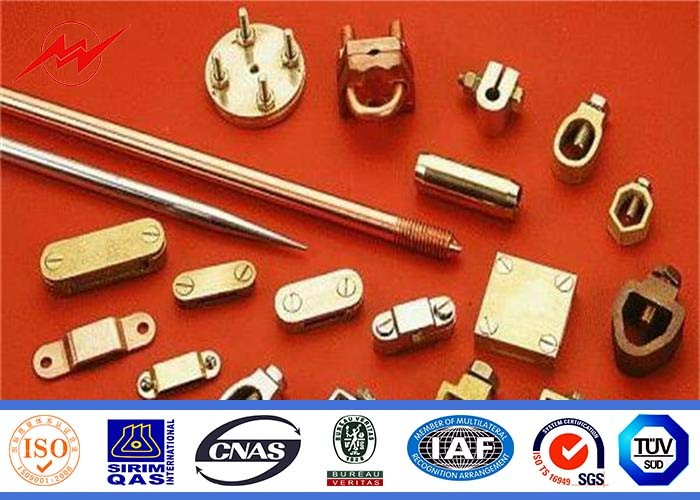

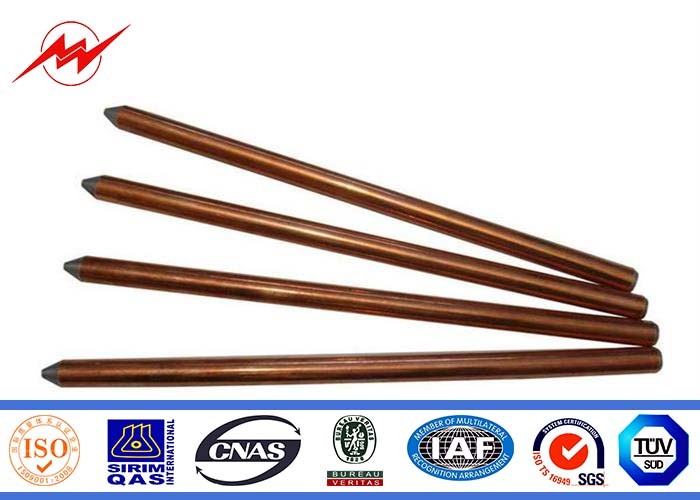

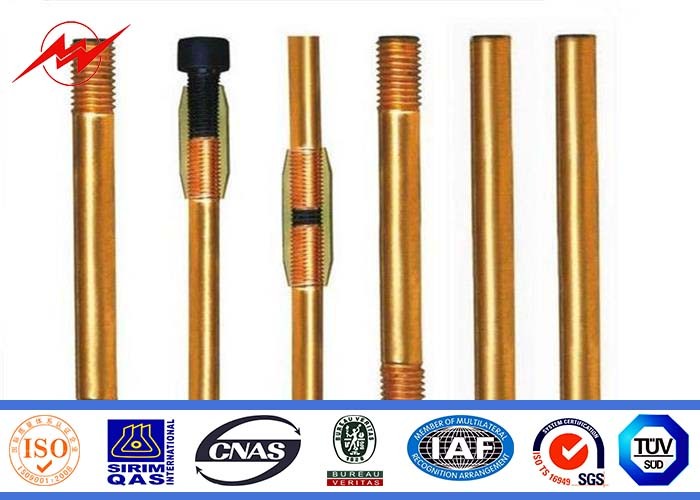

High Precision pure copper weld steel ground rod with accessories

Specifications:

Ground Rod Size List
Small Size
Model	Diameter		Copper Thickness		Length		N.W.	Packing
Model	inch	mm	Mil	mm	Feet	mm	kgs/pc	pc/bundles
YH-8		8	10	0.254	3	900	0.45	20
YH-8		8	10	0.254	4	1200	0.45	20
YH-8		8	10	0.254	5	1500	0.45	20
YH-9		9	10	0.254	3	900	0.57	20
YH-9		9	10	0.254	4	1200	0.57	20
YH-9		9	10	0.254	5	1500	0.57	20
YH-10		10	10	0.254	3	900	0.7	20
YH-10		10	10	0.254	4	1200	0.7	20
YH-10		10	10	0.254	5	1500	0.7	20
YH-11		11	10	0.254	3	900	0.85	20
YH-11		11	10	0.254	4	1200	0.85	20
YH-11		11	10	0.254	5	1500	0.85	20
YH-12		12	10	0.254	3	900	1.01	20
YH-12		12	10	0.254	4	1200	1.01	20
YH-12		12	10	0.254	5	1500	1.01	20
YH-13		13	10	0.254	3	900	1.18	20
YH-13		13	10	0.254	4	1200	1.18	20
YH-13		13	10	0.254	5	1500	1.18	20
YH-13		13	10	0.254	6	1800	1.18	20
YH-14	5/8	14..2	10	0.254	4	1200	1.54	20
YH-14	5/8	14.2	10	0.254	6	1800	2.3	10
YH-14	5/8	14.2	10	0.254	8	2400	3.07	10
YH-14	5/8	14.2	10	0.254	10	3000	3.84	10
YH-14	5/8	14.2	10	0.254	20	6000	7.68	5
YH-16		14.2	10	0.254	4	1200	1.95	10
YH-16		16	10	0.254	6	1800	2.93	10
YH-16		16	10	0.254	8	2400	3.9	10
YH-16		16	10	0.254	10	3000	4.88	10
YH-16		16	10	0.254	20	6000	9.75	5
YH-17	3/4	17.2	10	0.254	4	1200	2.25	10
YH-17	3/4	17.2	10	0.254	6	1800	3.38	10
YH-17	3/4	17.2	10	0.254	8	2400	4.51	10
YH-17	3/4	17.2	10	0.254	10	3000	5.64	7
YH-17	3/4	17.2	10	0.254	20	6000	11.27	5
YH-18		18	10	0.254	4	1200	2.47	10
YH-18		18	10	0.254	10	3000	6.17	7
YH-18		18	10	0.254	20	6000	12.34	5
YH-20		20	10	0.254	6	1800	4.57	10
YH-20		20	10	0.254	8	2400	6.1	10
YH-20		20	10	0.254	10	3000	7.62	7
YH-20		20	10	0.254	20	6000	15.24	5
YH-20		20	10	0.254	8	2400	6.1	10
YH-22		22	10	0.254	10	3000	9.22	7
YH-22		22	10	0.254	6	1800	5.53	10
YH-25		25	10	0.254	8	2400	9.53	10
YH-25		25	10	0.254	10	3000	11.91	7
YH-25		25	10	0.254	20	6000	23.81	5
Also supply copper layer thickness 0.33mm,0.5mm and 1.0mm
Also supply any length shorter than 6000mm

Description:
The counter bored couplings are made from high copper content alloy, earth rod,commercial brass is not used.

This again ensures excellent corrosion resistance and high strength.

Item Number	copper weld steel ground rod
Copper layer thickness	>=0.254mm
Tensile strength	>=600Nm/mm2
Straightness error	<=1mm/m
Service life	>=50years
Function	Used in grounding and lightning system
Type	Threaded or flat or pointed
Plasticity of copper layer	No crack under U bent
Available service mode	OEM;ODM
Certificate	CE,UL467,ISO9001:2008

High Precision Pure Copper Weld Steel Ground Rod Well Agglutination 0

Packaging & Shipping:
5pcs/bundle 10pcs/bundle Nylon strip-Weave strip-Iron pallet or wooden case-Container 3 tons per pallets 20 tones per container.

Company introduction:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
High Precision Pure Copper Weld Steel Ground Rod Well Agglutination 2
