تفاصيل المنتج:
شروط الدفع والشحن:
|
| Product Name: | Electrical Steel Utility Poles | Application: | Electrical Power Transmission |
|---|---|---|---|
| Thickness: | 1 mm to 36mm | Life time: | 50 years |
| Waranty time: | 15 years | Wind load resistance: | 30m/S |
| تسليط الضوء: | ,الكهربائية نقل البولنديين,electrical transmission poles |
||

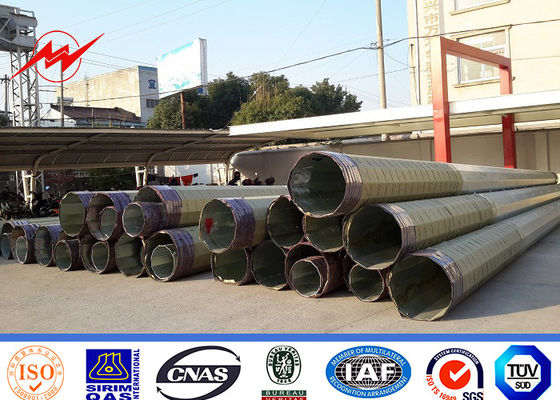

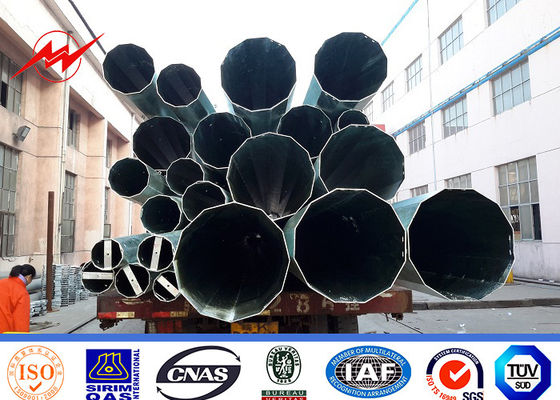

OEM Round Steel Utility Pole 15m 20kn Steel Transmission Poles
Specifications:
|
Height |
From 9 meter to 100 meter |
|
Suit for |
Electric Power Transmission and Distribution |
|
Shape |
Polygonal or Conical |
|
Material |
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400 |
|
Power Capacity |
10kV to 220kV |
|
Tolerance of the dimension |
According to client’s requirement. |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, or any other standard by client required. |
|
Joint of Poles |
Slip joint, flanged connected |
|
Standard |
ISO 9001:2008 |
|
Length of per section |
Within 14 meter once forming |
|
Welding Standard |
AWS (American Welding Society ) D 1.1 |
|
Thickness |
1 mm to 36mm |
|
Production Process |
Raw material test → Cutting →bending →Welding (longitudinal )→ Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
|
Packages |
Packing with plastic paper or according to client’s request. |
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Production Process
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread→Packages

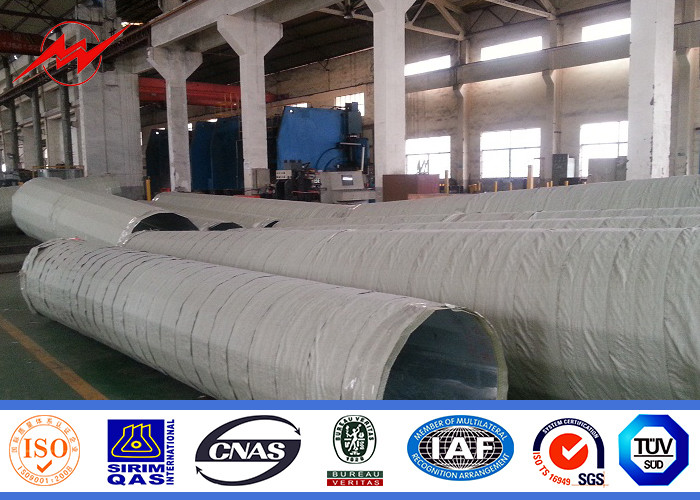

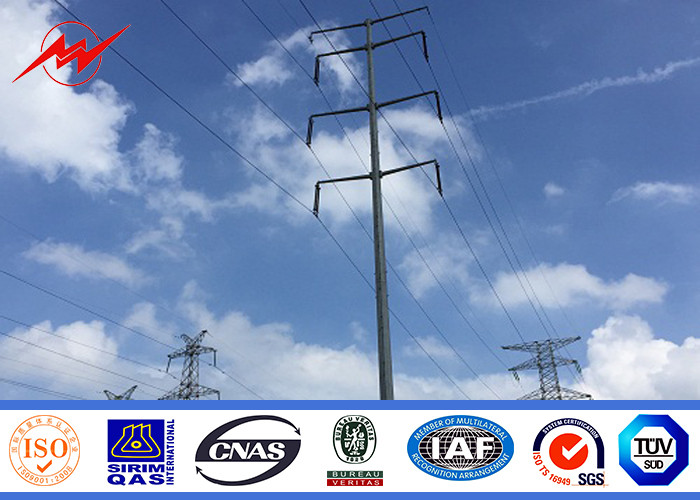

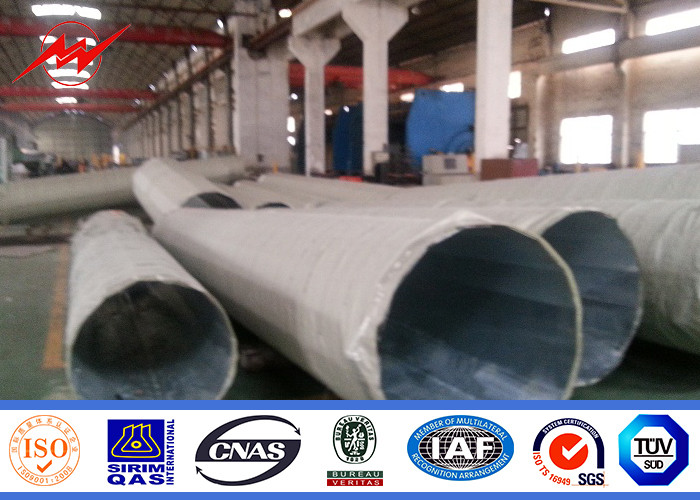

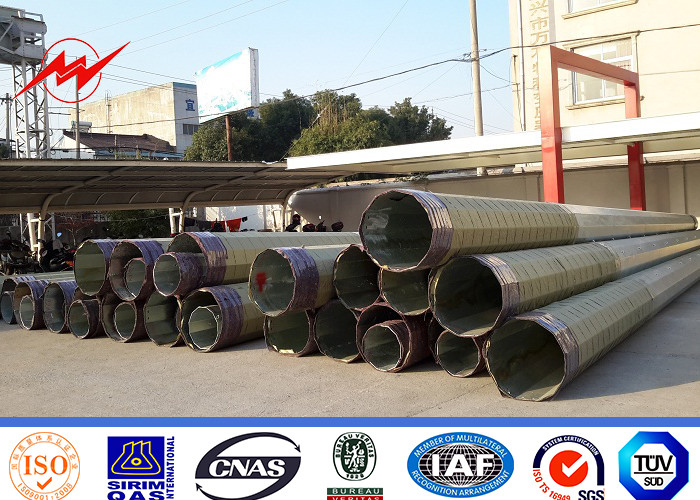

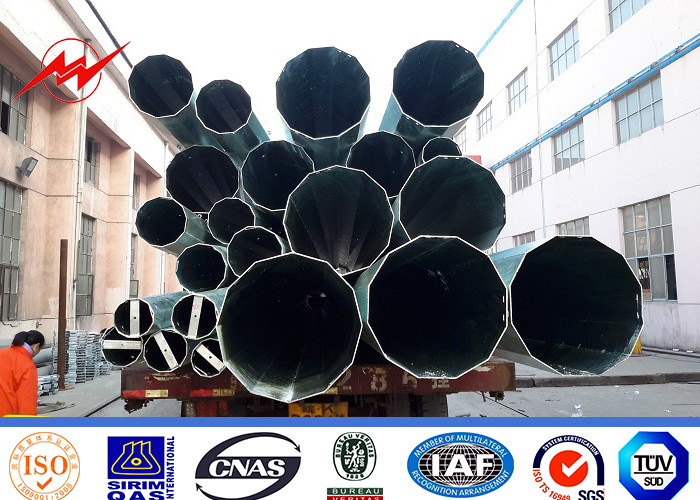

More Pictures:
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
