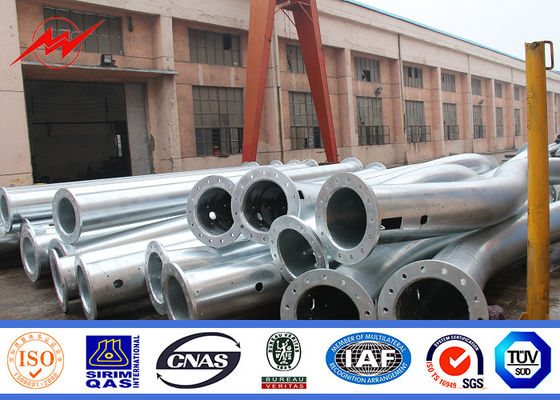

صورة كبيرة :  Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: MilkyWay
إصدار الشهادات: ISO9001/BV/SGS
Model Number: Galvanized Steel Pole

شروط الدفع والشحن:

Minimum Order Quantity: 1 pcs
الأسعار: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
مفصلة وصف المنتج
Product Name: Galvanized Steel Pole Wind Speed: 30m/s
Welding standard: AWS D 1.1 /BS EN 1011-1,BS EN 1011-2 Design: Customized
Material: Q345 Lift time: 50 years
Warranty: 15 years

 Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm





 Description:
 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.

 Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm





 Specifications:



Height

From 6 m to 15 m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,
street way etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
              Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Optical assembly of lighting fixture

IP 65

Electroshock resistant protective grade

Grade  Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Working atmosphere of lighting fixture

-35 ℃~+45 ℃

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Style

Size and styles are veriable as per customer request





 Packages:Standard seaworthy

 Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm







 Application:
 Highway Seamless Steel Pipe                                Park Seamless Steel Pipe
 Main Roads Seamless Steel Pipe                         Dock Seamless Steel Pipe
 Secondary Roads Seamless Steel Pipe              Stadium Seamless Steel Pipe
 Storage-yar Seamless Steel Pipe                         Overpass Seamless Steel Pipe
 Industrial-Plant Seamless Steel                            Toll-Station Seamless Steel Pipe



 Park 6m Powder Coating Galvanized Steel Pole One Section with Cross Arm
