Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles

الصين Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles المزود

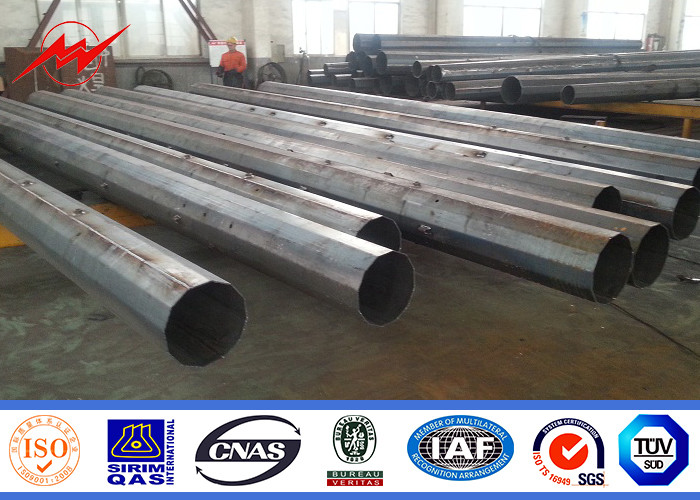

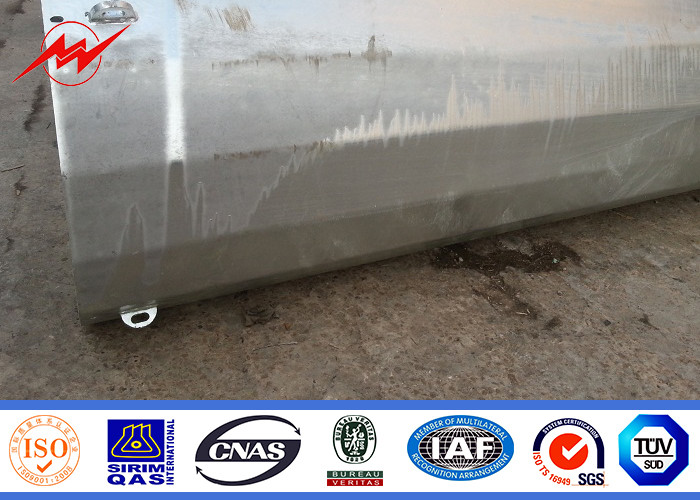

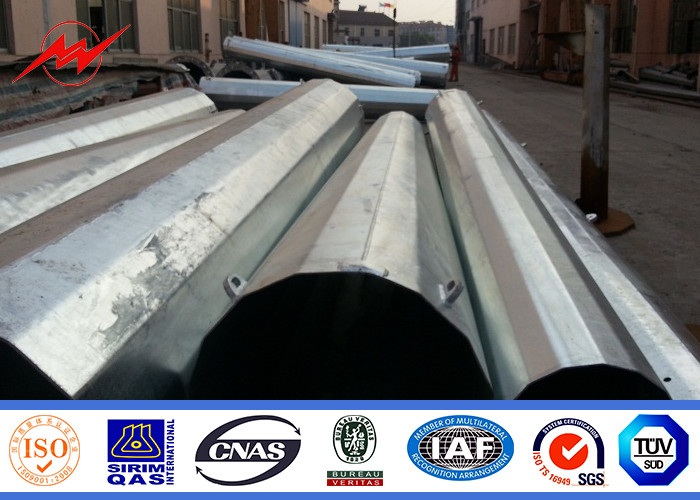

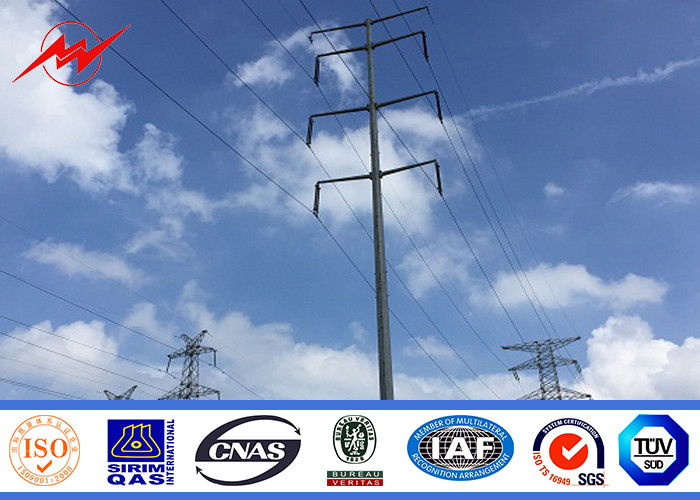

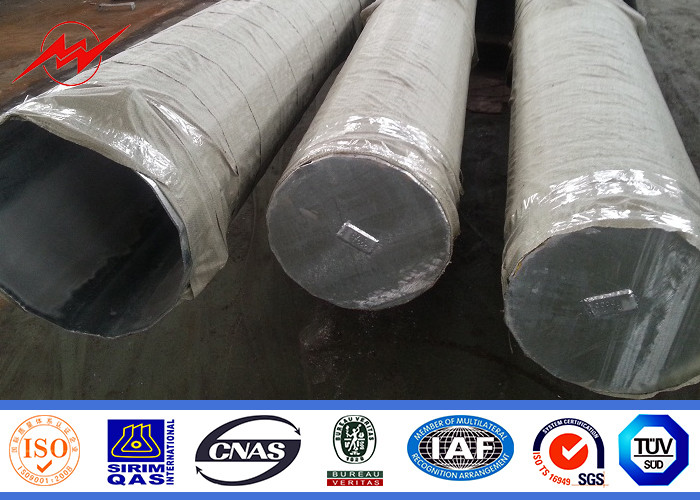

Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles المزود Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles المزود Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles المزود Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles المزود Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles المزود

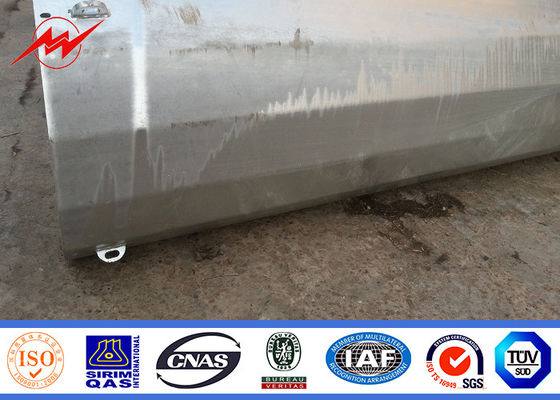

صورة كبيرة :  Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: MilkyWay
إصدار الشهادات: ISO9001/BV/SGS
Model Number: Steel Utility Poles

شروط الدفع والشحن:

Minimum Order Quantity: 1 pcs
الأسعار: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
مفصلة وصف المنتج
Product Name: Steel Power Utility Poles Application: Power Transmission Line
Welding standard: AWS D1.1 Surface Treatment: Hot Dip Galvanized
Galvanization standard: ASTM A123 Warranty Time: 15 years

 Polygonal 10KV-550KV GR50 Steel Power Utility Pole with Galvanization


 Specifications:



Types

Length

45ft 50ft 55ft 60ft 65ft 70ft
13.75m 15.25m 16.80m 18.30m 19.85m 21.35m
B ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 345 370 395 415 435 455
Thickness (mm) 6 6 6 6 6 6
E ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 545 585 625 660 700 740
Thickness (mm) 6 6 6 6 6 6
C ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 600 645 690 730 770 805
Thickness (mm) 6 6 6 6 6 6
D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 680 730 725 765 755 790
Thickness (mm) 6 6 7 7 8 8
HS ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 340 360 385 400 420 440
Thickness (mm) 6 6 6 6 6 6
HT ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 485 520 550 580 615 645
Thickness (mm) 6 6 6 6 6 6
3T ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 520 540 565 595 615 640
Thickness (mm) 6 6 6 6 6 6
3D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 585 620 650 680 715 765
Thickness (mm) 6 6 6 6 6 6






 Steel

 All of our material are purchased from famous mill factory to assure the quality
 A mill certificate issued by the mill factory with stamp and signature must be provided before unload the  material in our factory ,otherwise we have our reason to refuse the material .
 Before put into production ,all the material must pass the chemical and physical analysis to make sure  that they have meet the requested strength and component.




 Quality Control
 We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production  to ensure the
 product compliance to the specification/standards. Careful inspections are carried out by highly trained    inspection
 engineers during every procedure from raw material stage to finished product and delivery.
  Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.

 Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles





 More Projects:

Polygonal 10KV - 550KV GR50 Steel Power Poles Galvanization High Mast Poles
