Polygonal 33KV 12m Electrical Transmission Steel Utility Pole With Cross Arms

صورة كبيرة : Polygonal 33KV 12m Electrical Transmission Steel Utility Pole With Cross Arms

تفاصيل المنتج:

مكان المنشأ:	China
اسم العلامة التجارية:	MilkyWay
إصدار الشهادات:	ISO9001/BV/
رقم الموديل:	Steel Utility Pole

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 pcs
الأسعار:	Negotiation
تفاصيل التغليف:	As customer request
وقت التسليم:	20 working days after received your payment
شروط الدفع:	T/T, L/C at sight
القدرة على العرض:	300pcs per day

اتصل

مفصلة وصف المنتج

Product Name:	Steel Utility Pole	Application:	33KV Electrical Power Distribution
Quality Control:	ISO 9001	Welding Standard:	AWS D 1.1
Surface treatment:	Galvanization	Dimenstion torlance:	+- 2%
تسليط الضوء:	أعمدة الطاقة الكهربائية,الكهربائية نقل البولنديين , high voltage pole

Polygonal 33KV 12m Steel Utility Pole for Electrical Transmission With Cross Arms

Specifications:

Height	From 9 meter to 100 meter
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal or Conical
Material	Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400
Power Capacity	10kV to 220kV
Tolerance of the dimension	According to client’s requirement.
Surface treatment	Hot dip galvanized Following ASTM A 123, or any other standard by client required.
Joint of Poles	Slip joint, flanged connected
Standard	ISO 9001:2008
Length of per section	Within 14 meter once forming
Welding Standard	AWS (American Welding Society ) D 1.1
Thickness	1 mm to 36mm
Production Process	Raw material test → Cutting →bending →Welding (longitudinal ) →Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Packages	Packing with plastic paper or according to client’s request.

Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

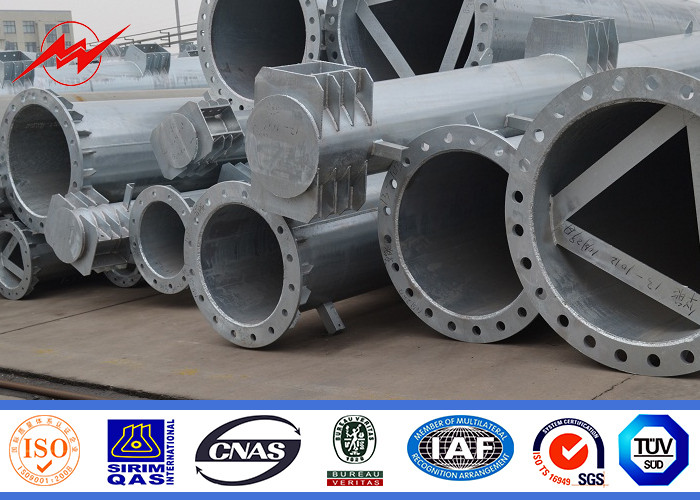

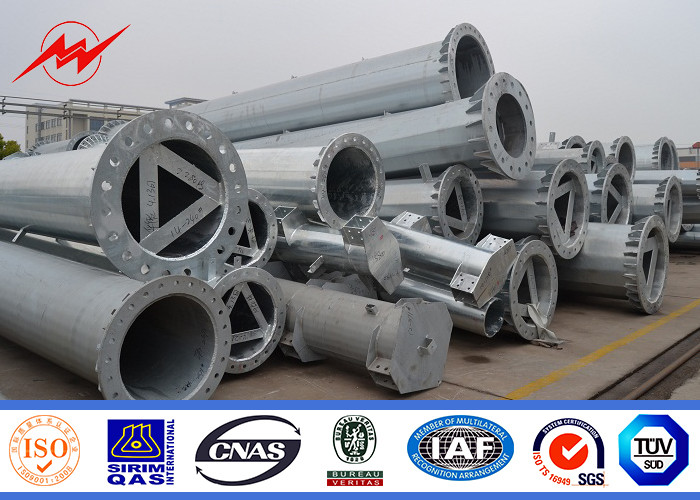

Polygonal 33KV 12m Electrical Transmission Steel Utility Pole With Cross Arms 0

Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel

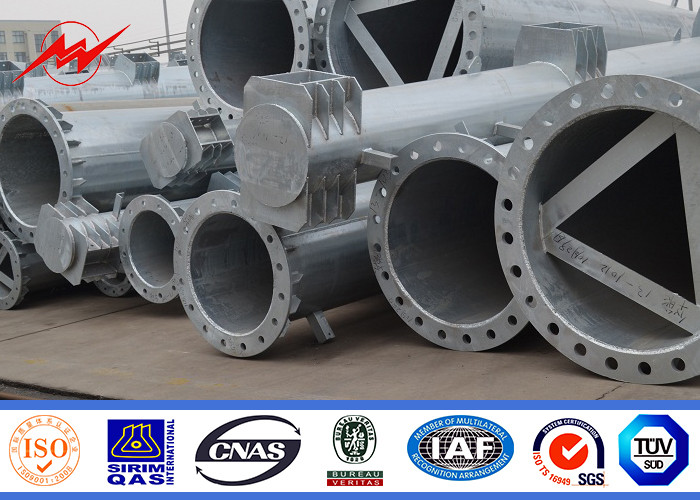

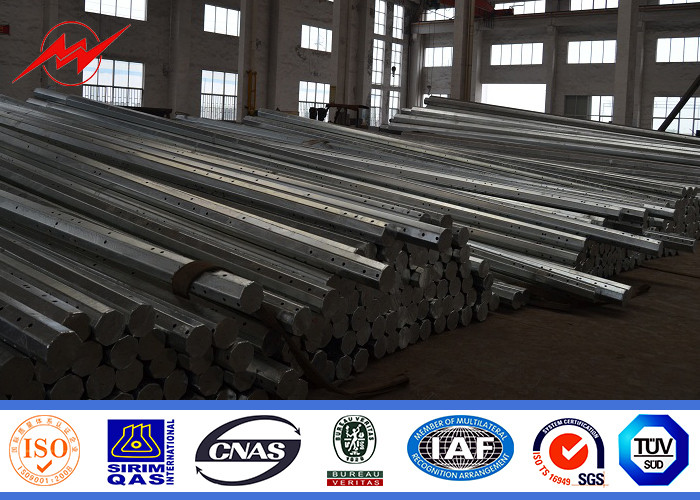

Polygonal 33KV 12m Electrical Transmission Steel Utility Pole With Cross Arms 1
