Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles

شهادة
الصين Jiangsu milky way steel poles co.,ltd الشهادات
الصين Jiangsu milky way steel poles co.,ltd الشهادات
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

ابن دردش الآن

Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles

الصين Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles المزود
Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles المزود Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles المزود Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles المزود Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles المزود

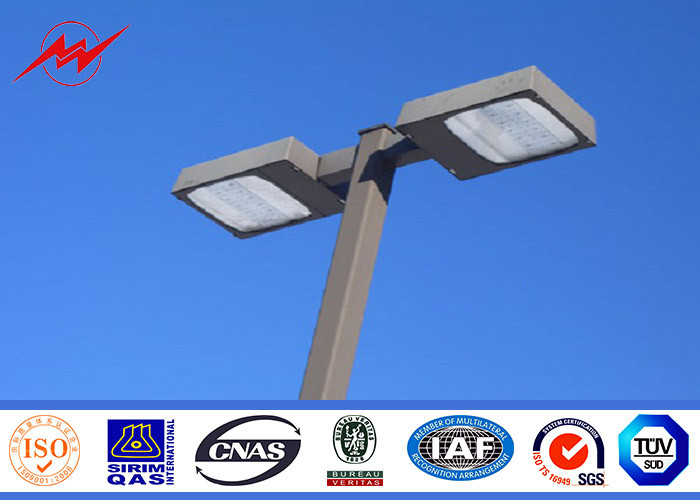

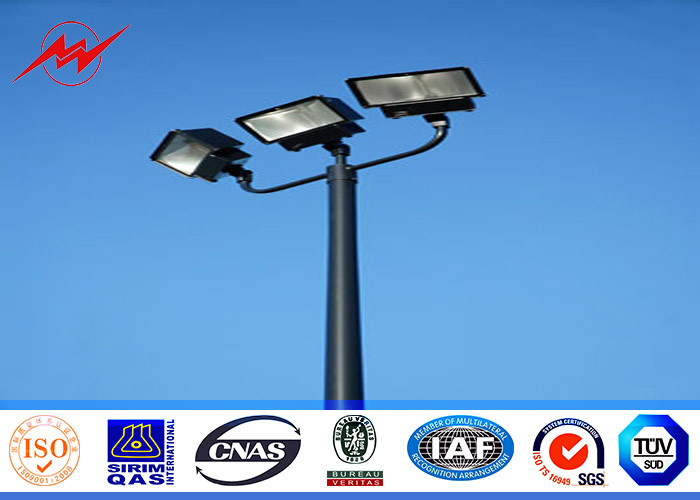

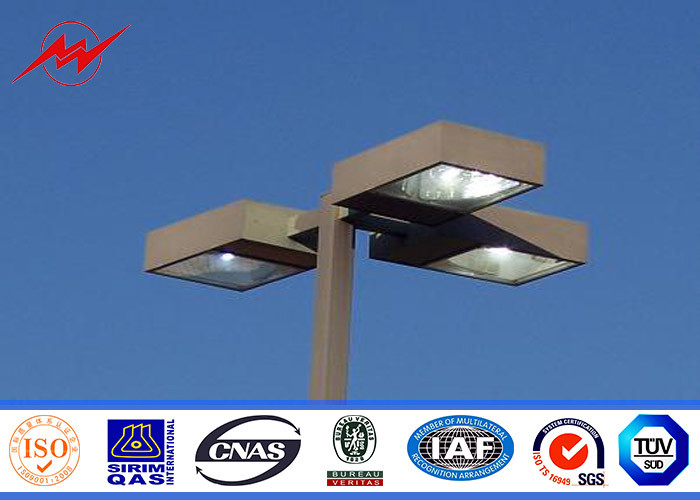

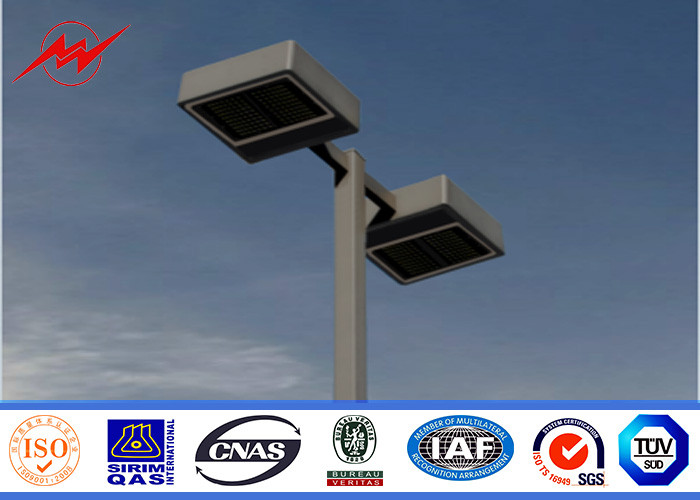

صورة كبيرة :  Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles

تفاصيل المنتج:

Place of Origin: Yixing,Jiangsu,China
اسم العلامة التجارية: Milky Way
إصدار الشهادات: ISO9001
Model Number: Parking Lot Light Pole

شروط الدفع والشحن:

Minimum Order Quantity: 1 Poles
الأسعار: Negotation
Packaging Details: Naked Package or customerized
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
اتصل
مفصلة وصف المنتج
Height: 8m Light Quantity: two to four lights
Light Shape: square type Surface Treatment: galvanization and powder coating
Pole Shape: Round,octagonal Average gavanzation thickness: according to the pole thickness
تسليط الضوء:

street lamp pole,galvanized street light pole

,

galvanized street light pole

Outdoor Round 6m SS355JR material Parking Lot Light Pole with three lamp for on ground parking lot lighting




Quick Information


Parking Lot Light Pole is a lighting application solution achieved by fundamental design and ideally suited to residential street lighting and commercial lighting purposes. The Avenue range’s standard maximum height is 12m with a standard maximum outreach of 4.5m (tapered round) and 3m (tapered octagonal), however different heights and outreaches can be designed.



Quick Details for Parking Lot Light Pole



Item 6 MTR
Material Construction SS355JR
No. of Longitudinal Welds Single Pole
Cross section of mast in polygon((No. of Sides) Round
Thickness 2.5mm,2.75mm,3mm,3.5mm,4mm
Individual Section’s Length 6000 mm
Base & Top dia (OAF) 60mm-300mm
Thickness of galvanization(Average) 75 micros


Prodcut Process

Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles 0

MATERIAL

Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.
Main Material is Q235,Q345,Gr65 or as specified in the customer specification.

FINISHING

Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.

No welding, cutting or drilling is done after galvanizing.

The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.

Application:



Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles 1

SHAPE

1. Height:The street lighting Poles of heights from 4m up to 20m covering almost all of the outdoor street lighting requirements, are usually made out of tapered steel shafts with octagonal or conical shape, with dimensions complying with the design structural analysis, international standards requirements, and as per customer requirements.

2. Pole Sections: Only poles with heights up to 12 meters are made from one shaft segment. Poles up to 20m in height are made from two segments with minimum overlap length of 1.5 times the diameter of bottom of the upper segment.

3. Shafts: Shafts are made from steel sheet folded to the required shape and welded longitudinally by automatic arc welding machine.

4. Base Plate: Base plate is square in shape with slotted holes suitable for anchor bolts. Base plate is welded to the bottom of the shaft by double fillet weld, according to International standards.

5. Brackets: The brackets to carry the light fittings are in shape and dimensions complying with the customer requirements and the specifications of the light fittings. Shaft top is equipped with nuts welded to the shaft  as shown on our drawings.

6. Anchor Bolt: Anchor bolts to fix the base plate to the concrete foundation are supplied with the required nuts and washers as per the structural analysis.

7: Service Door: Door opening size and location is as per the customer requirements and its complying with the dimensions of the cut-out. Door opening is reinforced to maintain shaft strength.

8. Lamp:LED light is available or specified in the customer requirement.



Product Design



Round 6m Three Lamp Parking Light Poles / Commercial Outdoor Light Poles 2

Company:

Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
