Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV

شهادة
نوعية جيدة الكهربائية قطب السلطة للمبيعات
نوعية جيدة الكهربائية قطب السلطة للمبيعات
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

ابن دردش الآن

Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV

الصين Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV المزود
Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV المزود Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV المزود Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV المزود Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV المزود Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV المزود

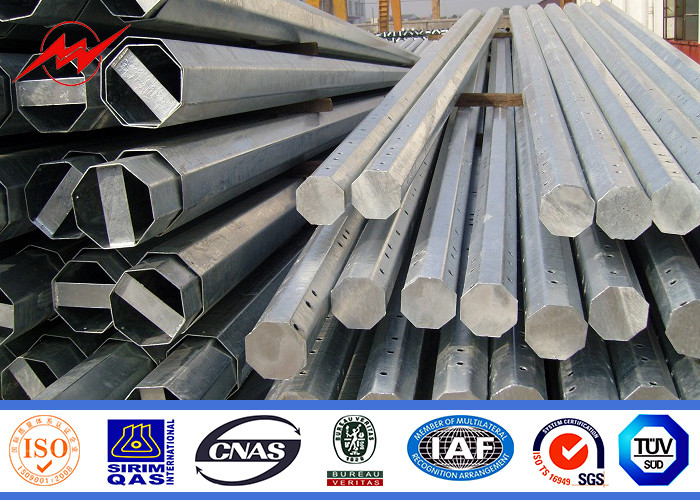

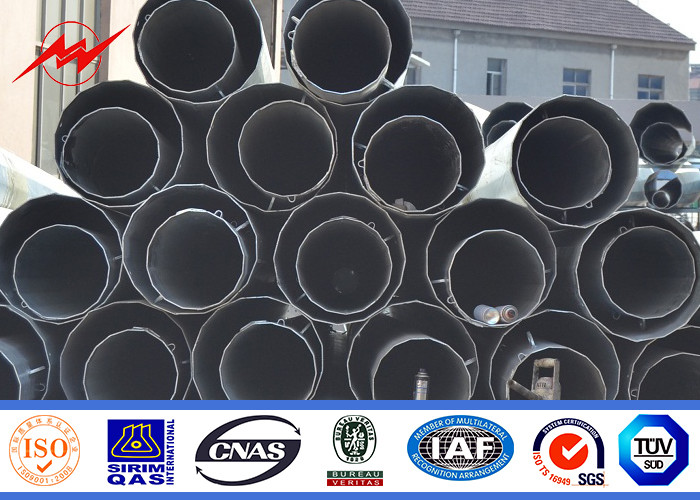

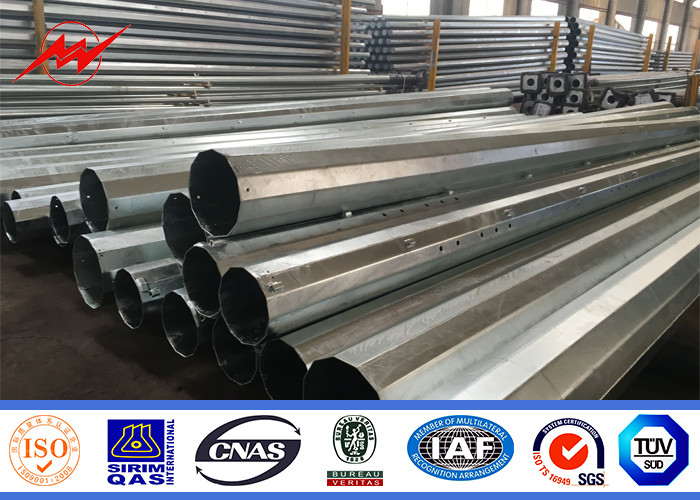

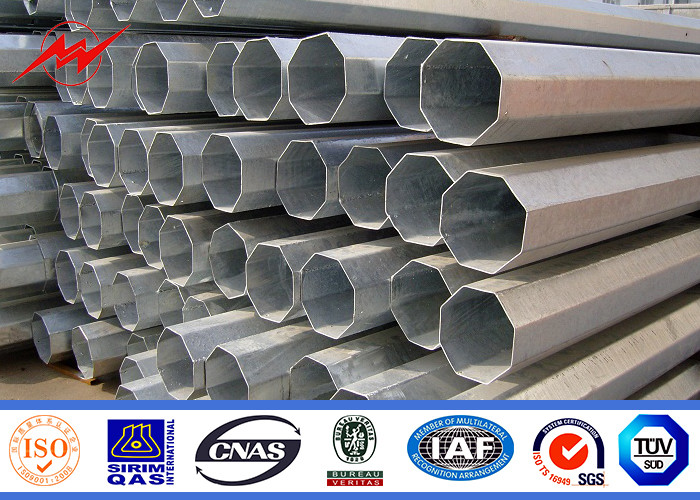

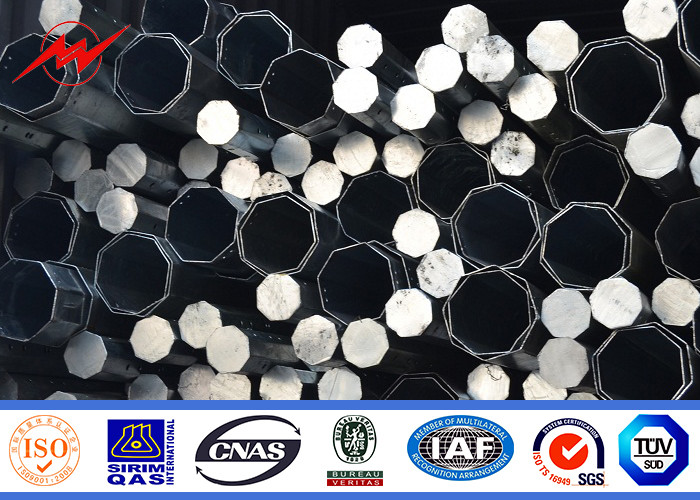

صورة كبيرة :  Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: MilkyWay
إصدار الشهادات: ISO9001/BV/SGS
Model Number: Steel Utility Poles

شروط الدفع والشحن:

Minimum Order Quantity: 1 pcs
الأسعار: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
مفصلة وصف المنتج
Product Name: Steel Utility Poles Application: Power Transmission Line
Welding standard: AWS D1.1 Surface Treatment: Hot Dip Galvanized
Power Capacity: 220kV Life Time: 50 years

10KV-220KV Single Circuit GR50 Steel Utility Pole with Galvanization


 Specifications:



Types

Length

45ft 50ft 55ft 60ft 65ft 70ft
13.75m 15.25m 16.80m 18.30m 19.85m 21.35m
B ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 345 370 395 415 435 455
Thickness (mm) 6 6 6 6 6 6
E ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 545 585 625 660 700 740
Thickness (mm) 6 6 6 6 6 6
C ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 600 645 690 730 770 805
Thickness (mm) 6 6 6 6 6 6
D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 680 730 725 765 755 790
Thickness (mm) 6 6 7 7 8 8
HS ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 340 360 385 400 420 440
Thickness (mm) 6 6 6 6 6 6
HT ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 485 520 550 580 615 645
Thickness (mm) 6 6 6 6 6 6
3T ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 520 540 565 595 615 640
Thickness (mm) 6 6 6 6 6 6
3D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 585 620 650 680 715 765
Thickness (mm) 6 6 6 6 6 6






 Steel

Steel Material Grade
China GB America ASTM ASME Japan JIS Europen
EN
Gemany
DIN
England
BS
International
ISO
16Mn
14MnNd
Q345(A.B.C.D.E)
A572MGr.50
A633MGr.C
A633MGr.D
SM490A
SM490B
SM490C
S355JR
S355JOS
355J2G3
S355J2G
4S355K2
G3
S355K2G
4S355N
S355NL
St52-3 50A
50B
50C
50D
50DD
E355DD
E355E
Fe510B
Fe510D
WH60/Q460
( C.D.E)
A572MGr.65 SM570 S460N
S460NL
StE460 55C
55E
E460C
E460D
Q235
( A.B.C.D)
Q275
20
25
30
35
40
45
50
55
50Mn
A283MGr.C
A283MGr.D
1020
1025
1030
1035
1040
1045
1050
1055
1053
SS400
SM400( A B)
SS490
S20CS22C
S25C S28C
S30C S33C
S35C S38C
S40C S43C
S45C S48C
S50C S53C
S55C S58C
SWRH52B
S235JR
S235JO
S235J2G
3
1C22
1C25
1C30
1C35
1C40
1C45
1C50
1C55
2C50
St37-2
St37-3
1C22
1C25
1C30
1C35
1C40
1C45
1C50
1C55
2C50
40A
40B
40C
40D
1C22
1C25
1C30
1C35
1C40
1C45
1C50
1C55
2C50
Fe360
( A.B.C.D)
Fe430A
C25E4
C30E4
C35E4
C40E4
C45E4
C50E4
C55E4
SL, SM

Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV


 Welding
 We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
 Welding Standard :AWS ( American Welding Society ) D 1.1




 Quality Control
 We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production  to ensure the
 product compliance to the specification/standards. Careful inspections are carried out by highly trained    inspection
 engineers during every procedure from raw material stage to finished product and delivery.






 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
 Single Circuit GR50 Steel Utility Pole AWS D1.1 Hot Dip Galvanized 220kV
