20m High Mast Tower Tubular Steel Monopole Communication Tower With Galvanization

صورة كبيرة : 20m High Mast Tower Tubular Steel Monopole Communication Tower With Galvanization

تفاصيل المنتج:

مكان المنشأ:	China
اسم العلامة التجارية:	MilkyWay
إصدار الشهادات:	ISO9001/BV/
رقم الموديل:	High Mast Light

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 pcs
الأسعار:	Negotiation
تفاصيل التغليف:	As customer request
وقت التسليم:	20 working days after received your payment
شروط الدفع:	T/T, L/C at sight
القدرة على العرض:	300pcs per day

اتصل

مفصلة وصف المنتج

Product Name:	High Mast Tower	Application:	Parking Lot Lighting
Torlance of dimenstion:	+-0.02	Galvanization Thickness:	Average 86μm
Thickness:	1 mm to 36 mm	Warranty time:	15 years
تسليط الضوء:	,مربع ضوء البولنديين , square light poles

20m high mast tubular steel monopole communication tower

Specifications:

Specification:	20m high mast tubular steel monopole communication tower
Type	high mast pole
Shape	conical, hexagonal and octagonal
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 14m once forming without slip joint.
high mast pole suit for	city square,wharf,stadium
Option of high mast pole	Height from 20m to 35m Flange mounted or planted type
Production Process of high mast pole	Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages

Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone- shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel

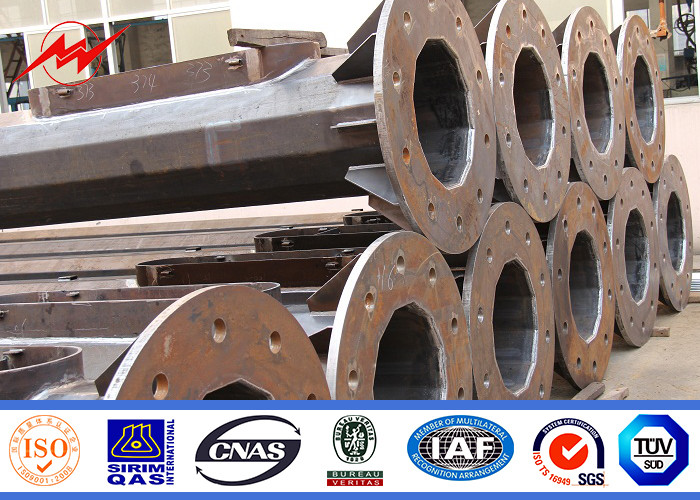

20m High Mast Tower Tubular Steel Monopole Communication Tower With Galvanization 0

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages

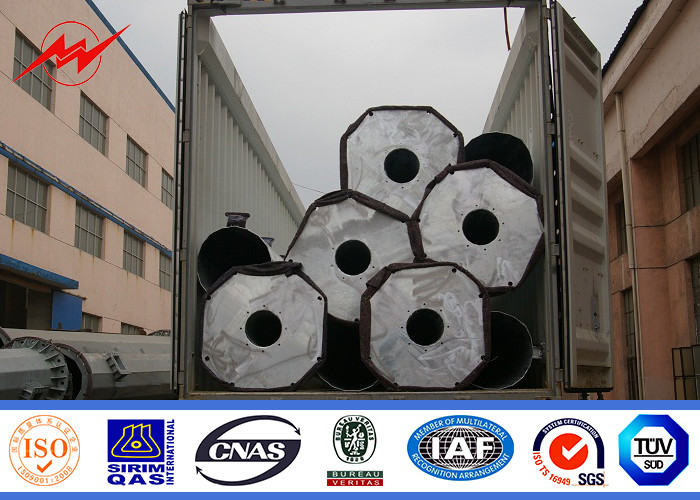

20m High Mast Tower Tubular Steel Monopole Communication Tower With Galvanization 1

Application

Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower

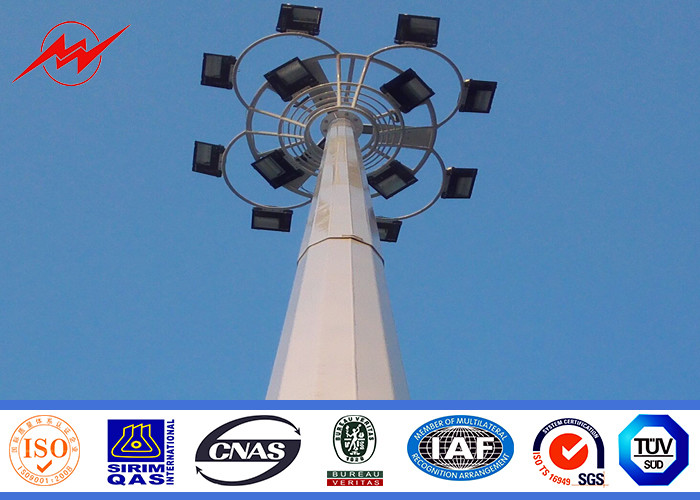

20m High Mast Tower Tubular Steel Monopole Communication Tower With Galvanization 2

Company instruction:

JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
