Outdoor 80M Galvanized Painting High Mast Pole with Lifting System

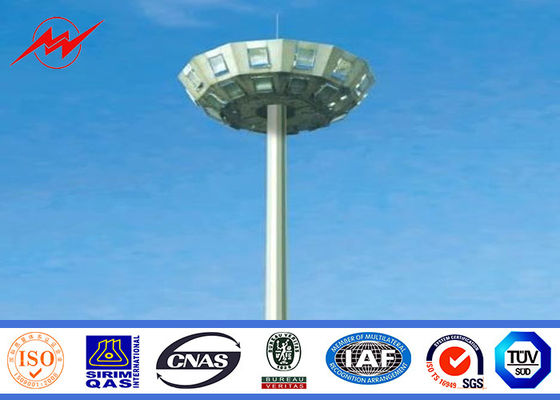

صورة كبيرة : Outdoor 80M Galvanized Painting High Mast Pole with Lifting System

تفاصيل المنتج:

مكان المنشأ:	China
اسم العلامة التجارية:	MilkyWay
إصدار الشهادات:	ISO9001/BV/
رقم الموديل:	High Mast Pole

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 pcs
الأسعار:	Negotiation
تفاصيل التغليف:	As customer request
وقت التسليم:	20 working days after received your payment
شروط الدفع:	T/T, L/C at sight
القدرة على العرض:	300pcs per day

اتصل

مفصلة وصف المنتج

Product Name:	High Mast Pole	Application:	Airport lighting
Thickness:	1 mm to 30 mm	Standard:	ISO
Gavanization standard:	ASTM A 123	Welding standard:	AWS D 1.1
تسليط الضوء:	Park Light pole,Sports Light Poles , Sports Light Poles

Outdoor 80M Galvanized Painting High Mast Pole with Lifting System

Specifications:
1.Height: 20 m ~ 80 m.
2.Max length per section: 14 m
3.Thickness: 2.5mm ~ 30 mm
4.Shape: Conical or polygongal tapered
5.Material: Q235B/A283 M Gr.C / SS400/S235 JR / St 37-2 / Fe 360
Q345B/A572 M Gr. 50/S355 JR / ST 52-3/Fe 510
6.Lamp Power: 250W ~ 2000W (HPSL / MH)
7.Lifting system:Lifter fixed in the inner of the pole with lifting speed of 3 ~ 5 meter per minute
Euqiped with ectromagnetism brake and break-proof device, manual opeation applied under power cut.
8.Head frame: Our headframe can be designed as per customer requirment to carry camera or industrial antenna.
9.Finish: hot dipgalvanization, blasting, powder coating, painting.
10.Galvanization standard: ASTMA 123 / EN ISO 1461
11.Welding: AWS D 1.1 / BS EN 1011-1, BS EN 1011-2
Design: We have our standard pole with our design, OEM and ODM is also accpetable
Packages: Standard seaworthy
Delivery time: with two weeks after confirm the order.

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 70μm.

Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Di mension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Outdoor 80M Galvanized Painting High Mast Pole with Lifting System 0
