Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission

الصين Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission المزود
Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission المزود Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission المزود Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission المزود Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission المزود

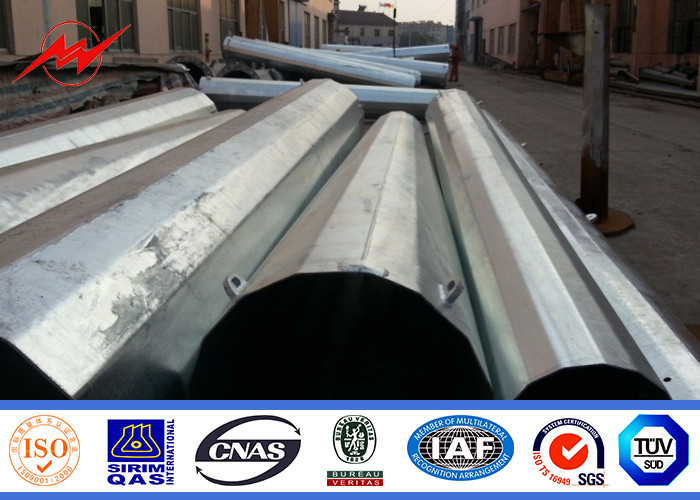

صورة كبيرة :  Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: MilkyWay
إصدار الشهادات: ISO9001/BV/SGS
Model Number: Steel Electric Power Pole

شروط الدفع والشحن:

Minimum Order Quantity: 1 pcs
الأسعار: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
مفصلة وصف المنتج
Product Name: Steel Electric Power Poles Application: Power Distribution
Surface treatment: galvanization powder coating Welding standard: AWS D 1.1
Galvanization standard: ASTM A 123 Lift time: 50 years
Warranty: 15 years

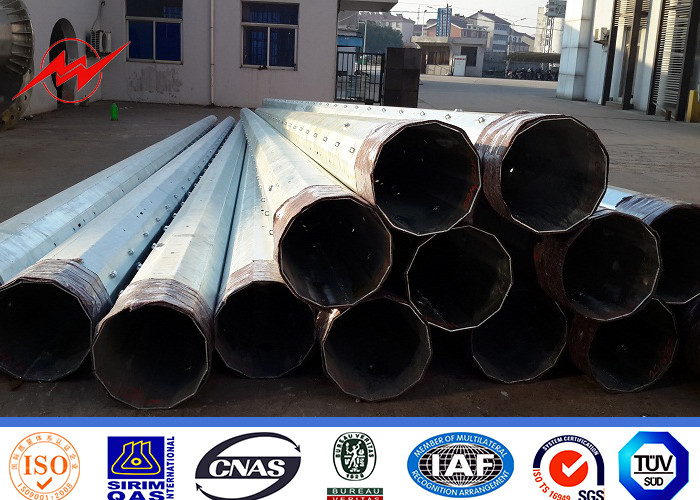

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission





 Specification:



series Outside Diametar Wall Thicness Plain and Tubes
mm Min. mm /SWG Kg./M Mtrs./Ton
15 L 21.3 2 0.947 1058
      M 2.6 1.21 826
      H 3.2 1.44 694
20 L 26.9 2.3 1.38 725
      M 2.6 1.56 641
      H 3.2 1.87 535
25 L 33.7 2.6 1.98 505
      M 3.2 2.41 415
      H 4 2.93 341
32 L 42.4 2.6 2.54 394
      M 3.2 3.1 323
      H 4 3.79 264
40 L 48.3 2.9 3.23 310
      M 3.2 3.56 281
      H 4 4.37 229
50 L 60.3 2.9 4.08 245
      M 3.6 5.03 199
      H 4.5 6.19 162
65 L 76.1 3.2 5.71 175
      M 3.6 6.42 156
      H 4.5 7.93 126
80 L 88.9 3.2 6.72 149
      M 4 8.36 120
      H 4.8 9.9 101
90 L 101.6 3.6 8.7 115
      M 4 9.63 144
      H 4.8 11.5 87
100 L 114.3 3.6 9.75 103
       M 4.5 12.2 82
      H 5.4 14.5 69
110 L 127 4.5 13.6 74
       M 4.8 14.5 69
      H 5.4 16.2 62
125 L 139.7 4.5 15 67
       M 4.8 15.9 63
      H 5.4 17.9 56







 Description:


 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.

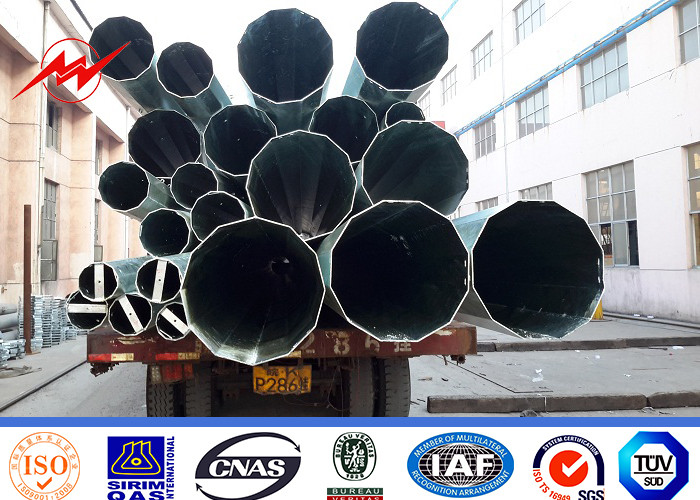

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission

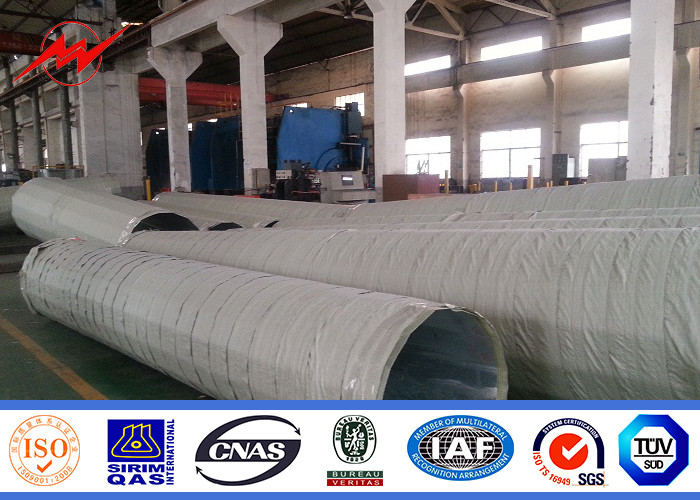

 More Photos:

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission
