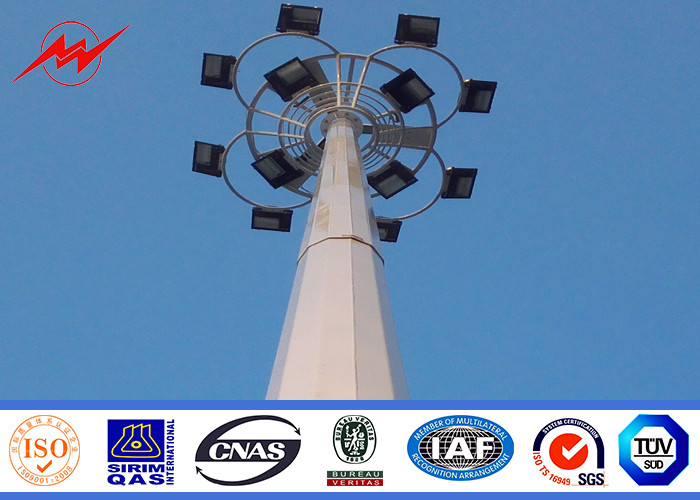

Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel

صورة كبيرة : Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel

تفاصيل المنتج:

مكان المنشأ:	China
اسم العلامة التجارية:	MilkyWay
إصدار الشهادات:	ISO9001/BV/
رقم الموديل:	High Mast Pole

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 pcs
الأسعار:	Negotiation
تفاصيل التغليف:	As customer request
وقت التسليم:	20 working days after received your payment
شروط الدفع:	T/T, L/C at sight
القدرة على العرض:	300pcs per day

اتصل

مفصلة وصف المنتج

Product Name:	High Mast Poles	Application:	Seaport Lighting
Wind Speed:	160km/h	Galvanization Thickness:	Average 86μm
Thickness:	1 mm to 30 mm	Lift time:	50 years
تسليط الضوء:	high mast lighting pole,Sports Light Poles , Sports Light Poles

Slip Joint Bitumen 3mm 20m High Mast Poles with Round Lamp Panel Wind Speed 30m/s

Specifications:

Type	Street Lamp pole, lamp post . Lamp column
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 14m once forming without slip joint.
Suit for	Highway Roadway Residential subdivisions Commercial development
Option	Height from 6m to 12m Flange mounted or planted type Variable arm length from 0.125m to 3.0m with single or double arm type Variable spigot size from 35mm to 60mm.
Production Process	Raw material test → Cutting →Molding or bending →Welidng (longitudinal ) →Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread→Packages

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm

Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel 0

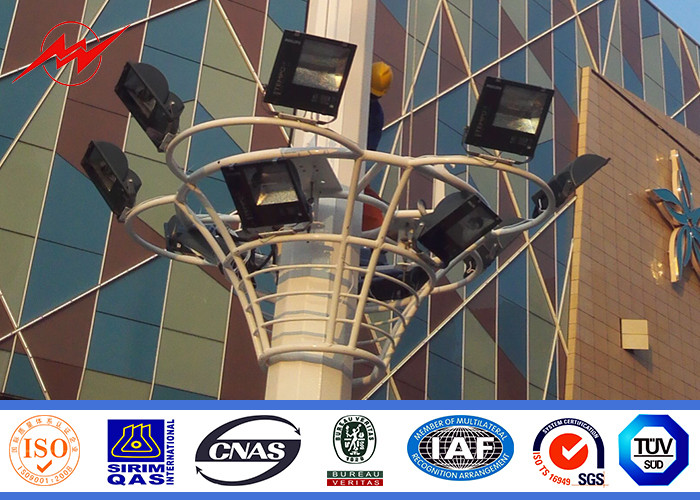

Raising-and-Lowering System Types
A:Single Drum 150/300/600/1000KG
B:Double Drum 800/1000KG
C: Dual Hanger 150/300/600/800/1000KG
D:Double Hoist Main:600/1000KG Sub:150KG

Slip Joint Bitumen 3mm 20m High Mast Light Poles with Round Lamp Panel 1

Company Introduction:
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.

After 20 years of development, our company products are exported to overseas. Pakistan, Germany, Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales, which made us become one of the leading export enterprises in china.
