تفاصيل المنتج:
شروط الدفع والشحن:
|
اسم المنتج: | أعمدة فولاذية كهربائية أعمدة معدنية 35 قدم قطب كهربائي كهربائي مع كابل | اللون: | أي |
---|---|---|---|
شهادة: | شهادة ISO9001 | أوقات الحياة: | 25 سنة |
تسامح: | +/- 2٪ | مادة: | سبيكة |
تسليط الضوء: | عمود الطاقة الفولاذي,أعمدة خط النقل,أعمدة الكهرباء الفولاذية ISO9001 |

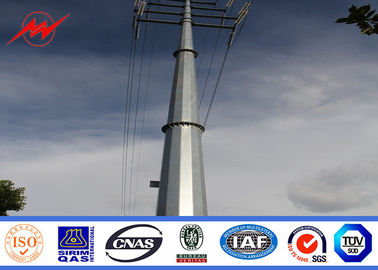

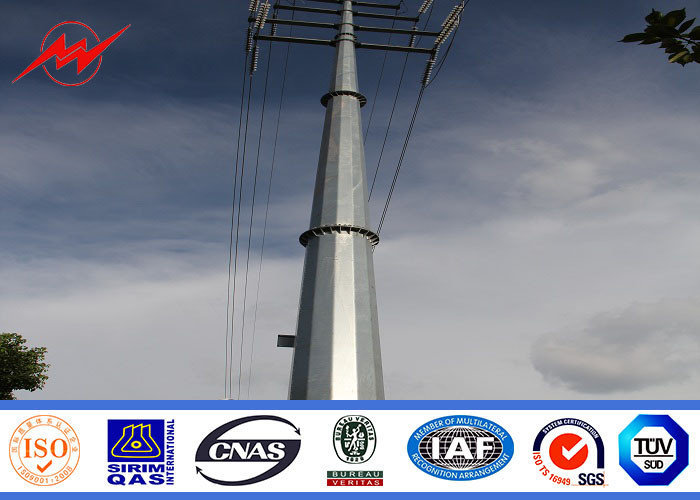

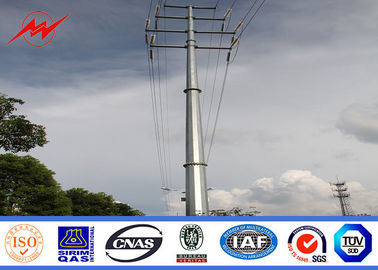

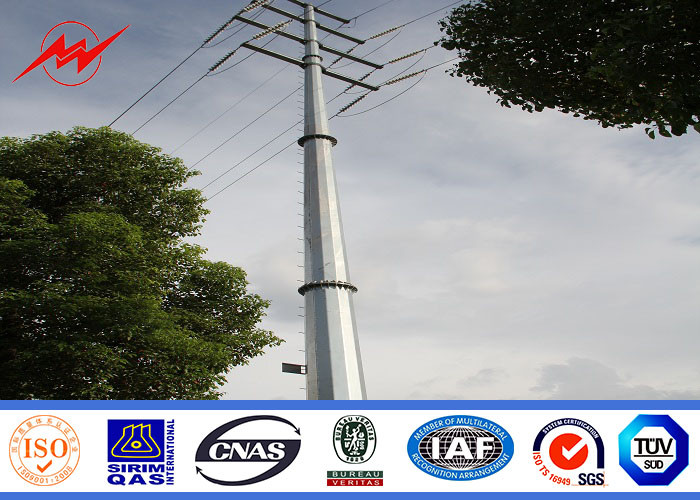

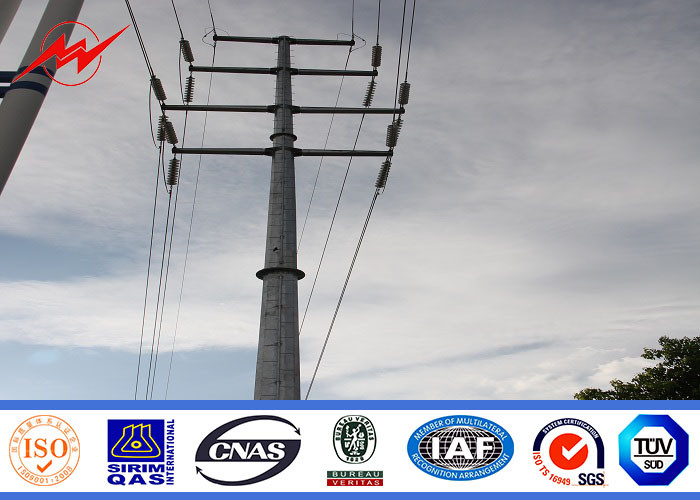

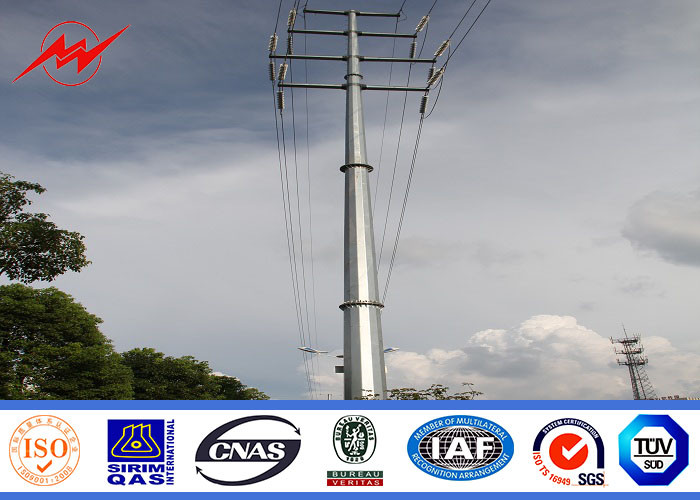

Steel electric poles metal poles 35ft Eleactrical Power Pole with cable
Specification:
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
Marks |
Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
Surface treatment |
Hot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required. |
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode. |
Design of pole |
Against earthquake of 8 grade |
Wind Speed |
160 Km/Hour |
Minimum yield strength |
355 mpa |
Minimum ultimate tensile strength |
490 mpa |
Max ultimate tensile strength |
620 mpa |
Standard |
ISO 9001 |
Length of per section |
Within 14m once forming without slip joint |
Welding |
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness |
1 mm to 30 mm |
Production Process |
Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Competitive Advantage:
1. Easy work: more than 23 years pole field. quickly understand your meaning and let you get your result. |
2. Lowest MOQ: lowest quantity from 1Ton depends on different style . |
3. OEM Accepted: We can produce any pole of your design. |
4. Good Service: We treat clients as friends. |
5. Good Quality: We have very strict quality control system .Good reputation in the market. |
6. Fast & Cheap Express service: We have big discount from forwarder (Long-term Contract with TNT,DHL,UPS,FEDEX,EMS ). |
7. Manufacturer Capacity : 300 pieces/day. |
