Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized

صورة كبيرة : Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	MilkyWay
إصدار الشهادات:	ISO9001/BV/
رقم الموديل:	القطب الصلب المجلفن

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 أجهزة كمبيوتر
الأسعار:	قابل للتفاوض
تفاصيل التغليف:	كطلب العميل
وقت التسليم:	20 يوم عمل بعد استلام الدفع الخاص بك
شروط الدفع:	T/T ، L/C في الأفق
القدرة على العرض:	300 قطعة في اليوم

اتصل

مفصلة وصف المنتج

اسم المنتج:	القطب الصلب المجلفن	تطبيق:	خط النقل
تصميم:	مخصصة	المعالجة السطحية:	الجلفنة بالغمس الساخن
معيار اللحام:	AWS D1.1	سمك الجلفنة:	متوسط 86um
مادة:	Q345
إبراز:	galvanized steel transmission pole,Q345 power transmission pole,hot dip galvanized steel pole , Q345 power transmission pole , hot dip galvanized steel pole

Strong and Sturdy Power Transmission Poles Made from Q345B/A572 and Q235B/A36 Materials

Product Specifications

Attribute	Value
Product Name	Galvanized Steel Pole
Application	Transmission Line
Design	Customized
Surface treatment	Hot dip galvanization
Welding standard	AWS D1.1
Galvanization Thickness	Average 86um
Material	Q345

Technical Specifications

Feature	Specification
Suitable For	11M 836kg Load Weight Transmission Distribution
Shape	Conoid, Multi-pyramidal, Columniform, Polygonal or Conical
Material Options	Q345B/A572 (min yield strength ≥345N/mm²), Q235B/A36 (min yield strength ≥235N/mm²), Q460, ASTM573 GR65/GR50, SS400, SS490, ST52
Dimension Tolerance	±2%
Power Capacity	10KV ~550KV
Safety Factors	8 for conducting wire, 8 for grounding wire
Design Load	300~1000kg applied 50cm from pole top
Surface Treatment	Hot dip galvanized (ASTM A123), color polyester powder, or client-specified
Joint Types	Insert mode, inner flange mode, face-to-face joint mode
Structural Design	Earthquake resistant (8 grade), withstands 160km/h (30m/s) winds
Material Strength	Min yield: 355MPa, Min tensile: 490MPa, Max tensile: 620MPa
Standards	ISO 9001, AWS D1.1 welding standard

10 Advantages of Steel Utility Poles

Easy to Handle
Light Weight
Long Life
Cost Effective
Low Maintenance
Sustainable
Durable
Safe
Aesthetic
Engineered for Strength

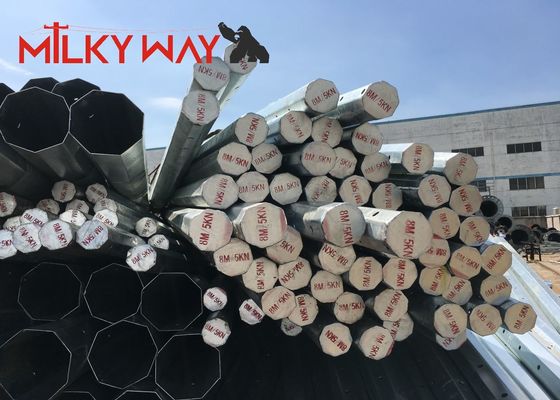

Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized 0

Production Process

Raw material test

Cutting

Bending

Longitudinal welding

Dimension verification

Flange welding

Hole drilling

Sample assembly

Surface cleaning

Galvanization/powder coating/painting

Recalibration

Packaging

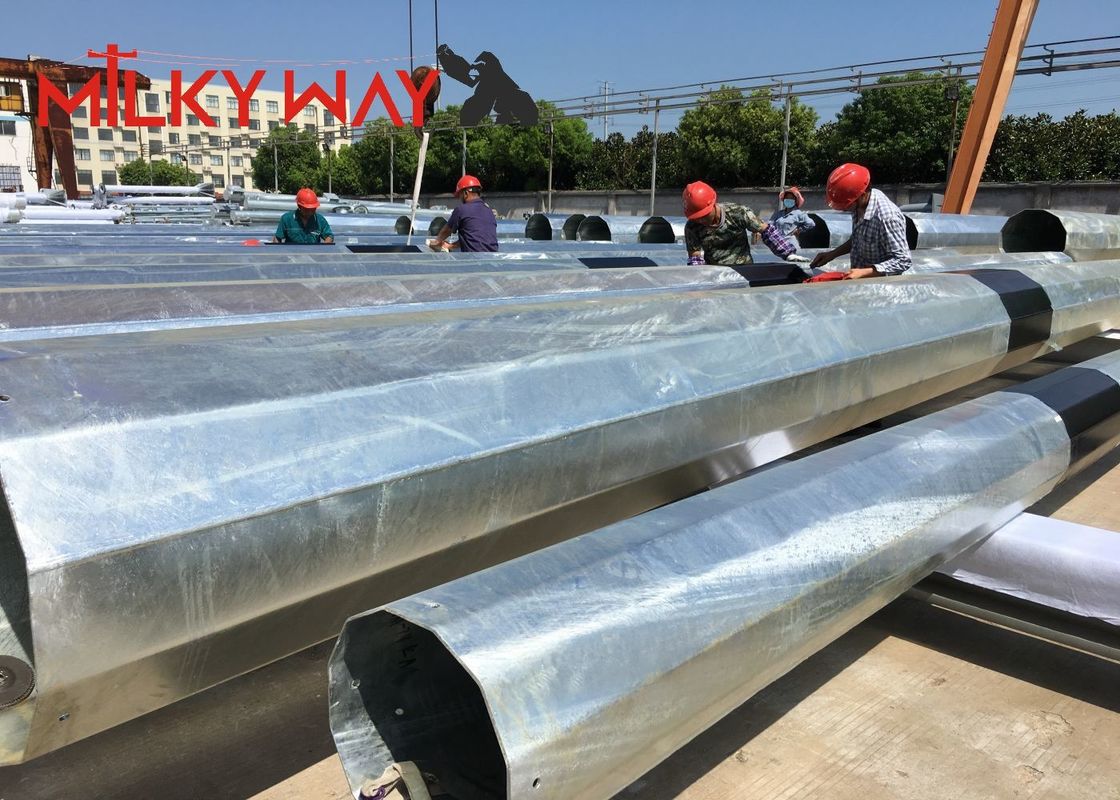

Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized 1

Company Profile

JiangSu Milky Way Steel Poles Co., Ltd. was established in 1988 and is located in Yixing City, Jiangsu Province. With a facility covering 35,000 square meters and annual output value reaching 200 million, we have over 20 years of experience in design and production.

Our product range includes power poles, communication towers, street lighting poles, and steel brackets. We maintain strong technical capabilities, advanced production equipment, and a comprehensive quality management system, ensuring our products meet international advanced standards.
