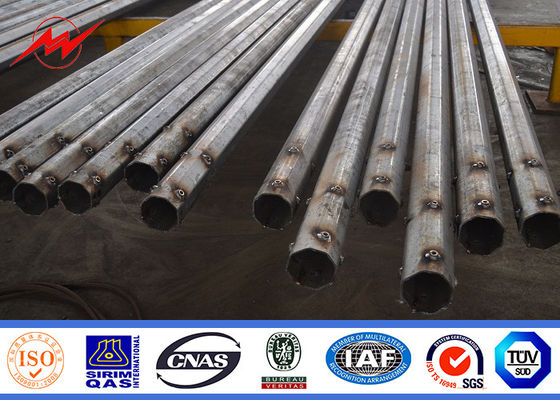

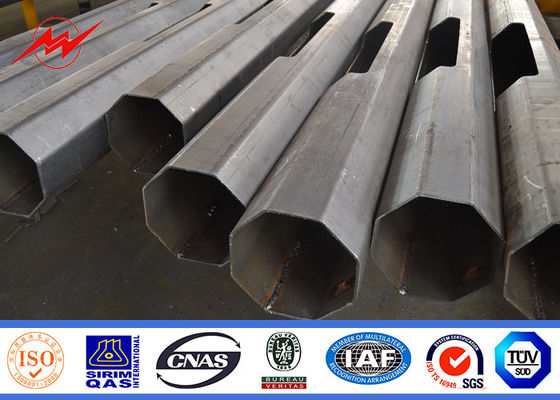

12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms
street lamp pole
,galvanized street light pole
12M Single Arm Street Light Poles Q235 Material for Park Lighting
Specifications:
|
Type |
Street Lamp pole, lamp post . Lamp column |
|
Shape |
Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 SS400, SS490ST52 |
|
Torlance of dimenstion |
-0.02 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
|
Standard |
Octagonal tapered column |
|
Length of per section |
Within 14m once forming without slip joint. |
|
Suit for |
Highway |
|
Option |
Height from 6m to 12m |
|
Production Process |
Raw material test → Cutting →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread→Packages |
The information to inquiry or purchase
-Steel pole height
-Dimension of the flange
-Position and dimension of the service door
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Wind speed
-Destination port
-Other.
Package:
Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.
