2 Sections 60FT Q345 Steel Utility Pole for Electrical Power Transmission

صورة كبيرة : 2 Sections 60FT Q345 Steel Utility Pole for Electrical Power Transmission

تفاصيل المنتج:

مكان المنشأ:	China
اسم العلامة التجارية:	MilkyWay
إصدار الشهادات:	ISO9001/BV/
رقم الموديل:	Steel Utility Pole

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 pcs
الأسعار:	Negotiation
تفاصيل التغليف:	As customer request
وقت التسليم:	20 working days after received your payment
شروط الدفع:	T/T, L/C at sight
القدرة على العرض:	300pcs per day

اتصل

مفصلة وصف المنتج

Product Name:	Steel Utility Pole	Application:	Power Transmission
Galvanization Thickness:	Average 70μm	Power:	10 KV ~550 KV
Minimum yield strength:	355 mpa	Max ultimate tensile strength:	620 mpa
Thickness:	1 mm to 30 mm
تسليط الضوء:	metal utility poles,electrical utility poles , electrical utility poles

2 Sections 60FT Q345 Steel Utility Pole for Electrical Power Transmission

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

2 Sections 60FT Q345 Steel Utility Pole for Electrical Power Transmission 0

Specifications:

Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power
Standard	ISO 9001
Torlance of the dimension	+- 2%
Power	10 KV ~550 KV
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Row material test → Cutting →Molding or bending → Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

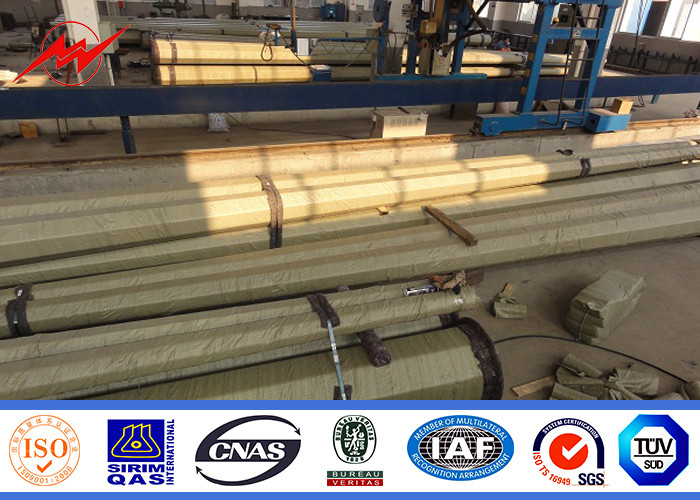

Packages:

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data

2 Sections 60FT Q345 Steel Utility Pole for Electrical Power Transmission 1

Company Introduction:
1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .
2.Introducing ISO management ,We are awared ISO 9001:2008 certificate .
3.Lofting and design software :We have transmisson power pole design software which can help us design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly .

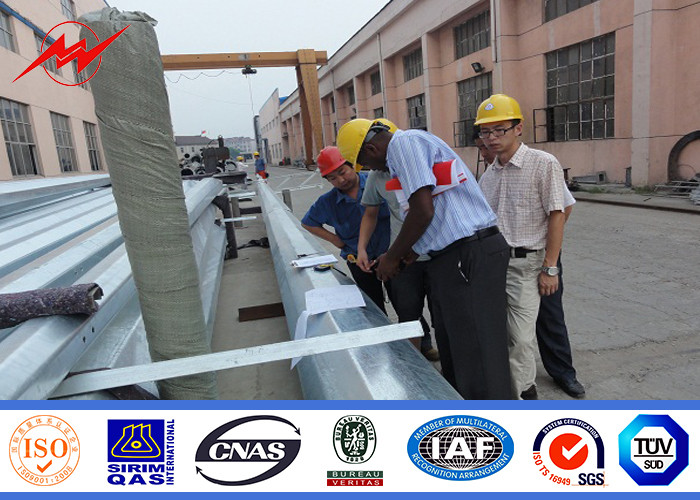

4.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment .
5.We are always persisting in horzontal cooperation with domestic senior project institute and technical colleges .The enterprise also has an highly qualified team working at R&D ,manufacure ,QC ,aftersales service and other important positions

2 Sections 60FT Q345 Steel Utility Pole for Electrical Power Transmission 2
