Specifications:
| Ground Rod Size List | ||||||||
| Small Size | ||||||||
| Model | Diameter | Copper Thickness | Length | N.W. | Packing | |||
| inch | mm | Mil | mm | Feet | mm | kgs/pc | pc/bundles | |
| YH-8 | 8 | 10 | 0.254 | 3 | 900 | 0.45 | 20 | |
| YH-8 | 8 | 10 | 0.254 | 4 | 1200 | 0.45 | 20 | |
| YH-8 | 8 | 10 | 0.254 | 5 | 1500 | 0.45 | 20 | |
| YH-9 | 9 | 10 | 0.254 | 3 | 900 | 0.57 | 20 | |
| YH-9 | 9 | 10 | 0.254 | 4 | 1200 | 0.57 | 20 | |
| YH-9 | 9 | 10 | 0.254 | 5 | 1500 | 0.57 | 20 | |
| YH-10 | 10 | 10 | 0.254 | 3 | 900 | 0.7 | 20 | |
| YH-10 | 10 | 10 | 0.254 | 4 | 1200 | 0.7 | 20 | |
| YH-10 | 10 | 10 | 0.254 | 5 | 1500 | 0.7 | 20 | |
| YH-11 | 11 | 10 | 0.254 | 3 | 900 | 0.85 | 20 | |
| YH-11 | 11 | 10 | 0.254 | 4 | 1200 | 0.85 | 20 | |
| YH-11 | 11 | 10 | 0.254 | 5 | 1500 | 0.85 | 20 | |
| YH-12 | 12 | 10 | 0.254 | 3 | 900 | 1.01 | 20 | |
| YH-12 | 12 | 10 | 0.254 | 4 | 1200 | 1.01 | 20 | |
| YH-12 | 12 | 10 | 0.254 | 5 | 1500 | 1.01 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 3 | 900 | 1.18 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 4 | 1200 | 1.18 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 5 | 1500 | 1.18 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 6 | 1800 | 1.18 | 20 | |
| YH-14 | 5/8 | 14..2 | 10 | 0.254 | 4 | 1200 | 1.54 | 20 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 6 | 1800 | 2.3 | 10 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 8 | 2400 | 3.07 | 10 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 10 | 3000 | 3.84 | 10 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 20 | 6000 | 7.68 | 5 |
| YH-16 | 14.2 | 10 | 0.254 | 4 | 1200 | 1.95 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 6 | 1800 | 2.93 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 8 | 2400 | 3.9 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 10 | 3000 | 4.88 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 20 | 6000 | 9.75 | 5 | |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 4 | 1200 | 2.25 | 10 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 6 | 1800 | 3.38 | 10 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 8 | 2400 | 4.51 | 10 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 10 | 3000 | 5.64 | 7 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 20 | 6000 | 11.27 | 5 |
| YH-18 | 18 | 10 | 0.254 | 4 | 1200 | 2.47 | 10 | |
| YH-18 | 18 | 10 | 0.254 | 10 | 3000 | 6.17 | 7 | |
| YH-18 | 18 | 10 | 0.254 | 20 | 6000 | 12.34 | 5 | |
| YH-20 | 20 | 10 | 0.254 | 6 | 1800 | 4.57 | 10 | |
| YH-20 | 20 | 10 | 0.254 | 8 | 2400 | 6.1 | 10 | |
| YH-20 | 20 | 10 | 0.254 | 10 | 3000 | 7.62 | 7 | |
| YH-20 | 20 | 10 | 0.254 | 20 | 6000 | 15.24 | 5 | |
| YH-20 | 20 | 10 | 0.254 | 8 | 2400 | 6.1 | 10 | |
| YH-22 | 22 | 10 | 0.254 | 10 | 3000 | 9.22 | 7 | |
| YH-22 | 22 | 10 | 0.254 | 6 | 1800 | 5.53 | 10 | |
| YH-25 | 25 | 10 | 0.254 | 8 | 2400 | 9.53 | 10 | |
| YH-25 | 25 | 10 | 0.254 | 10 | 3000 | 11.91 | 7 | |
| YH-25 | 25 | 10 | 0.254 | 20 | 6000 | 23.81 | 5 | |
| Also supply copper layer thickness 0.33mm,0.5mm and 1.0mm | ||||||||
| Also supply any length shorter than 6000mm | ||||||||
Description:

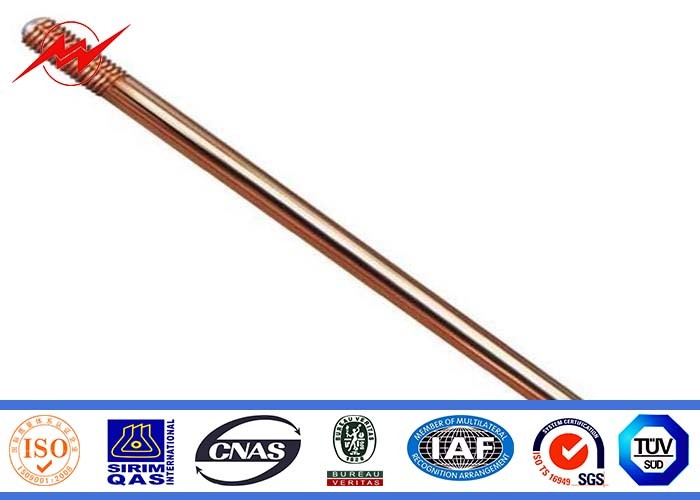

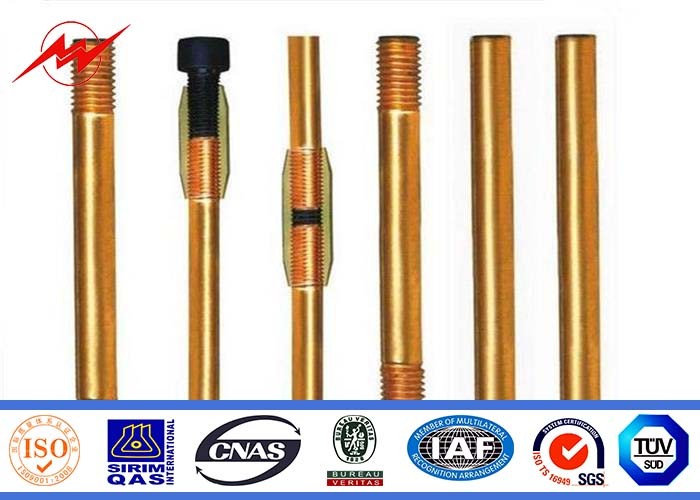

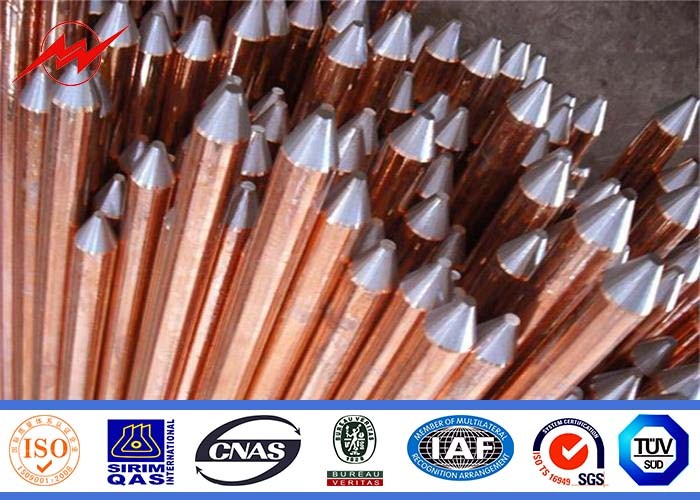

Copper bonded ground rod is mainly used in the grounding device. Due to its good conductivity, corrosion resistance, tensile strength, low prices, etc.,
Copper bonded ground rod can be widely used, and have been recognized by the United States Institute of Electrical and Electronics Engineering (IEEE) standard, BS standard and International Electrotechnical Commission (IEC) standards.
In China, have been recognized in China Sinopec, China National Petroleum, the national electricity company, and gradually be widely used.

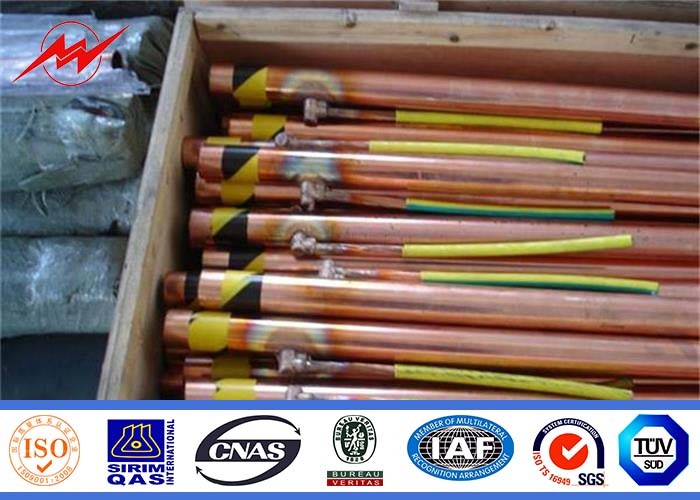

Packaging & Shipping:
Strong packing is available and free of charge ,which is suitable for loading, storage in most popular
condition .Custom packing will be charged reasonably to favor customer’s requirement .
Our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years,
competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
