Specifications:
| Ground Rod Size List | ||||||||
| Small Size | ||||||||
| Model | Diameter | Copper Thickness | Length | N.W. | Packing | |||
| inch | mm | Mil | mm | Feet | mm | kgs/pc | pc/bundles | |
| YH-8 | 8 | 10 | 0.254 | 3 | 900 | 0.45 | 20 | |
| YH-8 | 8 | 10 | 0.254 | 4 | 1200 | 0.45 | 20 | |
| YH-8 | 8 | 10 | 0.254 | 5 | 1500 | 0.45 | 20 | |
| YH-9 | 9 | 10 | 0.254 | 3 | 900 | 0.57 | 20 | |
| YH-9 | 9 | 10 | 0.254 | 4 | 1200 | 0.57 | 20 | |
| YH-9 | 9 | 10 | 0.254 | 5 | 1500 | 0.57 | 20 | |
| YH-10 | 10 | 10 | 0.254 | 3 | 900 | 0.7 | 20 | |
| YH-10 | 10 | 10 | 0.254 | 4 | 1200 | 0.7 | 20 | |
| YH-10 | 10 | 10 | 0.254 | 5 | 1500 | 0.7 | 20 | |
| YH-11 | 11 | 10 | 0.254 | 3 | 900 | 0.85 | 20 | |
| YH-11 | 11 | 10 | 0.254 | 4 | 1200 | 0.85 | 20 | |
| YH-11 | 11 | 10 | 0.254 | 5 | 1500 | 0.85 | 20 | |
| YH-12 | 12 | 10 | 0.254 | 3 | 900 | 1.01 | 20 | |
| YH-12 | 12 | 10 | 0.254 | 4 | 1200 | 1.01 | 20 | |
| YH-12 | 12 | 10 | 0.254 | 5 | 1500 | 1.01 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 3 | 900 | 1.18 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 4 | 1200 | 1.18 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 5 | 1500 | 1.18 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 6 | 1800 | 1.18 | 20 | |
| YH-14 | 5/8 | 14..2 | 10 | 0.254 | 4 | 1200 | 1.54 | 20 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 6 | 1800 | 2.3 | 10 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 8 | 2400 | 3.07 | 10 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 10 | 3000 | 3.84 | 10 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 20 | 6000 | 7.68 | 5 |
| YH-16 | 14.2 | 10 | 0.254 | 4 | 1200 | 1.95 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 6 | 1800 | 2.93 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 8 | 2400 | 3.9 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 10 | 3000 | 4.88 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 20 | 6000 | 9.75 | 5 | |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 4 | 1200 | 2.25 | 10 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 6 | 1800 | 3.38 | 10 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 8 | 2400 | 4.51 | 10 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 10 | 3000 | 5.64 | 7 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 20 | 6000 | 11.27 | 5 |
| YH-18 | 18 | 10 | 0.254 | 4 | 1200 | 2.47 | 10 | |
| YH-18 | 18 | 10 | 0.254 | 10 | 3000 | 6.17 | 7 | |
| YH-18 | 18 | 10 | 0.254 | 20 | 6000 | 12.34 | 5 | |
| YH-20 | 20 | 10 | 0.254 | 6 | 1800 | 4.57 | 10 | |
| YH-20 | 20 | 10 | 0.254 | 8 | 2400 | 6.1 | 10 | |
| YH-20 | 20 | 10 | 0.254 | 10 | 3000 | 7.62 | 7 | |
| YH-20 | 20 | 10 | 0.254 | 20 | 6000 | 15.24 | 5 | |
| YH-20 | 20 | 10 | 0.254 | 8 | 2400 | 6.1 | 10 | |
| YH-22 | 22 | 10 | 0.254 | 10 | 3000 | 9.22 | 7 | |
| YH-22 | 22 | 10 | 0.254 | 6 | 1800 | 5.53 | 10 | |
| YH-25 | 25 | 10 | 0.254 | 8 | 2400 | 9.53 | 10 | |
| YH-25 | 25 | 10 | 0.254 | 10 | 3000 | 11.91 | 7 | |
| YH-25 | 25 | 10 | 0.254 | 20 | 6000 | 23.81 | 5 | |
| Also supply copper layer thickness 0.33mm,0.5mm and 1.0mm | ||||||||
| Also supply any length shorter than 6000mm | ||||||||
Description:

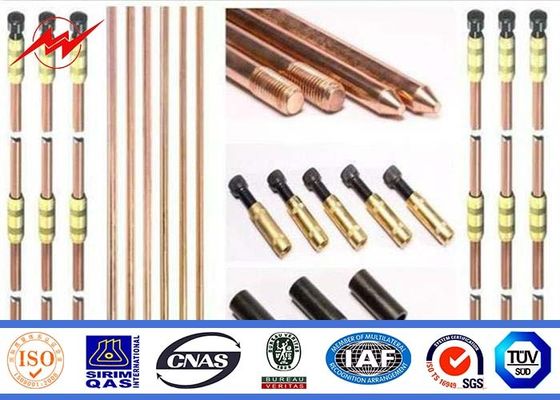

The counter bored couplings are made from high copper content alloy, earth rod,commercial brass is not used. This again ensures excellent corrosion resistance and high strength.
| Item Number | copper weld steel ground rod |
| Copper layer thickness | >=0.254mm |
| Tensile strength | >=600Nm/mm2 |
| Straightness error | <=1mm/m |
| Service life | >=50years |
| Function | Used in grounding and lightning system |
| Type | Threaded or flat or pointed |
| Plasticity of copper layer | No crack under U bent |
| Available service mode | OEM;ODM |
| Certificate | CE,UL467,ISO9001:2008 |
Packaging & Shipping:
5pcs/bundle 10pcs/bundle Nylon strip-Weave strip-Iron pallet or wooden case-Container 3 tons per pallets 20 tones per container.
Company introduction:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
