تفاصيل المنتج:
شروط الدفع والشحن:
|
| Product Name: | 25FT Electrical Power Galvanized Steel Pole for 110kv transmission | welding standard: | AWS D1.1 |
|---|---|---|---|
| galvanization standard: | ASTM A123 | certificate: | ISO 9001 |
| colar: | any | tolerance: | +/-2% |
| تسليط الضوء: | steel transmission poles,power line pole,power line pole |
||
25FT Electrical Power Galvanized Steel Pole for 110kv transmission
|
Power |
10 KV ~550 KV |
|
Safety Factor |
Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Marks |
Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required. |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode . |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
160 Km/Hour |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Length of per section |
Within 14m once forming without slip joint |
|
Welding |
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
|
Thickness |
1 mm to 30 mm |
|
Production Process |
Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
|
Packages |

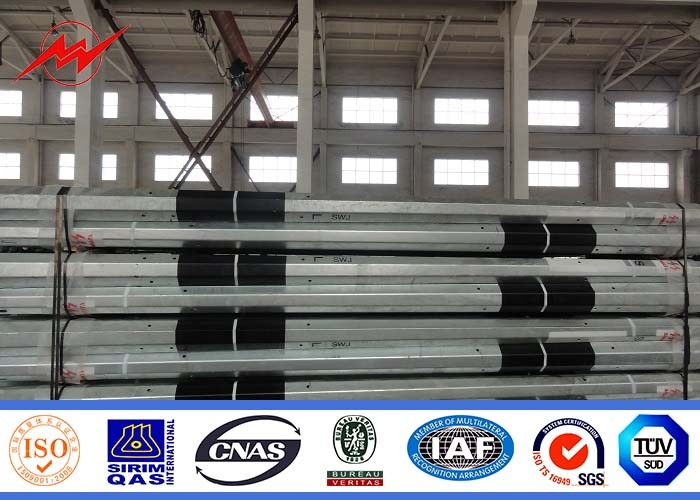

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Upright stanchion and its main components should meet the standard requirements , the surface should be smooth and welding flat , smooth , solid and reliable . No holes ,welding slag, cold solder joint and weld defects .
Pole and its main components with mine-protected.
Lamps' non - charged metal form an overall through the bolt of shell connection with earth wire.
Description:
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on
Project:
We have completed many big and important project all over the world and win the trust of our client.
