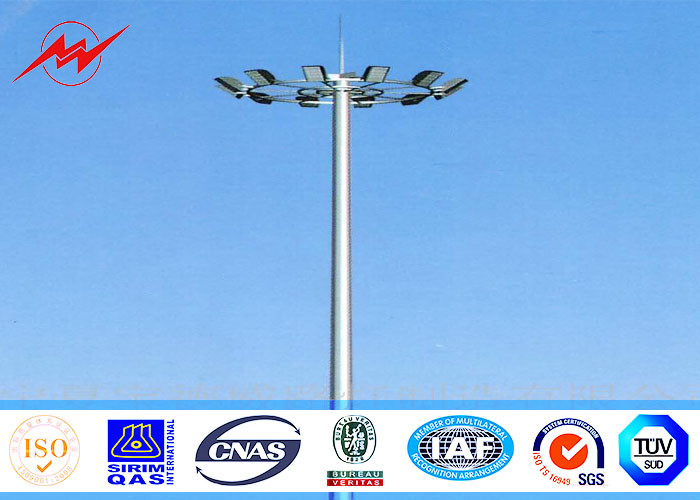

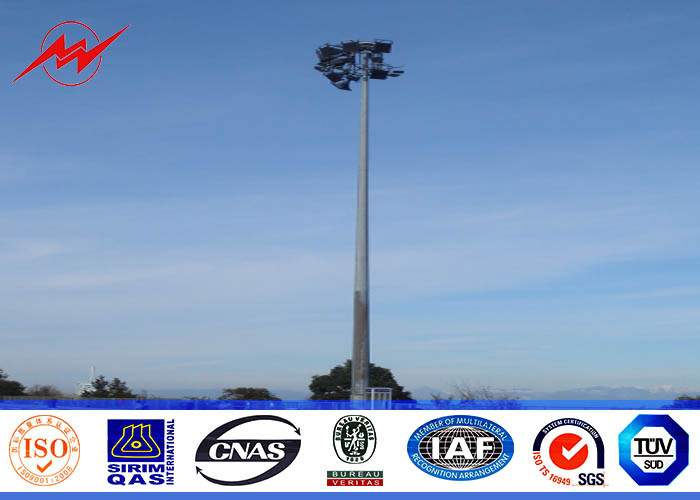

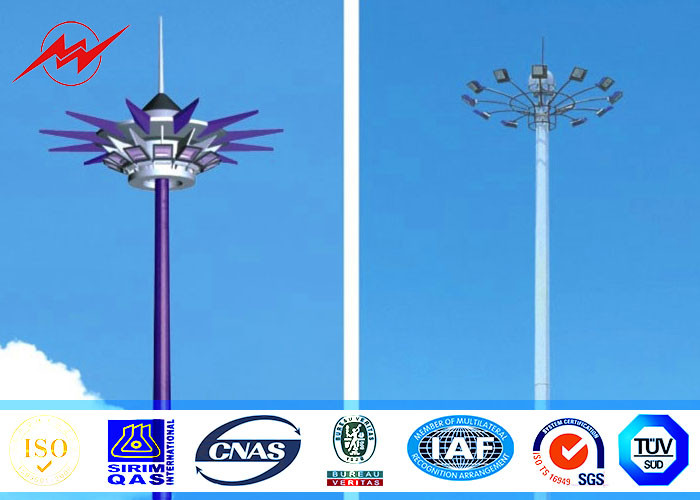

Outdoor 50m Galvanized three sections High Mast Pole with winch for Oil gas station lighting
High mast lighting is the most efficient method of lighting large areas with the minimum number of obstructions.
8-20 sided polygonal continuously tapered cross section
Unique gravitational self-latching and unlatching system
Proven double drum winch and winch motor
Heavily reinforced door opening to prevent buckling
Anti-vandalism door lock
Applications
1) Main Juction
2) Highways
3) Street Road
4) Storage Yard
5) Area Lighting
6) Party Plot
Quick Product Description-High Mast Lighting Pole
| Item | 50 MTR |
|---|---|
| Material Construction | Q345(Gr50) |
| Cross section of mast in polygon((No. of Sides) | dodecagon,hexadecagon |
| Thickness | 4mm,6mm,8mm,10mm or customized design |
| Individual Section’s Length | 8833mm |
| Base & Top dia (OAF) | 485/200mm |
| Thickness of galvanization(Average) | 86 Microns |
| Size of opening door at base | 360 x 1400 mm |
| Size of base plate diameter | 685 mm |
| Size of base plate thickness | 32 mm |
| Number of foundation bolts | 12 |
| Bolt diameter | 28 mm |
ACCESSORIES
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.

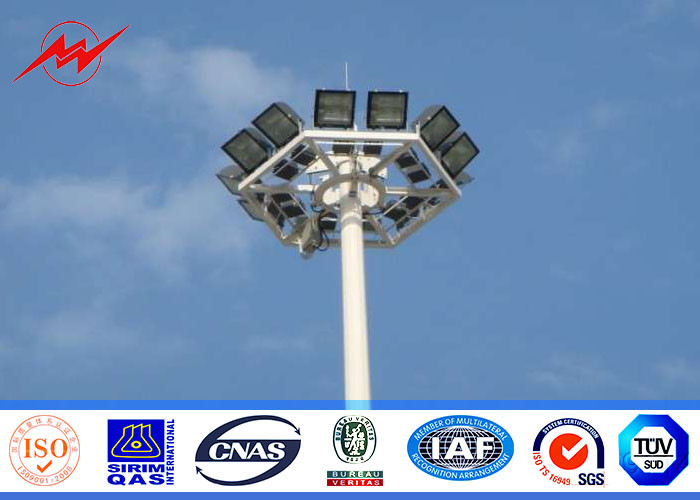

LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
Application
Truck and bus terminals
railyards
ship docks
ferry terminals
airports
prisons
industrial and commercial sites
international borders
parking lots
