Specifications

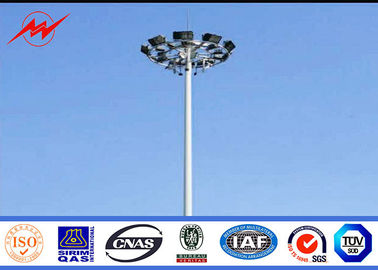

25m polygonal high mast pole for parking light with lifting system. High mast light using high thermal conductivity material and independent heat-sink per LED chip become an effective solution to heat problems then LED light decline can be reduced to a minimum making lamp life more than 80.000 hours. LED models availability up to 1100W let users to replace from 2000W to 3000W HPS or MH HID lamps with more than 85% energy saving and 200% maintenance costs savings. So Return of Investment (R.O.I) is much less than one year making this technology "mandatory" for large-scale outdoor high poles applications.
Using also the long life and high reliable Mean-Well power supply we have made a breakthrough. Use this design the power life has been as high as 65,000 hours or more, which ensure the reliability and stability of the total lighting system.
Using optical grade PMMA lens with several Beam angle options we also can reduce the light loss and increase the effective illumination distance up to 300 m.
IP67 protection grade is reached handling the product waterproof by the method of single lamp seal and sealed combining, ensure the water resistance of the lamp while meet the thermal conditions, making the lamp more secure, more reliable.
|
Lamp &Luminaire |
Projector generally to be applied with safety grade IP65 Luminaire with high pressure |
|
Lifting system |
Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute Euqiped e; |
|
Electric appliance |
Electric appliance box to be be the holde of the pole ,lifting operation could be 5 meter |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode . |
Types
The high mast light have different types, we can arrange all the light to aim in one direction or arranged in a circle.
Also it can use the lifting system or fixed ladder, you can choose a better one.
Inspection:
To assure our products qualified ,we take steps as follows :
