تفاصيل المنتج:
شروط الدفع والشحن:
|
| Product Name: | High Mast Poles | Application: | Plaza Lighting |
|---|---|---|---|
| Wind Speed: | 30m/s | Galvanization Thickness: | Average 86μm |
| Thickness: | 1 mm to 30 mm | Warranty: | 15 years |
| تسليط الضوء: | high mast lighting pole,Park Light pole,Park Light pole |
||

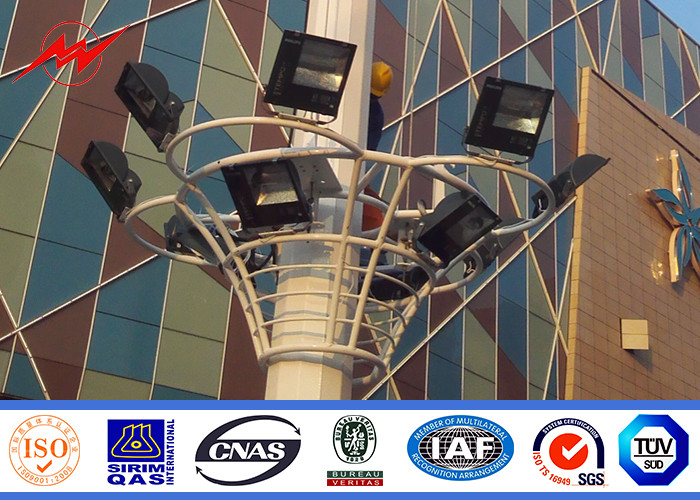

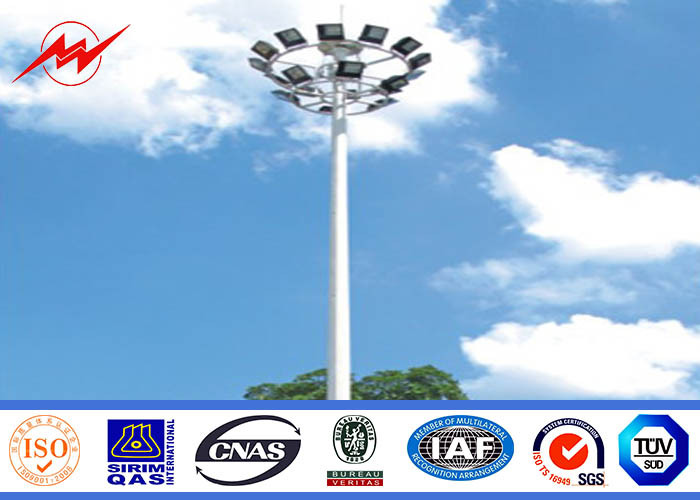

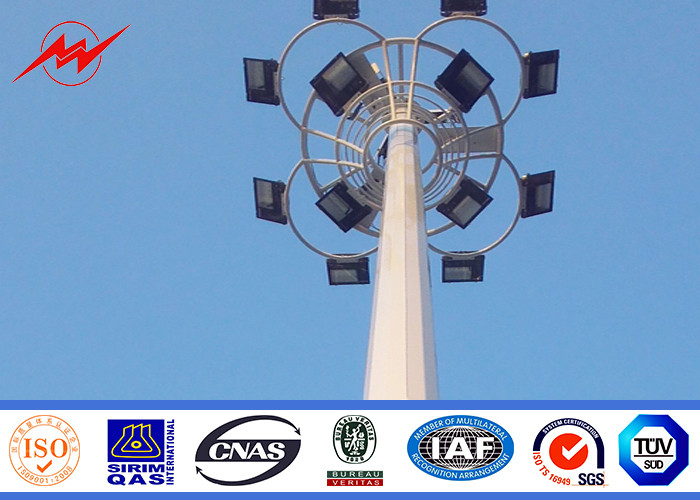

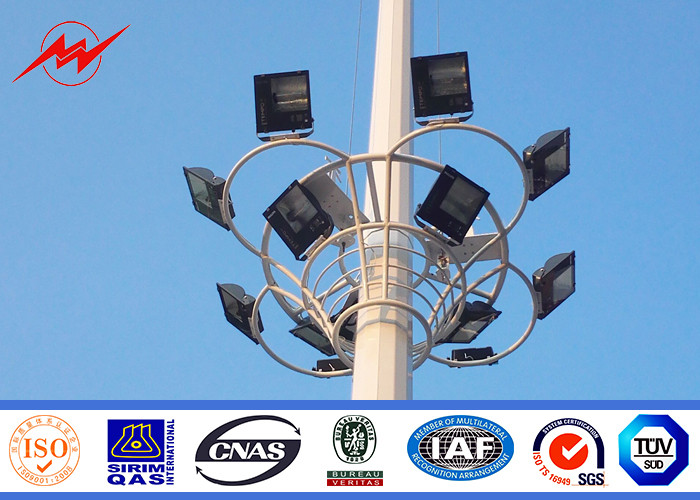

Powder Coating Flanged 20m High Mast Poles with 12 Lamps Wind Speed 30m/s
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Feature:
Special designed for stadium to provide high-power, large-area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for installation and maintenance purposes
Light source :400w-1000w sodium light
Specifications:
|
Place of origin |
China |
|
Material |
SteelQ235,Q345 |
|
Application |
Garden, Square, Street, Stadium etc. |
|
Pole’s height |
25m-40m or as customer’s requirement |
|
Shape of pole |
Tapered Round, Shafts are made of steel sheet that folded into required shape and welded by automatic welding machine |
|
Brackets/ Arm |
As per customer’s requirement |
|
Wall thickness |
2.5mm to 20mm |
|
Welding |
Using automatic internal and external double welding makes the welding beautiful in shape. And confirms with international welding standard. . |
|
Base plate mounted |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
|
Ground mounted |
The length buried underground as per customer’s requirement. |
|
Galvanizing |
Hot dip galvanization with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
|
Powder coating |
Pure polyester powder painting, color is optional according to RAL color standard. |
|
Jointing |
Jointing of pole with insert mode, face to face joint mode . Every lighting pole has a unique code. All sections belonging to one pole have the same code, so it’s easy to assembly. |
|
Wind Resistance |
Against wind pressure of 160Km/h |
|
Earthquake Resistance |
Against earthquake of 8 grade |
|
Quality Control |
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery. |
|
Certificates |
ISO9001:2008 etc. |
Application:
|
Plaza High Mast Lighting pole Airport High Mast Lighting pole Highway High Mast Lighting pole Storage-yard High Mast Lighting pole Industrial-plant High Mast Lighting pole |
Park High Mast Lighting tower Dock High Mast Lighting tower Stadiums High Mast Lighting tower Overpass High Mast Lighting tower Toll-station High Mast Lighting tower |
Standard:
Electric box protection level: IP23
Lamp protection level: IP54
Installation:
1.high-pressure sodium lamp with external ballast and Triggers installed in light tray.
2.when replacing or repairing light and other electrical appliances, you should use special wrench to open it.
3.control box installed at the poles or the lower part of the poles
