11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h

40 HQ
MOQ
قابل للتفاوض
السعر
11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
يكتب: قطب مستقيم ، قطب شد ، عمود دوران
المعالجة السطحية: تراجع الساخنة المجلفن
سماكة: 1 مم إلى 30 مم
التجميع البصري لتركيبات الإضاءة: IP 65
تقارب الأبعاد: + - 2٪
سرعة الرياح: 160 كم / ساعة ، 30 م / ث
إبراز:

ISO 9001 Certified Electric Power Pole,IP 65 Rated Utility Power Pole,High Wind Speed Steel Power Pole

,

IP 65 Rated Utility Power Pole

,

High Wind Speed Steel Power Pole

معلومات اساسية
مكان المنشأ: الصين
اسم العلامة التجارية: Milky Way
إصدار الشهادات: ISO, BV,
رقم الموديل: أعمدة توزيع فائدة الفولاذ المجلفن متعددة الجوانب للمشروع الكهربائي
شروط الدفع والشحن
تفاصيل التغليف: حسب طلب العميل
وقت التسليم: عادة بعد أسبوعين من التأكيد
شروط الدفع: ر/ر
القدرة على العرض: 300 قطعة قطب في اليوم
منتوج وصف
11KV 38KV Hot Dip Galvanized Electric Power Pole

High tensile strength octagonal utility poles with flaw testing and ISO 9001 certification.

Product Specifications
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length per section Within 14m once forming without slip joint
Welding Passed flaw testing. Internal and external double welding meets AWS (American Welding Society) D 1.1 standard

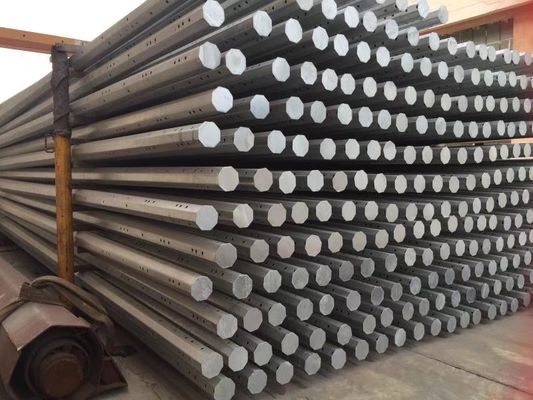

11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h 0
Production Process

Our advanced production line includes bending calibration machines, hydraulic plate shears, slitting machines, 208T hydraulic straighteners, and other specialized equipment to ensure high-quality steel poles.

The fabrication process includes:

  • Plate cutting and bending
  • Forming and automatic welding
  • Drill holes and pre-galvanizing quality checks
  • Hot dip galvanizing and powder coating
  • Final quality inspection according to client requirements
Key Features
  • Custom designs available for various pole types (lighting, electric, traffic, flag poles)
  • Materials: Q235-Q460 hot rolled coil, ASTM573 GR65/GR50, SS400/SS490, ST52-3
  • Hot dip galvanized per ASTM A123 or client specifications
  • Single section lengths up to 16 meters
  • Thickness range: 1mm to 22mm
  • Multiple shapes: polygonal (6-16 sides) or round tapered
  • Easy installation and maintenance

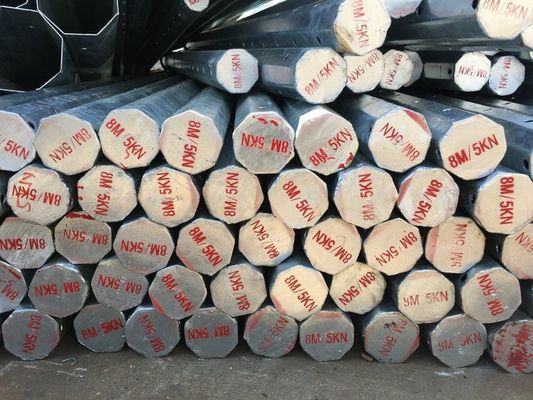

11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h 1
Our Services
  • 24-hour response to inquiries
  • English-speaking technical support
  • Custom designs (UEM&UBM welcome)
  • Engineer-developed solutions
  • Distributor discounts and sales protection
  • 11+ years manufacturing experience
  • Sample availability for large orders
  • Quality materials and production processes

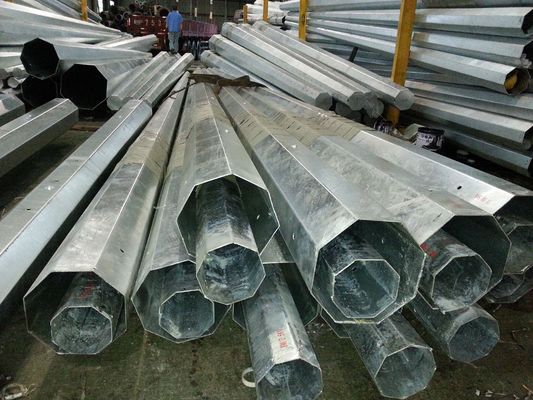

11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h 2
