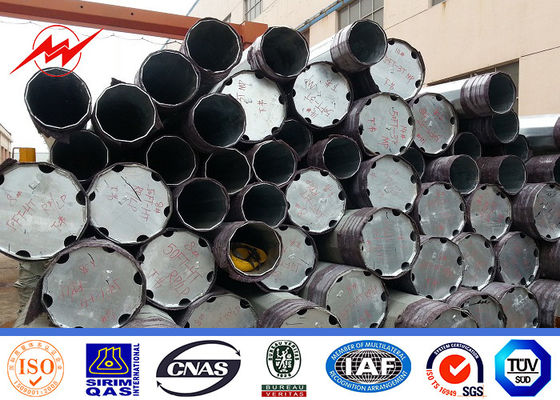

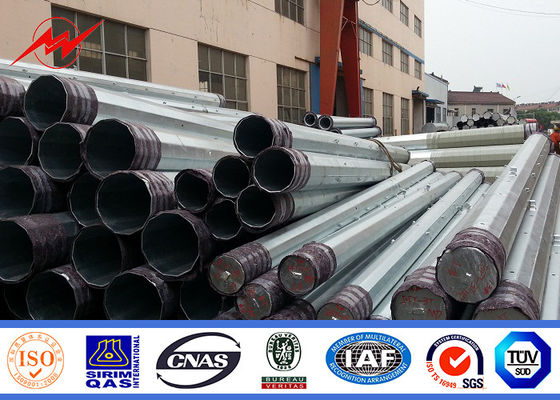

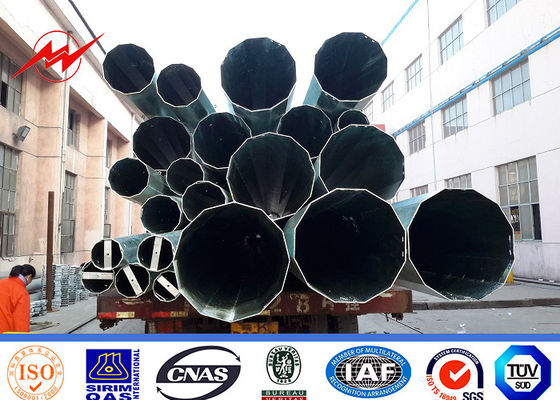

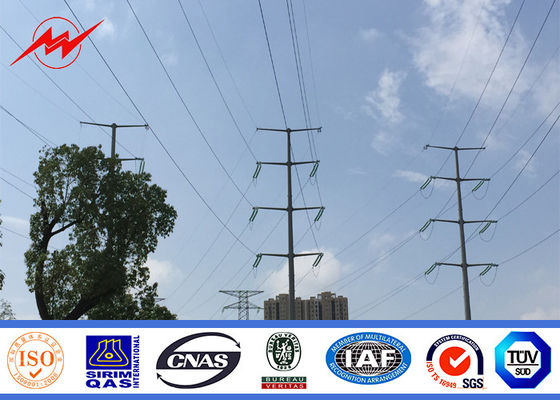

Double Circuit 12M 10KN 12 sides Electrical Steel Utility Poles for Power distribution
metal utility poles
,electrical utility poles
Double Circuit 12M 10KN 12 sides Electrical Steel Utility Poles for Power distribution
Specifications:
| Height | From 9 meter to 100 meter |
| Suit for | Electric Power Transmission and Distribution |
| Shape | Polygonal or Conical |
| Material |
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400 |
| Power Capacity | 10kV to 220kV |
| Tolerance of the dimension | According to client’s requirement. |
| Surface treatment | Hot dip galvanized Following ASTM A 123, or any other standard by client required. |
| Joint of Poles | Slip joint, flanged connected |
| Standard | ISO 9001:2008 |
| Length of per section | Within 14 meter once forming |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Thickness | 1 mm to 36mm |
| Production Process | Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper or according to client’s request. |
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.
Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm
Company Introduction:
After 20 years of development, our company products are exported to overseas. Pakistan, Germany, Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales, which made us become one of the leading export enterprises in china.
