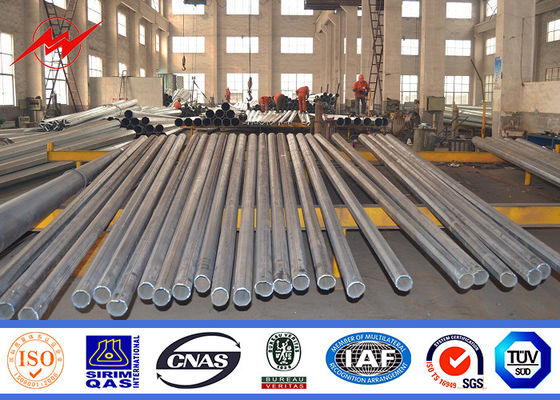

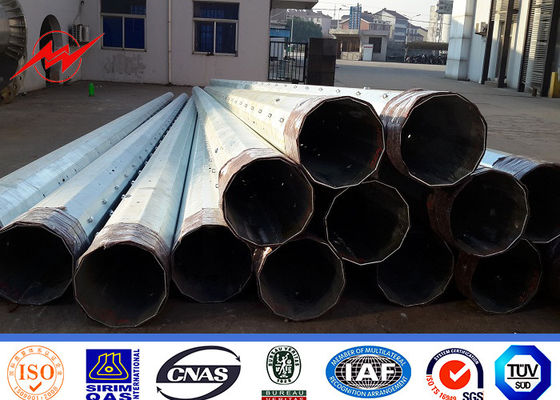

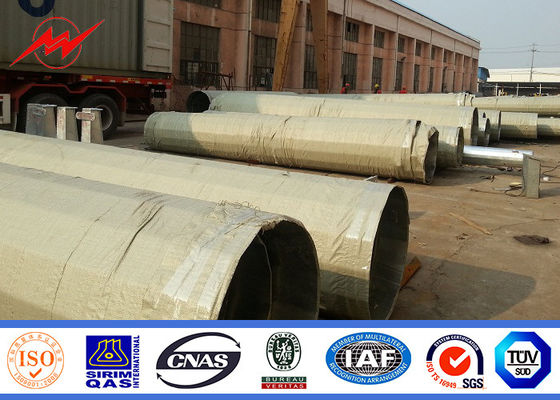

Octagonal 110KV Galvanized Steel Electric Utility Pole with Bitumen
Specifications:
| Philippines NPC Specification | |||||
| ITEM | STEEL POLE | ||||
| TYPE | LENGTH | TIP DIAMETER | BUTT DIAMETER | THICKNESS | |
| (FT) | (MM) | (MM) | (MM) | ||
| 1 | B | 50 | 200 | 370 | 6 |
| 2 | E | 50 | 200 | 585 | 6 |
| 3 | HT | 50 | 200 | 520 | 6 |
| 4 | B | 55 | 200 | 395 | 6 |
| 5 | E | 55 | 200 | 625 | 6 |
| 6 | HT | 55 | 200 | 550 | 6 |
| 7 | B | 60 | 200 | 415 | 6 |
| 8 | C | 60 | 250 | 730 | 6 |
| 9 | D | 60 | 300 | 765 | 7 |
| 10 | E | 60 | 200 | 660 | 6 |
| 11 | HS | 60 | 200 | 400 | 6 |
| 12 | HT | 60 | 200 | 580 | 6 |
| 13 | B | 65 | 200 | 435 | 6 |
| 14 | C | 65 | 250 | 770 | 6 |
| 15 | D | 65 | 300 | 755 | 8 |
| 16 | E | 65 | 200 | 700 | 6 |
| 17 | HT | 65 | 200 | 615 | 6 |
| 18 | B | 70 | 200 | 455 | 6 |
| 19 | C | 70 | 250 | 805 | 6 |
| 20 | D | 70 | 300 | 790 | 8 |
| 21 | E | 70 | 200 | 740 | 6 |
| 22 | HT | 70 | 200 | 645 | 6 |
| 23 | 3T | 70 | 250 | 640 | 6 |
| 24 | 3D | 70 | 300 | 765 | 6 |
| 25 | spare type D | 70 | 300 | 790 | 8 |
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Welding
We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Quality Control
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the
product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection
engineers during every procedure from raw material stage to finished product and delivery.
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
