15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
الخصائص الأساسية
مكان المنشأ:
جيانغسو ، الصين
اسم العلامة التجارية:
MilkyWay
رقم الموديل:
أعمدة كهربائية فولاذية ، قطب كهربائي
تداول العقارات
الحد الأدنى لكمية الطلب:
100
سعر:
$99-120
ملخص المنتج
15m Tapered Steel Utility Power Poles 2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN Product Specifications Type Octagonal NGCP 69KV Galvanized electric steel power pole Application Electricity distribution Shape Conoid, Multi-pyramidal, Columniform, ...
سمات المنتج المخصصة
إبراز
15m Steel Utility Power Pole
,2.75mm Thickness Steel Utility Power Pole
,850kg Load Steel Utility Power Pole
تصنيف التيار:
10-200
الجهد المقنن:
10-220
المعالجة السطحية:
الجلفنة بالغمس الساخن
التسامح البعد:
+ - 2٪
معيار اللحام:
AWS D 1.1.2 تحديث
معيار الجلفنة:
ASTM A 123
القدرة التصنيعية:
300 قطعة في اليوم
مادة:
Q345B/A572 ، Q235B/A36 ، Q460 ، ASTM573 GR65 ، GR50 ، SS400 ، SS490 ، ST52
نطاق الطاقة:
10 كيلو فولت ~ 550 كيلو فولت
عامل السلامة:
8 لإجراء الأسلاك ، 8 لأسلاك التأريض
تحميل الحمل:
300 ~ 1000 كجم يتم تطبيقه على 50 سم من القطب العلوي
سرعة الرياح:
160 كم/ساعة (30 م/ث)
الحد الأدنى من قوة الخضوع:
355 ميجا باسكال
الحد الأدنى من قوة الشد:
490 ميجا باسكال
أقصى قوة سحب:
620 ميجا باسكال
وصف المنتج
مواصفات مفصلة وخصائص

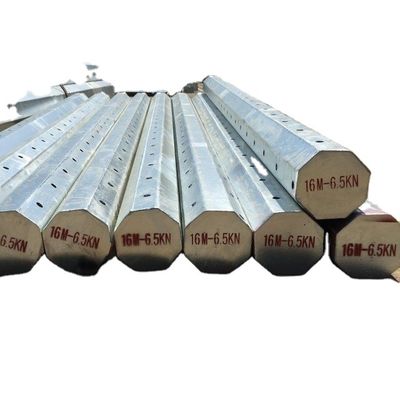

15m Tapered Steel Utility Power Poles
2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN
Product Specifications
| Type | Octagonal NGCP 69KV Galvanized electric steel power pole |
|---|---|
| Application | Electricity distribution |
| Shape | Conoid, Multi-pyramidal, Columniform, Polygonal or Conical |
| Material | Q345B/A572 (minimum yield strength ≥345N/mm²), Q235B/A36 (minimum yield strength ≥235N/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52 |
| Power Rating | 10KV ~550KV |
| Safety Factor | 8 for conducting wire, 8 for grounding wire |
| Design Load | 300~1000kg applied to 50cm from top pole |
| Surface Treatment | Hot dip galvanized (ASTM A 123) or color polyester powder coating |
| Wind Resistance | 160 km/hour (30 m/s) |
| Standards | ISO 9001 |
Production Process
As a BV, ISO, SGS approved supplier in China with over 20 years of experience, we guarantee high-quality steel poles manufactured from qualified materials by professional workers using advanced equipment.
Raw material test → Cutting → Molding/Bending → Welding (longitudinal) → Dimension verification → Flange welding → Hole drilling → Calibration → Deburring → Galvanization/Powder coating/Painting → Recalibration → Threading → Packaging
Material Quality Assurance
All materials are sourced from reputable mill factories. Each shipment includes a mill certificate with stamp and signature. Materials undergo chemical and physical analysis before production to verify strength and composition.
Certifications
Project Examples
Ordering Information
- Price Terms: EXW, FOB, CFR, CIF
- MOQ: 1 set for customized orders
- Payment: 30% deposit by T/T, balance before shipment
- Delivery: Ready within 10 working days after deposit
- Warranty: 30 years
- Surface Treatment: Hot dip galvanization standard
Our Services
Pre-Sales Service
- Inquiry and consulting support
- 24-hour response time
- Factory visits available
After-Sales Service
- Installation training
- Inspection reports and material certificates provided
Packaging & Shipping
| Type | Quantity |
|---|---|
| 40&45FT Electric poles for Philippine Market | 26 Tons/40HQ Containers |
| 35FT Electric poles for Philippine Market | 26 Tons/40HQ Containers |
About Our Company
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and street/road lighting applications. With export experience since 1991, our poles have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
