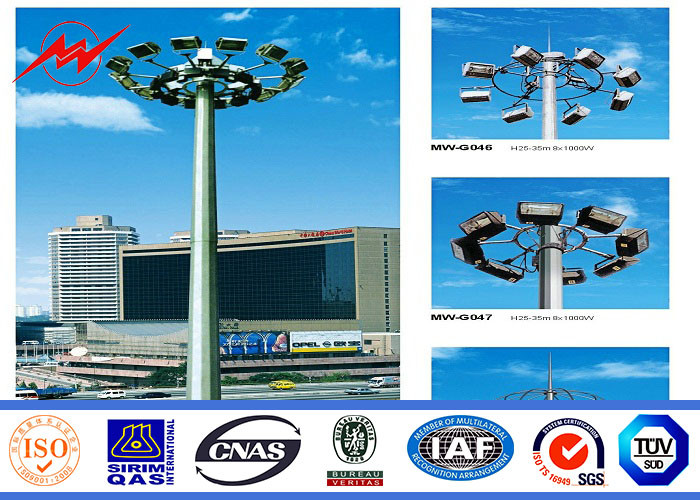

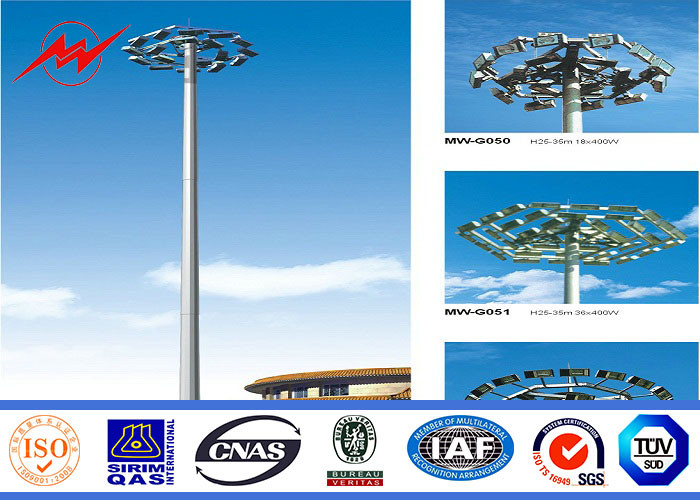

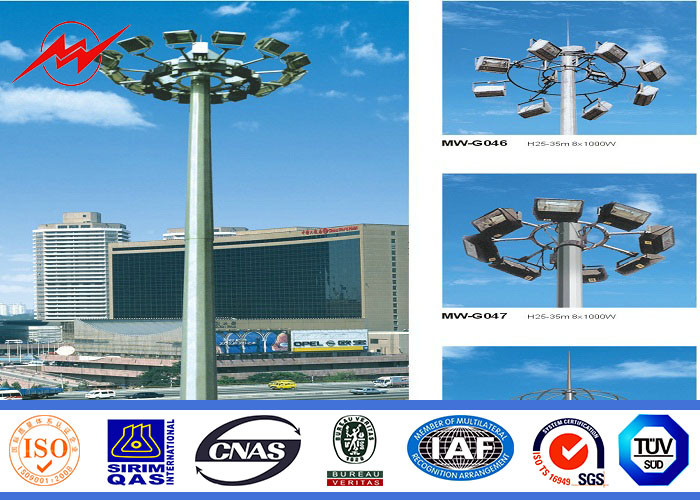

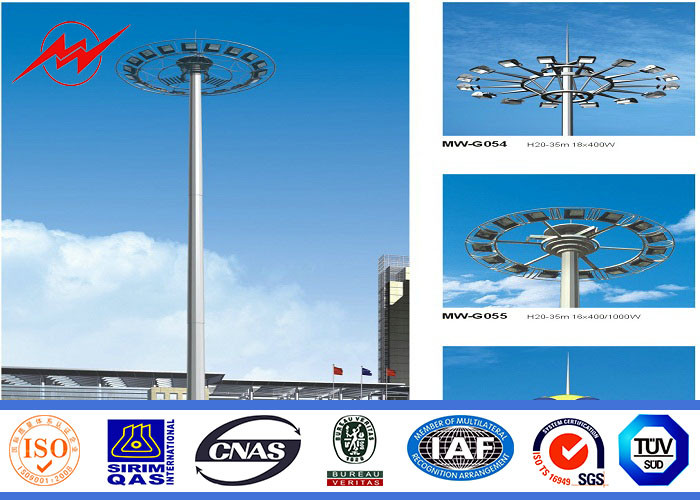

Multisided Powder Coating 40M High Mast Pole with Winch for Park Lighting
Specifications:
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
| Power | 400 W- 5000 W |
| Light panel |
Various figure of slection ,material with hot dip galvanization steel |
| Light Extension | Up to 30 000 m2 |
| Lamp &Luminaire |
Projector generally to be applied with safety grade IP65 |
| Lifting system |
Lifter fixed in the inner of the pole with lifting speed of 3~5 |
| Electric appliance control device |
Electric appliance box to be be the holde of the pole ,lifting operation |
| Surface treatment |
Hot dip galvanized Following ASTM A 123, |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Length of per section | Within 14m once forming without slip joint |
| Welding |
We has past flaw testing.Internal and external double welding makes |
| Thickness | 1 mm to 30 mm |
| Style |
Aerial clog could be installed complied with clients desire to carry |
Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 70μm.
Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm
Application:
Airport ,seaport,plaza,stadium ,square,highway,street way etc
Company Introduction:
Our development is based on quality, which allows us to always be able to stand ahead of the industry. In 1995, because of the introduction of the ISO9001 quality management system, our product quality has been further increased and guaranteed. We have advanced testing equipment and experienced technical engineers. This gives us continuously improve product quality to meet customer needs. Based on product characteristics, we divide the inspection into four phases: raw materials inspection, production process inspection, finished product inspection and regular inspection. Ours Qc have been engaged in quality work for a long time and they consists of our quality deapartment . We implement the ISO9001 completely in during the process of productiong , proposed a concept. " the best way to return customers is to provide high-quality product" !
