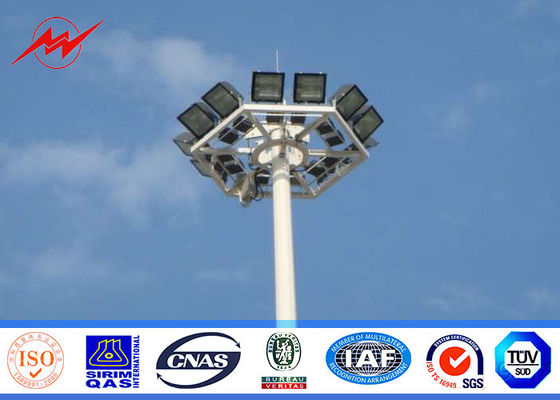

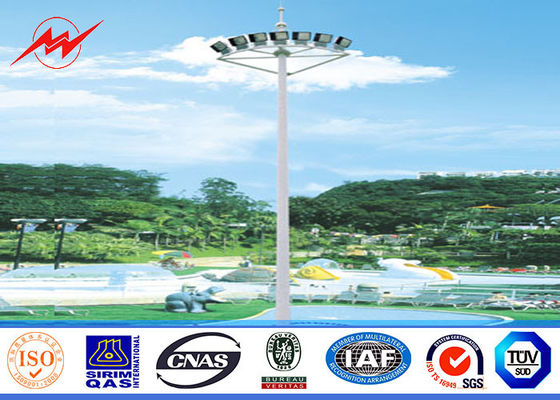

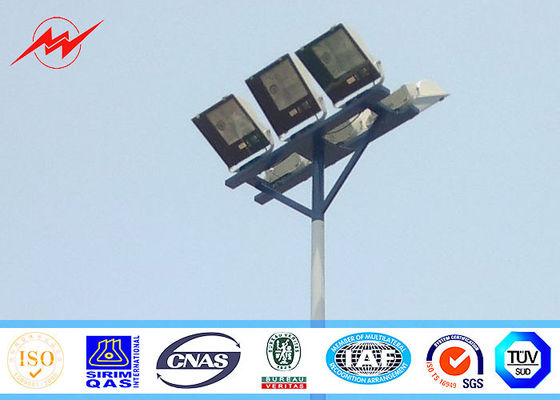

Multisided 30M 24 lights High Mast Pole square light arrangement for seaport application
High mast lighting as a concept in area lighting is being preferred over conventional lighting, especially where large areas are to be illuminated without the need for numerous lighting columns, that under certain circumstances, can be a hazard to movement. This is possible because the high mast lighting system achieves very large space to height ratios.
Quick Product Description-High Mast Lighting Pole
| Item | 15 MTR | 13 MTR |
|---|---|---|
| Material Construction | Q345(Gr50) | Q345(Gr50) |
| No. of Longitudinal Welds | Single | Single |
| Cross section of mast in polygon((No. of Sides) | Octagonal,dodecagon,hexadecagon | Octagonal,dodecagon,hexadecagon |
| Thickness | Octagonal,dodecagon,hexadecagon | Octagonal,dodecagon,hexadecagon |
| Individual Section’s Length | 4mm,6mm,8mm,10mm or customized design | 4mm,6mm,8mm,10mm or customized design |
| Base & Top dia (OAF) | 7800mm | 1300mm |
| Thickness of galvanization(Average) | 422/200mm | 360/160mm |
| Size of opening door at base | 360 x 1400 mm | 250 x 1000 mm |
| Size of base plate diameter | 625 mm | 560 mm |
| Size of base plate thickness | 32 mm | 32 mm |
| Number of foundation bolts | 8 | 6 |
| Bolt diameter | 28 mm | 28 mm |
Options:
• The High Mast is available in various length, diameters and hole arrangements.
• Multisided or Tapered round variations.
• The High Mast is available in base plate mounted or direct bury installed.
• All High Masts are hot dip galvanized according to EN 1461, and can be powder coated or painted.
• Additional service doors.
• Pre-drilling for removable safety steps is available.
ACCESSORIES
Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
Description
Milky Way’s single tube, high mast structures can reach heights up to 250 feet, and are adaptable to lowering devices or fixed mounting arrangements. Innovations such as the organization’s low-drag, internally wired fixture platform, which works with round or multi-sided shafts, has made Valmont a top choice for customers needing high-mast lighting towers
