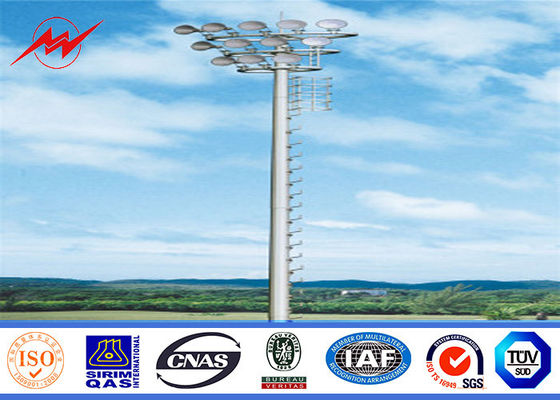

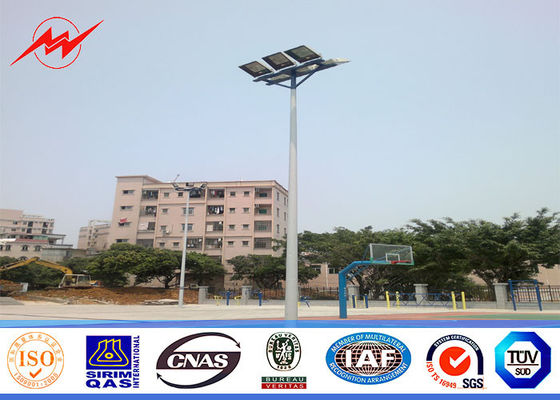

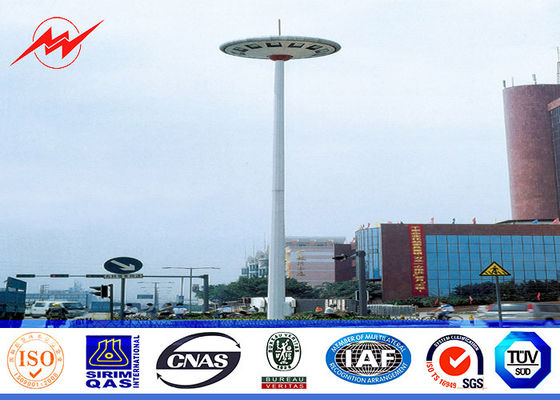

Outdoor 25M Galvanzied High Mast Pole with 6 lights for airport lighting
Stadium lighting masts are designed with fixed head frame for mounting a large concentration of sports lighting luminaries.
The height of the mast and the number of flood lights are based on the lighting design.
Our structural design team has wide experience in designing such masts.
In a space of less than 25 years Transrail Lighting has designed, manufactured and supplied stadium masts to 30 premium projects in India and abroad.
Stadium lighting masts are custom designed based on the lighting design and available site constraints.
Quick Product Description-High Mast Lighting Pole
| Item | 18 MTR | 16 MTR |
|---|---|---|
| Material Construction | Q345(Gr50) | Q345(Gr50) |
| No. of Longitudinal Welds | Single | Single |
| Cross section of mast in polygon((No. of Sides) | Octagonal,dodecagon,hexadecagon | Octagonal,dodecagon,hexadecagon |
| Thickness | 4mm,6mm,8mm,10mm or customized design | Octagonal,dodecagon,hexadecagon |
| Individual Section’s Length | 9375mm | 4mm,6mm,8mm,10mm or customized design |
| Base & Top dia (OAF) | 422/200mm | 8300mm |
| Thickness of galvanization(Average) | 86 Microns | 422/200mm |
| Size of opening door at base | 360 x 1400 mm | 360 x 1400 mm |
| Size of base plate diameter | 625 mm | 625 mm |
| Size of base plate thickness | 32 mm | 32 mm |
| Number of foundation bolts | 8 | 8 |
| Bolt diameter | 28 mm | 28 mm |
ACCESSORIES
Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.
IMPORTANT TECHNICAL FEATURES

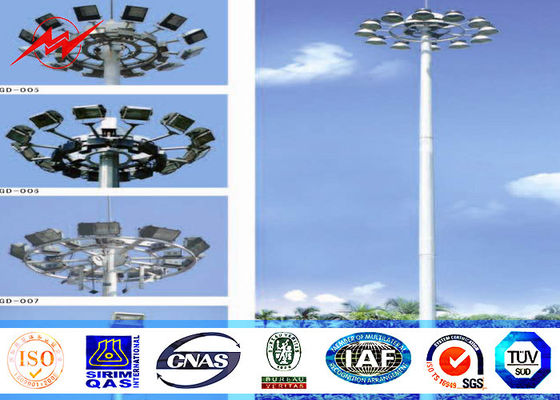

FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
More Products
THE IN-HOUSE FACILITIES INCLUDE:
Illumination design: Equipped to handle optimum designs for all lighting applications like stadiums, traffic junctions, airports, sea ports, container yards, railway marshaling yards, etc.
Civil / Structural design: Masts confirming to various terrains, wind zones, and heights.
Mechanical design: To design the complete raising and lowering systems.
