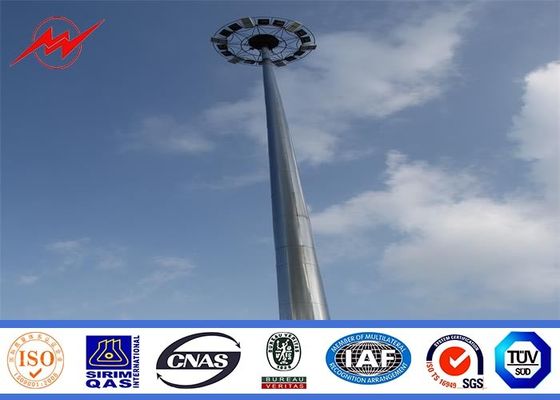

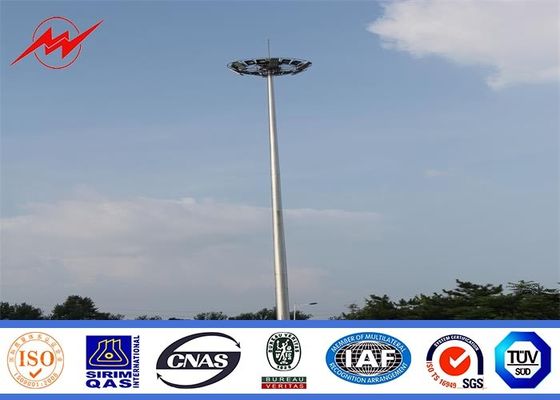

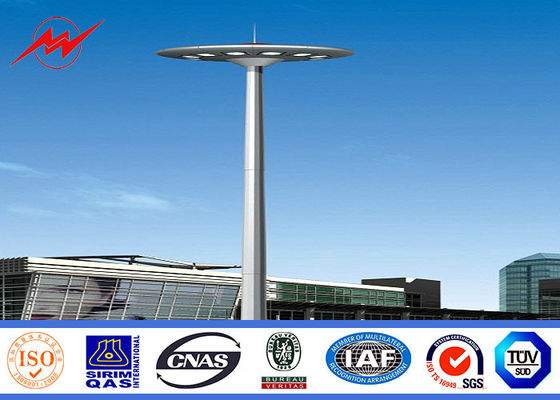

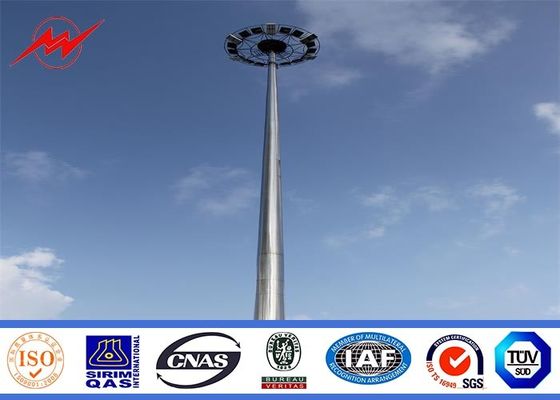

35m Highway High Mast Pole Lamp with 1000w Metal Halide Lamp Auto-Lifting System
Technical Specification
20 sided polygonal continuosly tapered cross section
Headframe at the top shaft will be tilted 10 degrees for floodlights aiming
Fixed platform and service ladder at the top of the shaft for maintenance purpose
Maintenance Cage lifts by hoist unit complete with safety brake to reach the fixed platform
Quick Product Description-High Mast Lighting Pole
| Item | 35 MTR |
|---|---|
| Material Construction | Q345(Gr50) |
| No. of Longitudinal Welds | Single/Double |
| Cross section of mast in polygon((No. of Sides) | Octagonal,dodecagon,hexadecagon |
| Thickness | 4mm,6mm,8mm,10mm or customized design |
| Individual Section’s Length | according to customer desgin |
| Base & Top dia (OAF) | according to customer desgin |
| Thickness of galvanization(Average) | 86 Microns |
| Size of opening door at base | 360 x 1400 mm |
| Size of base plate diameter | 650 mm |
| Size of base plate thickness | 32 mm |
| Number of foundation bolts | 12 |
| Bolt diameter | 28 mm |
High Mast Pole Design
ACCESSORIES
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
Advantages
Stainless steel lowering cables
No strain on lowering cables when system is in the home position
Red indicator discs show when the system is unhooked or in the home position
Lightning rod
All steel components are hot dip galvanized and all coloured components are hot dip galvanized and powder coated
All HMFJ60 systems have a 300kg capacity and can typically hold up to twelve 2000W luminaires
All poles and systems are suitable for wind regions A and B
On site instruction on operation and maintenance
Application
1) Main Juction
2) Highways
3) Street Road
4) Storage Yard
5) Area Lighting
6) Party Plot
