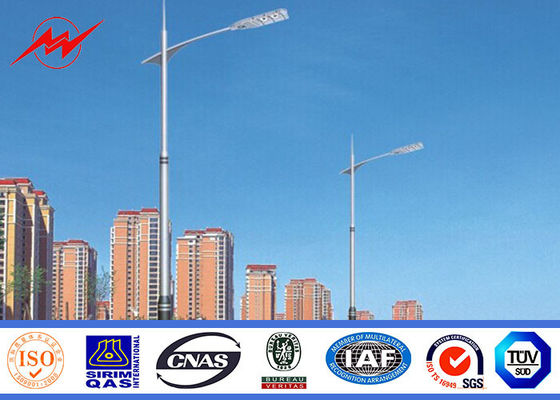

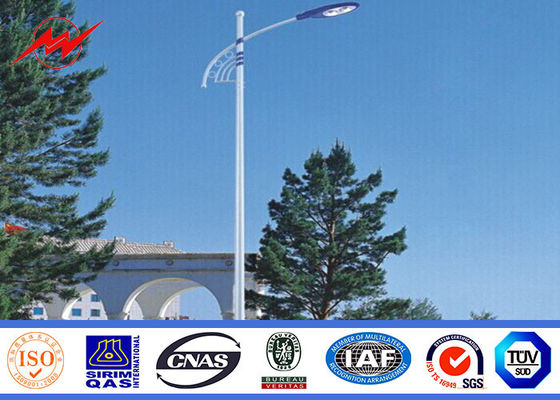

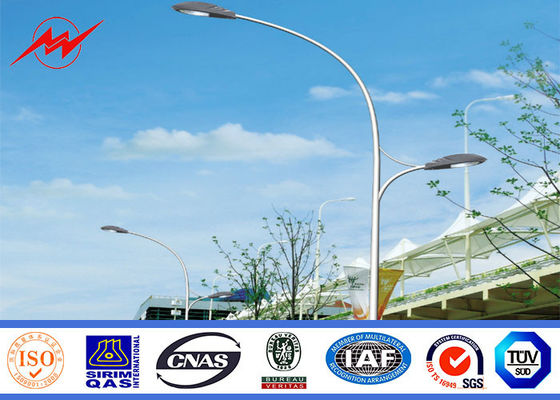

Outdoor Multisided Steel Parking Lot Light Pole with 2M Cross Arm
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Specification:
|
Place of origin |
China |
|
Material |
SteelQ235,Q345 |
|
Application |
Garden, Square, Street, Stadium etc. |
|
Pole’s height |
3m-15m or as customer’s requirement |
|
Shape of pole |
Tapered Round, Shafts are made of steel sheet that folded into required shape and welded by automatic welding machine |
|
Brackets/ Arm |
As per customer’s requirement |
|
Wall thickness |
2.5mm to 20mm |
|
Welding |
Using automatic internal and external double welding makes the welding beautiful in shape. And confirms with international welding standard. . |
|
Base plate mounted |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
|
Ground mounted |
The length buried underground as per customer’s requirement. |
|
Galvanizing |
Hot dip galvanization with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
|
Powder coating |
Pure polyester powder painting, color is optional according to RAL color standard. |
|
Jointing |
Jointing of pole with insert mode, face to face joint mode . Every lighting pole has a unique code. All sections belonging to one pole have the same code, so it’s easy to assembly. |
|
Wind Resistance |
Against wind pressure of 160Km/h |
|
Earthquake Resistance |
Against earthquake of 8 grade |
|
Quality Control |
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery. |
|
Certificates |
ISO9001:2008 etc. |
Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
